Forward And Reverse Image Profile Projector Machine Contour Projection Measurement
Forward And Reverse Image Profile Projector Machine Contour Projection Measurement
Forward And Reverse Image Profile Projector Machine Contour Projection Measurement
Forward And Reverse Image Profile Projector Machine Contour Projection Measurement
Forward And Reverse Image Profile Projector Machine Contour Projection Measurement
Forward And Reverse Image Profile Projector Machine Contour Projection Measurement
Specifications
Model Number :
CPJ-3025
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Price :
Negotiable
Packaging Details :
Wooden Package
Delivery Time :
5-8 work days
Supply Ability :
200
Outside size :
810×780×1120
weight :
180KG
Power :
110V/220V(AC), 50/60Hz
X stroke(mm) :
250
Y stroke(mm) :
150
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Description

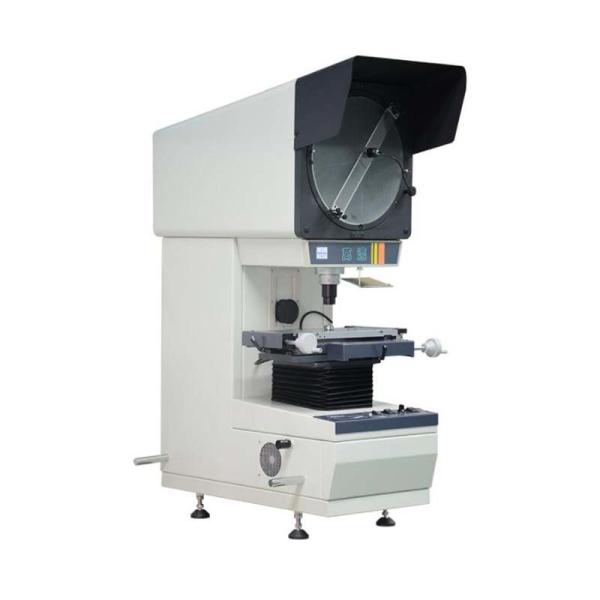

CPJ-3025 Forward and Reverse Image Profile Projector Contour Projection Measurement

1. Features
The digital measuring projector features a compact structure, a simple and beautiful appearance, economic practicality, and reliable performance. It can directly and efficiently measure and compare workpieces, including stamping parts, gears, threads, tools, etc. The equipment is widely used in industries such as machinery manufacturing, electronics, molds, and instruments.

2. Technical parameters

Model

CPJ-3025A/AZ

Work platform

Metal platform size(mm)

450×280

Glass table size(mm)

306×196

X stroke(mm)

250

Y stroke(mm)

150

Z stroke
(adjust forcus)(mm)

100(focus adjustable)

Equipment accuracy

3+L/75

X,YCoordinate digital display resolution:0.5um

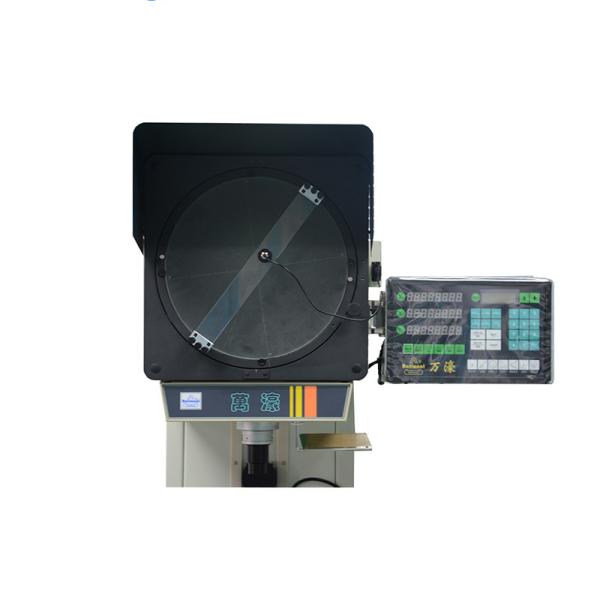

Projecto screen

Projector screen size(mm):Ø312,use range > Ø300 (It's engraved with meters)

Projection rotation range:0~360o

Rotation Angle digital resolution:1’or 0.01o

objective

magnification: 10X(optional) 20X(optional) 50X(optional) 100X(optional)

Object squared field of view(mm) Ø30 Ø15 Ø6 Ø3

Object side working distance(mm) 77.7 44.3 38.4 25.3

data processing system

Dc-3000 Multi-function data processing system, full English display can do multi-point sampling, coordinate rotation, point, line, distance, Angle detection

illumination

Both the transmitted and reflected light sources are 24V and 150W halogen lamps

Power

110V/220V(AC),50/60Hz,400W

Cooling methods

Forced air cooling (3-axis fan)

Outside size

810×780×1120

weight

unit:kg

180KG
