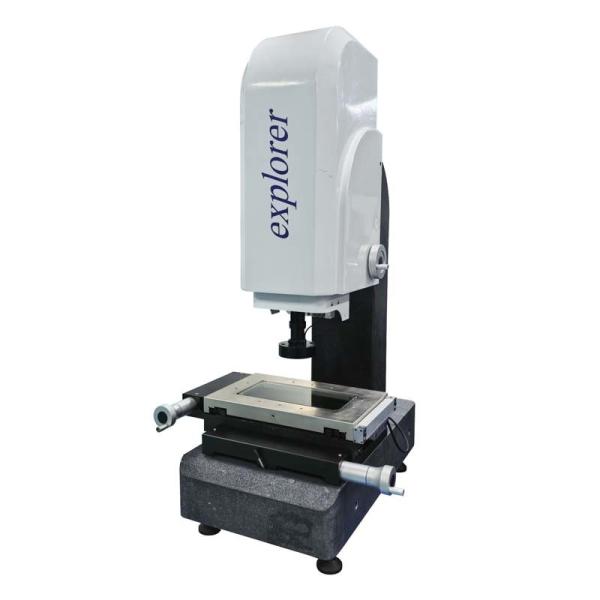

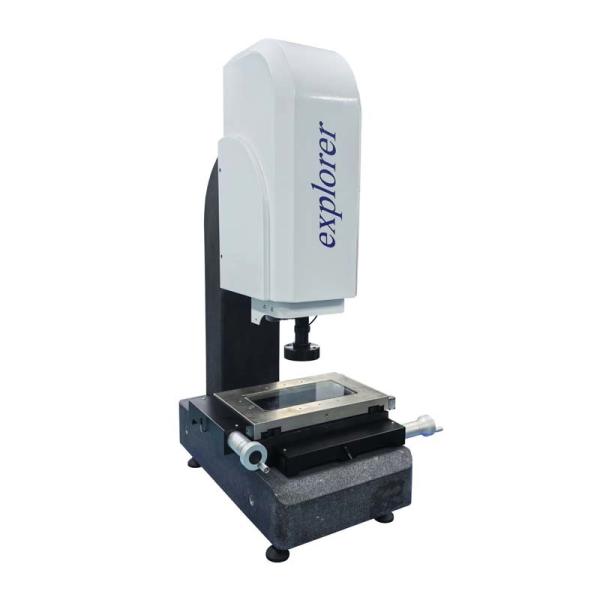

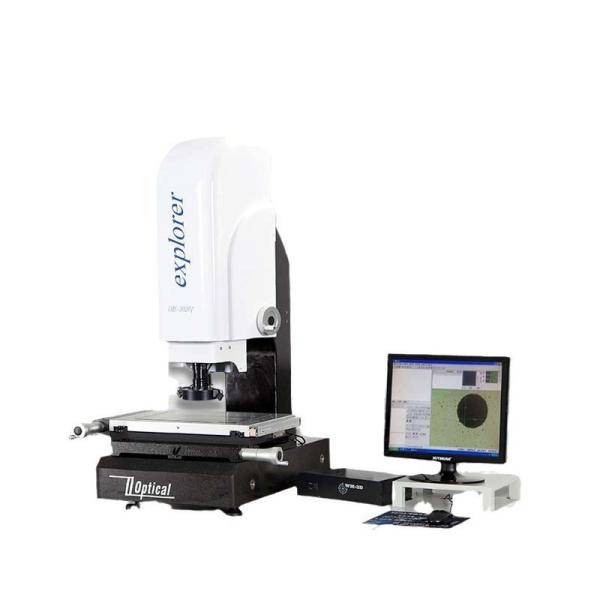

Manual Image Measuring Instrument 2D Coordinate Measurement Machine
Manual Image Measuring Instrument 2D Coordinate Measurement Machine
Manual Image Measuring Instrument 2D Coordinate Measurement Machine
Manual Image Measuring Instrument 2D Coordinate Measurement Machine
Manual Image Measuring Instrument 2D Coordinate Measurement Machine
Manual Image Measuring Instrument 2D Coordinate Measurement Machine
Specifications
Model Number :
VMS-2010
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Supply Ability :
200
External size :
500*700*1100mm
Weight(KG) :
170
Capacity(KG) :
20
Power :
220V, 50HZ, 10A
Vibration :
<0.002mm/s, <15HZ
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Certification :
ISO ASTM CE
Description
Manual Image Measuring Instrument for 2D Coordinate Measurement
1. Use
A highly configurable, low cost measuring device based on 2D coordinate measurement including points, lines, circles, arcs, rectangles and other geometric elements as well as lengths, angles, contour shapes, and surface shapes of parts. Three-dimensional auxiliary measurements such as step height, hole depth, surface flatness, etc. are also possible. Widely used in machinery, electronics, plastics, hardware and other industries.

2. Product Features
1. High-precision and high-strength machine: 00 marble base / column/table, high precision and good stability.
2. XYZ three-axis imported precision V-guide / imported optical axis drive system, long service life and good stability.
3. High precision grating ruler 0.5 μm.
4. WM continuous zoom optical lens, different frames, different magnification, without zoom correction.
5. HD Japanese SONY CCD camera, high quality measuring screen.
6. Auxiliary focusing measurement, optical measuring altitude and flatness, and can be equipped with the British RENISHAW contact probe.
7. Surface lights, LED contour lights, coaxial lights. Select to match programmable three-ring, eight-surface lights.
8. The laser pointer indicates the measuring position, quick positioning and easy measurement.
9. Can match foot switch, easy to operate at any place.
10. Provide a wide range of models: such as VMS-2010, VMS-3020, VMS-4030, VMS-5040.


3. Technical Specification

Model

Range

External size

Weight(KG)

Capacity(KG)

VMS-2010

200*100*200mm

500*700*1100mm

170

20

Accuracy

XY Axis

Z Axis

3um+L/200

L, the measured length

Speed

XY Axis

Z Axis

Manual

Manual

Operating environment

Temperature:20℃±2℃

Temperature variation:<2℃/hr

Humidity:50-60%

Vibration:<0.002mm/s, <15HZ

Power:220V, 50HZ, 10A

Configuration list

Number

Item

Description

Technical specification

1

Mechanics

Machine

Video measuring system

2

Structure

00 Leveljinan marble

3

Ruler

XYaxis 0.5um resolution

4

Guide

V style Cross guide

5

Rocker

XYZ 3 axis rocker ,bold is out of shape not easily

6

Optical system

CCD

1/3 CCD colorful industrial camera

7

Lens

change zoom lens

8

Multiplying power

Optical magnification 0.7-4.5X

Video magnification 30-230x

9

Surface light

3 rings 8octants,LED lighting

10

Profile light

LED lighting

11

Software system

Measuring software

WM-3D Independent made system

12

Control system

WM Control system

Independently reached and devoloped

13

Accessories

Computer

Industrial computer or brand computer

14

Worktable

Specially made worktable

15

Certification

Qualified by WM

4. Software introduction
WM - ME 3 d measurement software main functions are as follows:
(1) Measuring element
Can measure the 12 kinds of elements, such as point, line, circle, arc, ellipse, rectangle, trough, o-rings, distance, Angle and open cloud line, closed cloud line).
Features:
Measurement method variety (automatic discriminant, mining point measurement, comparison, tolerance contrast measurement. Preset element), can satisfy differentcustomers' needs, greatly improve the ease of use and measuring precision.
There are many single point sampling method: the mouse point, cross line edge point, amplified by points.
Closed to measure the perimeter of the cloud line, area and center of gravity, the use ofthree interpolation algorithm, for the most accurate measuring method of cloud line.
Can undertake box to choose measurement more round, fast and accuratemeasurement of multiple round at a time.
The measured data can be saved as a DXF file, or. BMP images, and the user programformat.
(2) Macro measurement function
Macro measurement function is to associate some measurements and commands with buttons. Clicking the button to start the macro measurement function, the macro measurement function automatically completes the construction movement, reducing the number of user mouse operations and improving work efficiency.
Note: Macro measurement is different from the user program function, macro measurement does not record the source, coordinate position measurement conditions and so on. Run the manual function, also do not move the table, polishing, etc. 16 The software provides a set of macro measurement function, the user can edit the macro measurement function button icon. The macro function interface is as follows:
(3) Automatic capture measurement
Click, and then use the mouse to circle to the edge of the workpiece, can automatically find edgeline, circle or arc. The following figure, will automatically be framed round.
(4) element structure:
Elements to construct powerful. MEGA structure provide 10 kinds of 2 d elements method ("translation ", "rotation" and "extraction", "combination", "parallel" and "vertical", "mirror", "symmetry", "intersection", "tangent") tectonic geometry elements. MEGA elements of 2 d structure makes ithard for users to easily cope with some measure of elements, so as to improve the work efficiency.
(5) Autofocus function
Provide a precise focus and shooting function and through measuring height value focus, or thecurrent is obtained by af point coordinates.
(6) Auxiliary dimmer
That move light indicator, instructs the user when is the best time to light intensity, avoid themeasurement error brought by the due to the lighting, improve the measuring accuracy andmeasuring efficiency.
(7)Graphics functions:
Have perfect image processing and display function (local amplification, scaling, translation, window display, full screen), makes the measurement more image, intuitive, easy to user operation. Rolling middle mouse button, zoom in on graphics, hold key notto put in the moving the mouse, the mobile graphics.
(8) Tagging function:
Can directly in the plot and the elements of the image graphics on the Angle,distance, distance of X direction and Y direction distance and radius of circle (arc),round (arc) diameter, arc length. The user be clear at a glance.
Image window and drawing window can synchronize display measurementelements and annotations. Images can be hidden window drawing graphics, cansynchronize to delete, select image window and 2 d graphics window graphic elements. Below to indicate two round X direction and Y direction distance, and the radius of thecircle.
(9) Tolerance
Improved dimensional tolerances for computational power. Default tolerance band can be set.
Shape tolerance capability in line with national standards can be calculated for shape tolerance, true straightness, roundness, and arc roundness.
Positional tolerance calculation includes positional degree, parallelism, perpendicularity, slope and concentricity, symmetry. Out of tolerance range alarm with red warning.
The Round Dimension Tolerance Input dialog box is shown below.
(10) DXF file import programming
After importing the DXF file, the software will prompt the user operation step by step, when establishthe workpiece coordinate system, the DXF file user program to complete the import. The softwarewill automatically generate value in the name of the element name. When running a user program, will produce DXF file and image texture contrast.
(11) Reporting features
Measurement data can be exported to Excel, Word, AutoCAD, TXT.
When running the user program, but will import data in rows or columns way to Excel.
Import to the report, they can choose whether to export the graphics and bitmap.
Pictures, below is the same workpiece measurement after five times, automatic export to Excel inthe report.
(12) Online SPC functions
MEGA 2 d provide independent, professional SPC software, for subsequentprocessing of measured data.
Software and SPC software seamless connection, measurement software aftercompletion of measurement data imported into the SPC database automatically, without human input again, all the control limits set was done in measuring software, noneed to set the SPC software, thus greatly improve theefficiency. SPC providesprocess and analysis with the control charts. Provide control charts are: average rangecontrol chart, the average standard deviation control charts, the median range controlchart, individual values and moving average control chart, histogram, CPK graph,specification standard deviation control charts, the process standard deviation controlcharts, standard deviation comparison chart, process suggested analysis diagram, etc. To generate graphics can use eight decision rules for decision. Their charts and datacan be printed and imported into Excel.
Chart to choose the chart type dialog box.
