Horizontal Profile Projector Machine Digital High Precision Measurement
Horizontal Profile Projector Machine Digital High Precision Measurement
Horizontal Profile Projector Machine Digital High Precision Measurement
Horizontal Profile Projector Machine Digital High Precision Measurement
Horizontal Profile Projector Machine Digital High Precision Measurement
Horizontal Profile Projector Machine Digital High Precision Measurement
Specifications
Model Number :
CPJ-4025W
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Supply Ability :
200
Equipment power :
AC 100-240V 50/60Hz,
Rotation range :
0~360°
Weight(kg) :
160 240
Size(mm) :
1090×830×1010 1215×646×1210
Projection screen size(mm) :
Ф 300 Ф 400
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Certification :
ISO ASTM CE
Description
CPJ-3020W 4025W Horizontal Digital Profile Projector Precise Measurement
1. Features

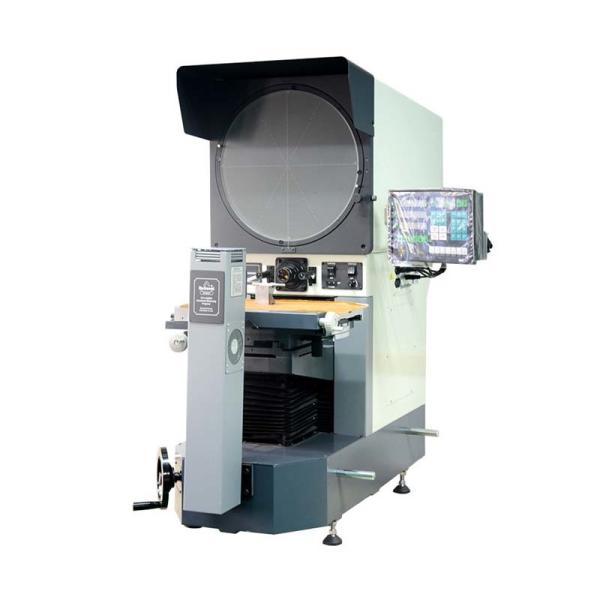

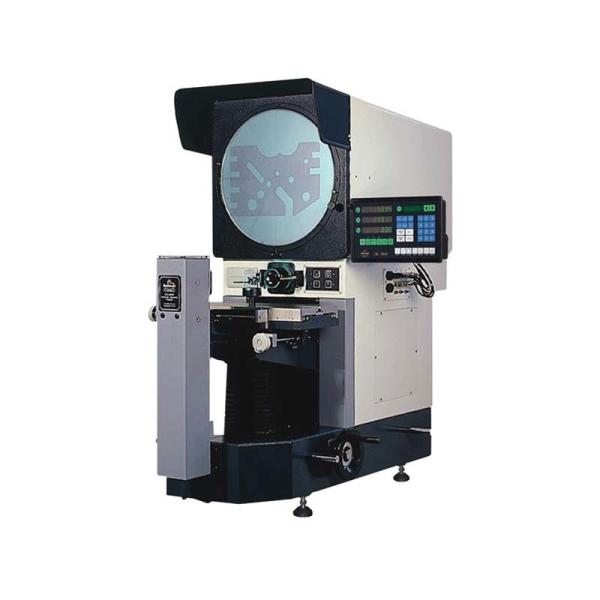

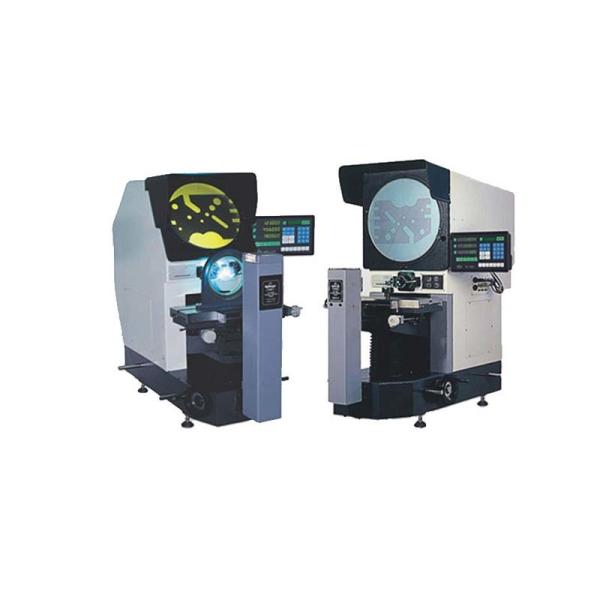

Horizontal projector with stable and reliable mechanical structure and high-precision magnification can accurately image the contour, cross-section and surface shape of the measured workpiece onto the projection screen, which is suitable for the observation and measurement of the contour shape of tools, gears, threads and springs.


2. Technical Specification

Model CPJ-3020W CPJ-4025W
X axis Coordinate trip(mm) 200 250
Z axis Coordinate trip(mm) 100 150
Work table size(mm) 400*150 450*200
Swing range ±15° ±15°(can customize to ±25°)
Digital resolution(μm) 0.5
Error value(μm) X,Yaxis: (2.5+L/100). Zaxis: 3.5+L/50 (LIs the length of the measured object unit:mm)
Xaxis Coordinate trip(mm) 75 (focusing) 100 (focusing)
Weight(kg) 160 240
Size(mm) 1090*830*1010 1215*646*1210
Projection screen Size(mm) Ф 300 Ф 400
Rotation range 0~360°
Rotational resolution 1' or 0.01°
objective(CPJ-3020W) magnification 10* (Optional) 20* (Optional) 50* (Optional) 100* (Optional)
object field (mm) Ф30 Ф15 Ф6 Ф3
work distance (mm) 77.7 44.3 38.4 25.3
objective(CPJ-4025W) magnification times 5* (Optional) 10* (standard) 20* (Optional) 50* (Optional) 100* (Optional)
object field (mm) Ф80 Ф40 Ф20 Ф8 Ф4
Work distance (mm) 93.7 103.9 95.1 65.7 35.0
Data processing system DC-3000 Multi-function digital display table, full English display, can do multi-point sampling, coordinate rotation. Point, line, circle, distance, Angle measurement
Instrument lighting transmission: 24V/150W halogen lamp. reflect: 21V/150W halogen lamp
Equipment accessories Micro printer (optional), optical edge finder (optional), M2D-CPJ software (optional), etc. -- please refer to the projector attachment for details
Equipment power: AC 100-240V 50/60Hz, Rate of power: 400W
