ISO 8295 Plastic Film Testing Equipment COF Coefficient Of Friction Testing Machine
ISO 8295 Plastic Film Testing Equipment COF Coefficient Of Friction Testing Machine
ISO 8295 Plastic Film Testing Equipment COF Coefficient Of Friction Testing Machine
ISO 8295 Plastic Film Testing Equipment COF Coefficient Of Friction Testing Machine
ISO 8295 Plastic Film Testing Equipment COF Coefficient Of Friction Testing Machine
ISO 8295 Plastic Film Testing Equipment COF Coefficient Of Friction Testing Machine
Specifications
Model Number :
LR-F001
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Price :
Negotiable
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Supply Ability :
200
External dimension :
500×335×220 mm
Force range :
0-5N
Test table size :
170×336mm
Power supply :
AC220V, 50Hz
Description

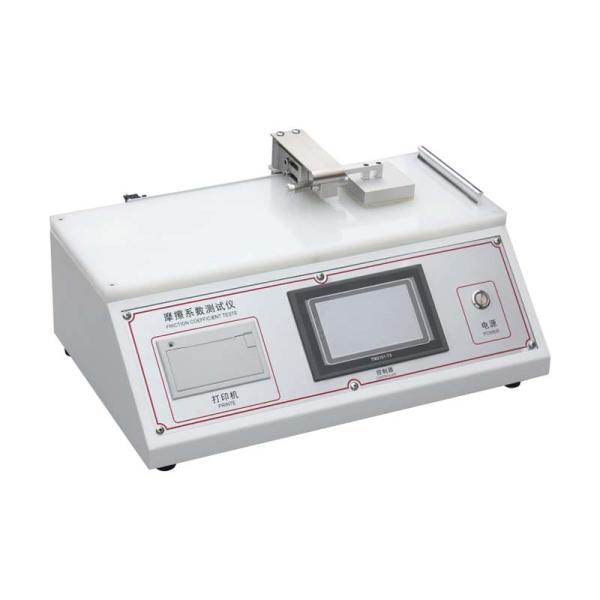

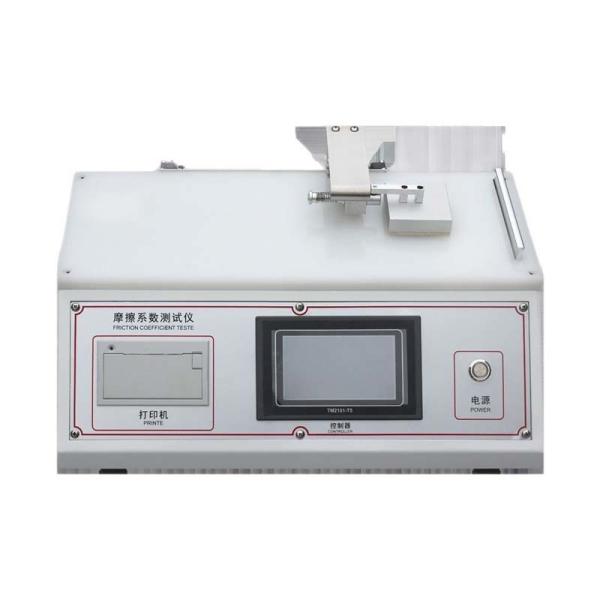

ISO 8295 COF Tester Coefficient Of Friction Test Machine For Plastics Film

1.Use
Friction coefficient tester is mainly used to measure the static and dynamic friction coefficients of plastic film and thin film (or other similar materials).By measuring the smoothness of the material, the opening of the packaging bag and the packaging speed of the packaging machine can be controlled and adjusted to meet the product requirements.

2.Test Standard
GB10006 ASTM D1894 ISO8295

3. Characteristics
1. Full digital automatic system, touch screen display.The test process tracking shows the friction force, and the test results show the coefficient of dynamic and static friction.
2. Connect to the computer.When connected to a computer, in addition to automatically memory and store the results, can also show the friction curve changes and save.
3. Using high precision force sensor, the measurement accuracy is 1 grade.
4. Specially designed drive system, smooth movement, more accurate test results.


4.Technical Parameters

Sample thickness ≤0.2mm
Slider size (length × width)
 63×63mm
Slider mass
 200±2g
Test table size
 170×336mm
Measurement accuracy
 0.001N
Slider movement speed
(0-150) mm/min (adjustable)
Slider stroke
 0-150mm (adjustable)
Force range
 0-5N
External dimensions
 500×335×220 mm
Power supply
 AC220V, 50Hz


Configuration: Mainframe, specialized software, RS232 cable.
