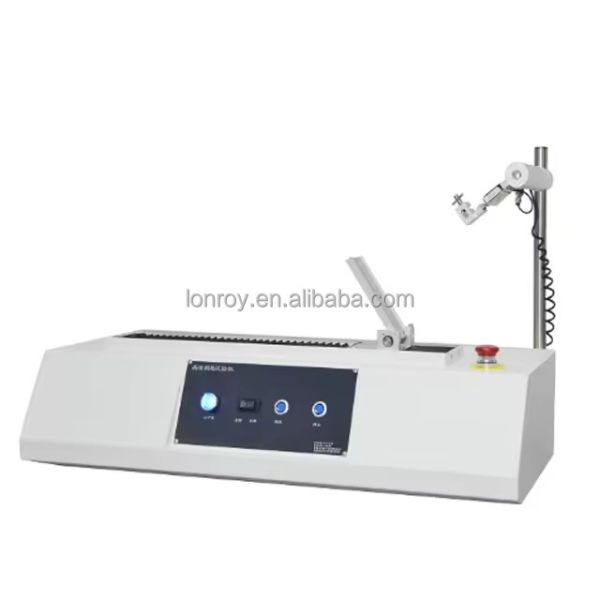

FTM4-FINAT ASTM D3330 Tape peeling tester 15m/min Horizontal high-speed Peel strength testing machine manufacturer

Principle

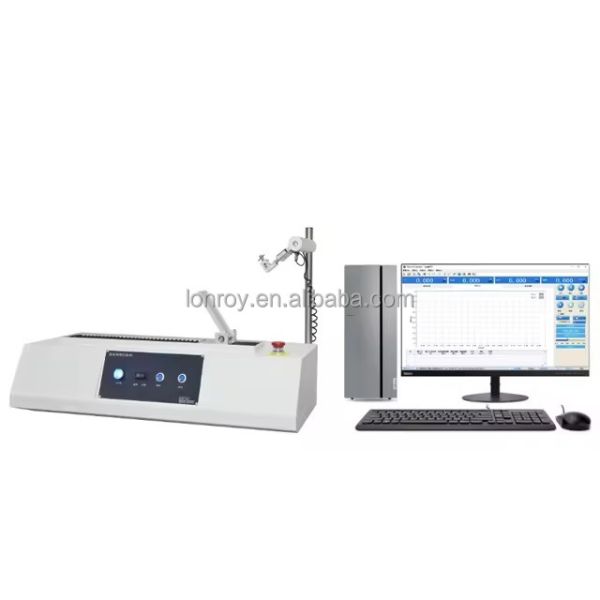

The instrument is the product of the connection of electronic skills and mechanical transmission. It adopts electromechanical integration design and is mainly composed of force sensor, transmitter, microprocessor, load driving mechanism, computer and color inkjet printer.

It can perform many functional experiments on various materials, such as stripping, stretching, compression, bending, shearing, etc., and has the characteristics of wide measuring range, high precision and fast response. The experimental data can be displayed, recorded and printed in time.

Application

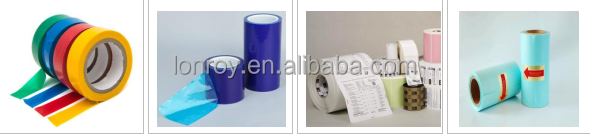

It is suitable for the stripping performance test of adhesive tape, protective film, label, release film (paper) and other products to detect the bond strength and stripping resistance of adhesive materials. It can do 180 degree stripping, 90 degree stripping and shear strength tests.

FTM4-FINAT ASTM D3330 Tape peeling tester 15m/min Horizontal high-speed Peel strength testing machine manufacturer

Standard

GB/T 2792-2014 ASTM D3330-2004 IS029862-2007

GBT 17554.1-2006 Test method for peel strength of adhesive tape

Pressure sensitive tape peel adhesion test method

Self-adhesive tape, determination of resistance to stripping adhesion

Test method for peel strength

GB 7753-1987 Test method for tensile properties of pressure-sensitive adhesive tape

GBT 2792-1998 Test method for 180° peel strength of pressure-sensitive adhesive tape

GB-T2790-1995 Standard for peel strength

YYT 0148-2006 General requirements for medical tape

FTM1-FINAT Test Method NO.1 180° Stripping Force test (stripping speed 300mmmin)

FTM2-FINAT test Method NO.2 Peel Force test at 90° (peel speed 300mmmin)

FTM3-FINAT Test Method NO.3 Low speed release force test of self-adhesive

FTM4-FINAT test method N0.4 adhesive fast release force test

Can adapt to various domestic and foreign standards for stripping test

FTM4-FINAT ASTM D3330 Tape peeling tester 15m/min Horizontal high-speed Peel strength testing machine manufacturer

Parameter

Instrument characteristics

Well-known brand force sensing system, providing better than 0.5 force accuracy, better repeatability, multi-range selection;

The well-known brand step operation system, with precision ball screw, provides better than 0.5 speed accuracy, stepless speed regulation, stable operation; Limit protection, overload protection, automatic return and other intelligent design to ensure safe operation;

Advanced and reasonable structure design, with reliable automatic management and control functions, can adapt to long-term, stable, safe and reliable testing needs;

Meet GB, ISO, ASTM test standards, test methods can be selected; Group test data comparison analysis, with multi-unit conversion function.
