Specifications
Type :
Testing Machine
Accuracy :
---
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
----
Protection Class :
IP55
Voltage :
220 V
warranty :
1year
Logo/graphic design :
Hot Stamping
Product name :
Heat Seal Tester
Model :
LR-8802
Standard :
ASTM F2029
Power :
AC 220V 50Hz
MOQ :
1
Description

ASTM F2029 Laboratory Heat Sealer Heat Sealing Testing Machine Heat Seal Tester for Plastic Packaging Film

Principle:

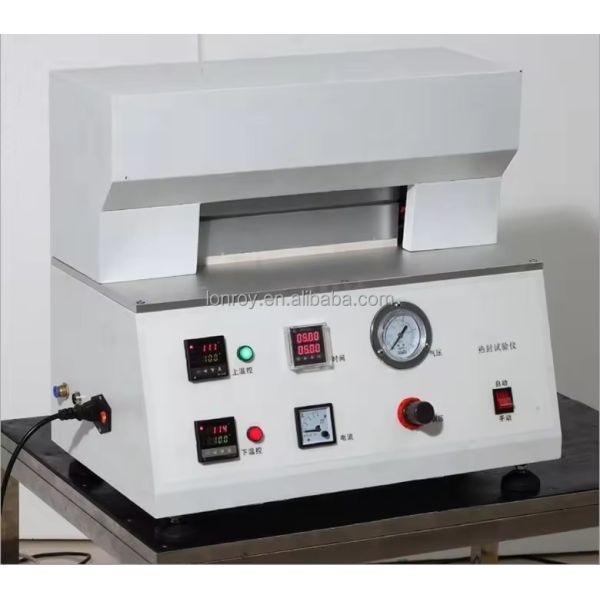

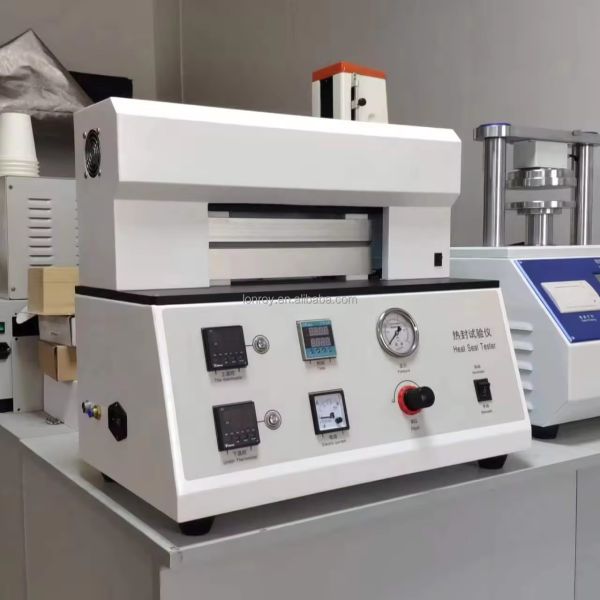

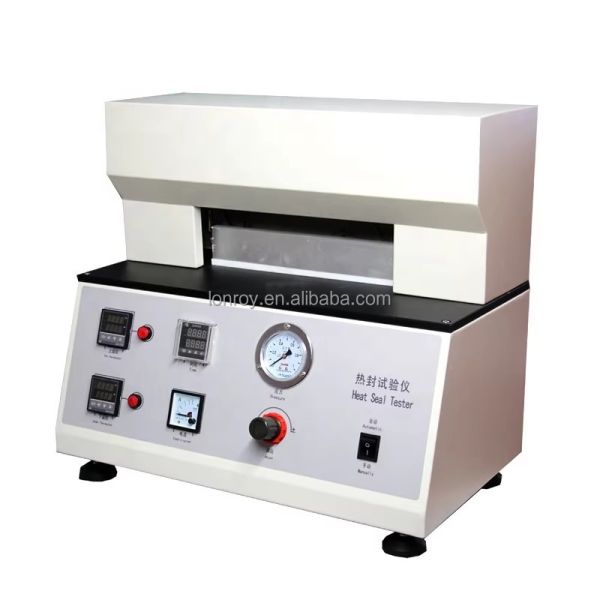

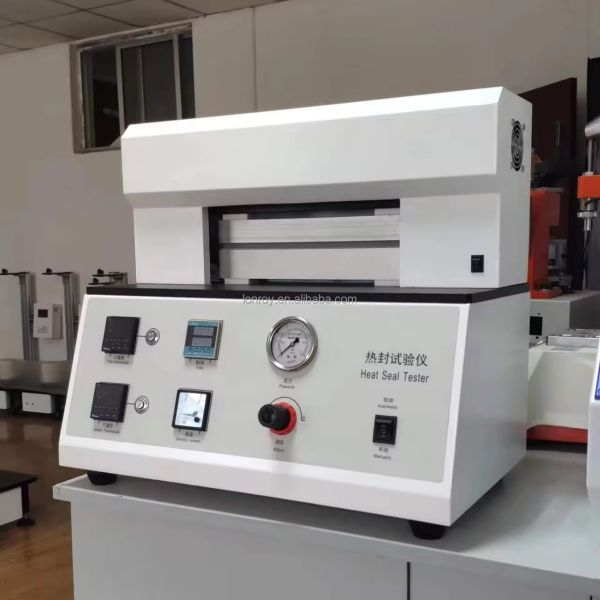

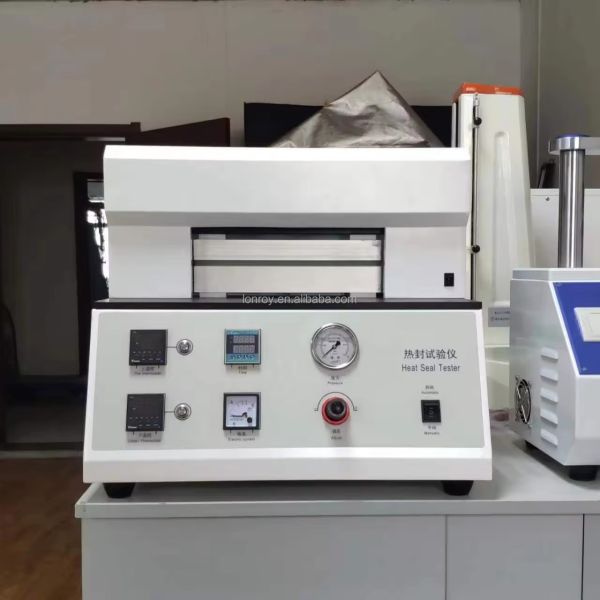

Heat Seal Tester is composed of upper and lower heat sealing jaws. Before the test, preset the heat seal temperature, pressure and dwell time value, place the specimen in between the upper and lower jaws, and then press start button. The whole sealing process can be finished automatically.

Standards: ASTM F2029, QB/T 2358, YBB 00122003

Introduction:

Heat Seal Tester is based on the heat sealing method, and is professionally applicable to the determination of heat seal temperature, dwell time, and the pressure of heat seal of various composite films to guide industrial production. The instrument adopts the specially designed heat sealing jaws, which completely conform to multiple national and international standards.

Digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without any fluctuation.

Wide range control of temperature, pressure and time that meet various test conditions

Manual or pedal switch, as well as anti-scald design provides convenient and safe operating environment.

The instrument is controlled by micro-computer with LCD, PVC operation panel and menu interface

Professional software supports remote operation for convenient data saving, exporting, and printing.

ASTM F2029 Laboratory Heat Sealer Heat Sealing Testing Machine Heat Seal Tester for Plastic Packaging Film

Technical Specifications:

Sealing Temperature

Room temperature ~ 300°C

Accuracy

±0.2°C

Dwell Time

0.1~9999.99s

Sealing Pressure

0.05 MPa ~ 0.7MPa

Sealing Area

330mm x 10mm (customization available)

Heating Mode

Single heating or double heating

Gas Supply Pressure

0.05 MPa~0.7MPa(Air source provided by user)

Size

about 536mm(L)x335 mm(w) x413 mm(H)

Power

AC 220V 50Hz

Net Weight

40 Kg

Air connection

With a diameter of 6 mm polyurethane pipe

ASTM F2029 Laboratory Heat Sealer Heat Sealing Testing Machine Heat Seal Tester for Plastic Packaging FilmASTM F2029 Laboratory Heat Sealer Heat Sealing Testing Machine Heat Seal Tester for Plastic Packaging FilmASTM F2029 Laboratory Heat Sealer Heat Sealing Testing Machine Heat Seal Tester for Plastic Packaging FilmASTM F2029 Laboratory Heat Sealer Heat Sealing Testing Machine Heat Seal Tester for Plastic Packaging FilmASTM F2029 Laboratory Heat Sealer Heat Sealing Testing Machine Heat Seal Tester for Plastic Packaging FilmASTM F2029 Laboratory Heat Sealer Heat Sealing Testing Machine Heat Seal Tester for Plastic Packaging Film
