Specifications
Type :
Testing Machine
Accuracy :
---
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing, Paper Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220 V, 380 V
warranty :
1 Year
Logo/graphic design :
Hot Stamping
Structure :
Servo motor, ordinary screw rod
Power :
1U,220v/50Hz
Overall dimensions :
(L*W*H) 650*600*1750mm
Weight - main unit :
Approximately 300kg
MOQ :
1
Description

ASTM D642 Carton Compression Testing Machine TAPPI T804 JIS 20212 Cardboard Compression Test Equipment

Product Description

Introduction

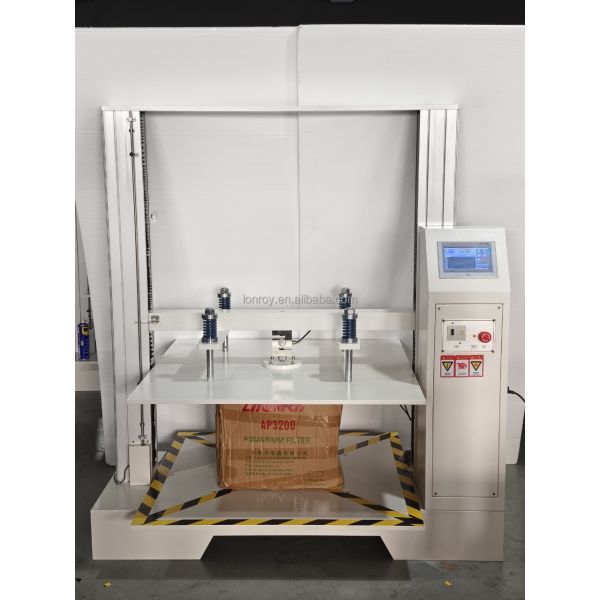

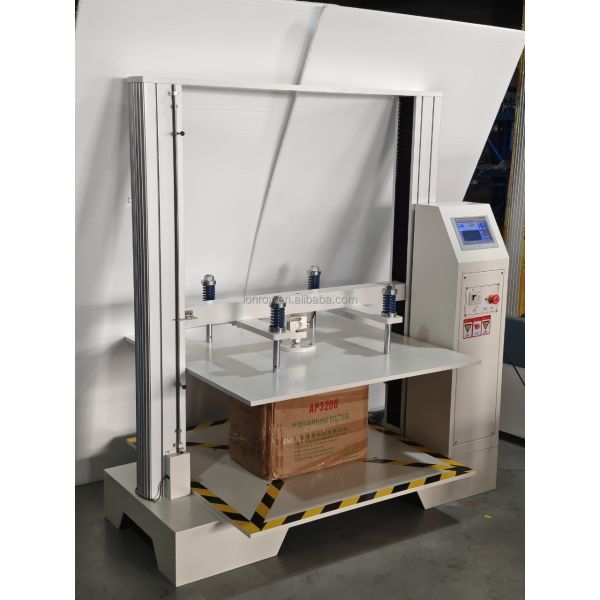

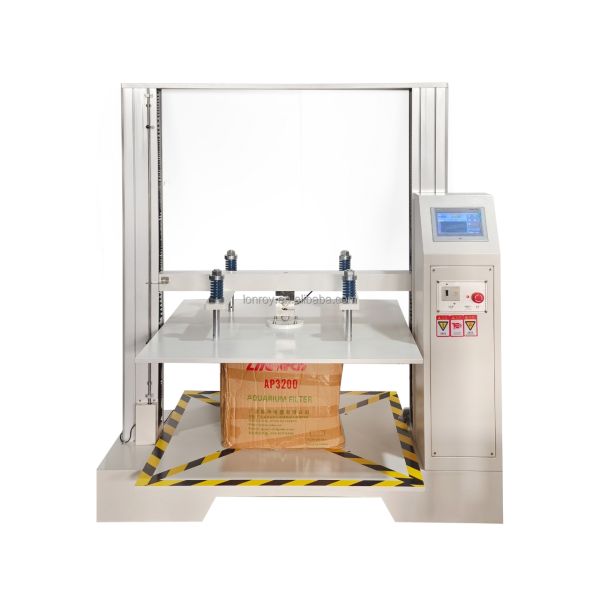

The microcomputer system cardboard compression testing machine is suitable for various packaging bodies and cardboard boxes' compression and holding pressure tests. The test results can be used as an important reference for the height of finished packaging boxes in factories or as an important basis for designing packaging boxes. It can perform tests according to national or international standards such as GB, ISO, ASTM, BS, DIN, JIS, etc., and is an ideal testing and research equipment for various factories, technical supervision departments, commodity inspection institutions, research institutes, and colleges and universities.

Applicable standards

TAPPI-T804,JIS-20212,GB4857.3.4,ASTM-D642

Product Features

The machine structure is equipped with sealed plates that have undergone advanced paint treatment. Inside, there are high-precision, low-resistance, and gap-free double ball screw mechanisms and guide columns, which enhance the load efficiency and structural rigidity.
The control system uses an AC servo with a high response frequency to ensure high efficiency of the transmission system, smooth transmission, low noise, and the speed accuracy can be controlled within ±0.2%.

ASTM D642 Carton Compression Testing Machine TAPPI T804 JIS 20212 Cardboard Compression Test Equipment

Technical Specification

Allowable test piece weight

1T

Decomposition degree

1/10,000

Accuracy

≤0.5%

Force unit

KG, LB, N can be switched

Report items

Serial number, peak value, average value, set holding pressure value, can be memorized

Safety devices

Overload protection, overpressure protection, limit protection device

Structure

Servo motor, ordinary screw rod

Compression space

800*800*800mm

Compression speed standard

10±3mm/min

Overall dimensions

(L×W×H) 650*600*1750mm

Weight - main unit

Approximately 300kg

Power supply

1U, 220v/50Hz
