Specifications
Type :
Testing Machine
Accuracy :
---
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
IP65
Voltage :
Other, 220 V
warranty :
1year
Product name :
Paper smoothness tester
Model :
LR-5636
Standard :
ISO5627
Weight :
35kg
MOQ :
1
Description

ISO5627 electronic Bekk smoothness paper testing instrument Bekk Smoothness Testing Machine Paper smoothness tester

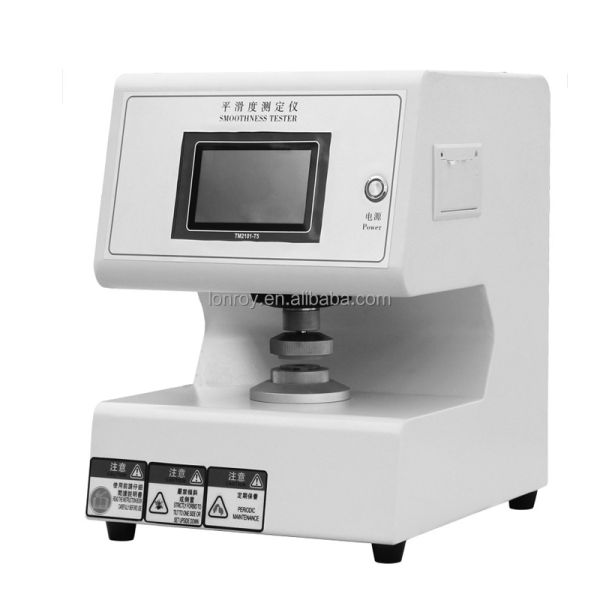

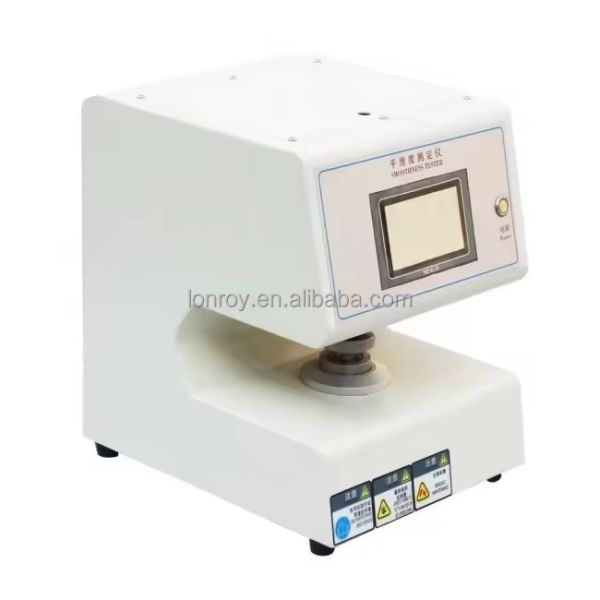

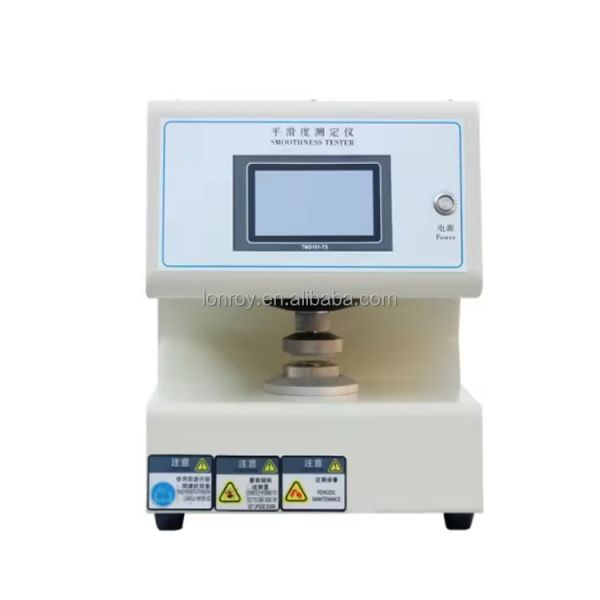

Paper smoothness tester is used to measure the smoothness of paper and paperboard surface. It is an intelligent paper and paperboard smoothness tester designed and developed according to the working principle of the international Buick Bekk smoothness tester. It is the ideal testing equipment for papermaking, packaging, printing, commercial inspection, scientific research and other departments. The tester adopts high performance microcomputer, high precision sensor, oil-free vacuum pump imported from Germany and vacuum volume block and solenoid valve made by professional manufacturers to realize mercury-free rapid measurement.

The product conforms to the following standard ISO5627 "Paper and board smoothness determination (BEKk method)" GB456 "Paper and board smoothness determination method (BEKK method)"

ISO5627 electronic Bekk smoothness paper testing instrument Bekk Smoothness Testing Machine Paper smoothness tester

The main technical parameters

Test area: 10±0.05cm²

Accuracy: 0.1s

Resolution: 0.1s

Measuring range: (0~9999) S

Measuring pressure: 100±2kpa

Measuring gear: <15s; 15~300s; >300s three kinds of gear

Measurement control: automatic control, automatic reset after test

Display: 3.2in LCD display, real-time display of test data

Printer: thermal printing

Working environment: temperature (20±10°C), humidity <85%

Dimensions: (l×b×h, mm) : 300 * 375 * 480 mm

Weight: 35kg

ISO 5627 Electronic Bekk Smoothness Paper Testing Instrument Bekk Smoothness Testing Machine Paper Smoothness TesterISO 5627 Electronic Bekk Smoothness Paper Testing Instrument Bekk Smoothness Testing Machine Paper Smoothness TesterISO 5627 Electronic Bekk Smoothness Paper Testing Instrument Bekk Smoothness Testing Machine Paper Smoothness TesterISO 5627 Electronic Bekk Smoothness Paper Testing Instrument Bekk Smoothness Testing Machine Paper Smoothness Tester
