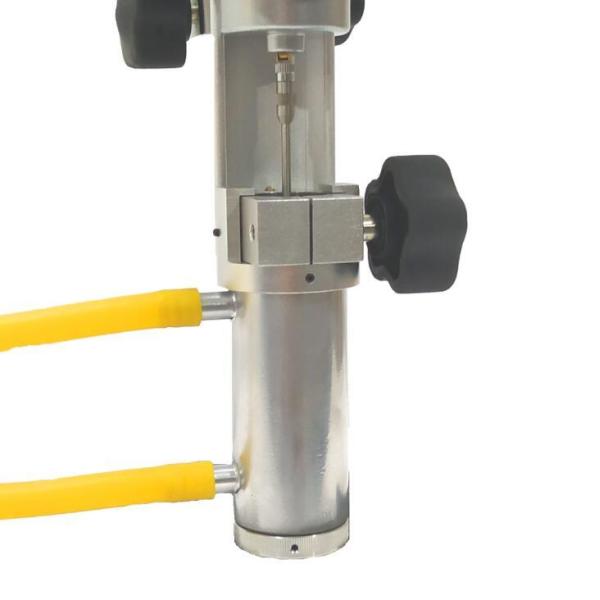

SNB Series Digital Rotational Viscosity Meter

The apparent viscosity of absolute viscosity or non Newton type liquid SNB series digital viscometer can be measured. The Newton type liquid viscometer data processing software can be summarized for rheological properties of non Newton liquid.

Widely used in grease, paint, paint, textile, food, slurry, medicine, cosmetics and other adhesives, fluid, semi fluid production industry and scientific research units.

SNB Series Digital Rotational Viscosity Meter For Paint And Coating

Main features:
1. measurement data direct LCD screen display does not require two calculations

2., using the latest international microcomputer drive technology, import stepper motor, accurate speed, smooth and reliable

3., the use of advanced switching power supply technology, voltage and frequency range wide, power fluctuations will not affect measurement accuracy

The 4. level display device is very convenient on the front of the viscometer

5. all ranges, the display accuracy of viscosity value is accurate to two decimal places, that is, 0.01mPa.S.

6., with the function of timing measurement, it is very useful for detecting non Newtonian liquid

7. using small sample adapters, the amount of sample required for each measurement is very small, 18ml.

8., automatic scanning function, the instrument can automatically recommend the best combination of rotor and speed

9. automatically display the maximum range of viscosity that the selected combination can measure

10., with a print interface, you can directly connect to play micro printing machine, print a variety of data

11. optional data processing software, can record real-time viscosity with time, speed or rotor (shear rate), temperature changes vary, which provides a good method to understand the viscosity and rheological properties of non Newtonian liquids.

SNB Series Digital Rotational Viscosity Meter

Detailed technical parameters:

Option:

1. ultra low viscosity adapter (0# rotor)

A set of three pieces (rotor, sample bucket,

connecting frame) Used to measure ultra-low

viscosity samples below 15mPa.S

The amount of sample required for each

measurement is 18-20ml

The accuracy of measurement is 0.1mPa.S

2. Temperature probe (temperature sensor)

High precision temperature measuring chip with A/D conversion

Measuring range: 0 - 100

Measurement accuracy: 0.1

3. Micro thermal printer

Can be directly connected with the viscometer

print data

Print curve

4. Viscometer special thermostatic bath
