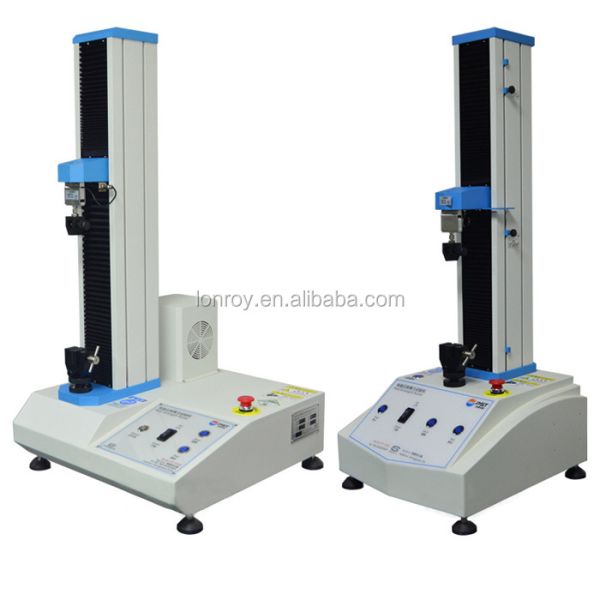

Adhesive peel strength tester/Stripping force tester ASTM D3330 ISO29862

Introduction to principle

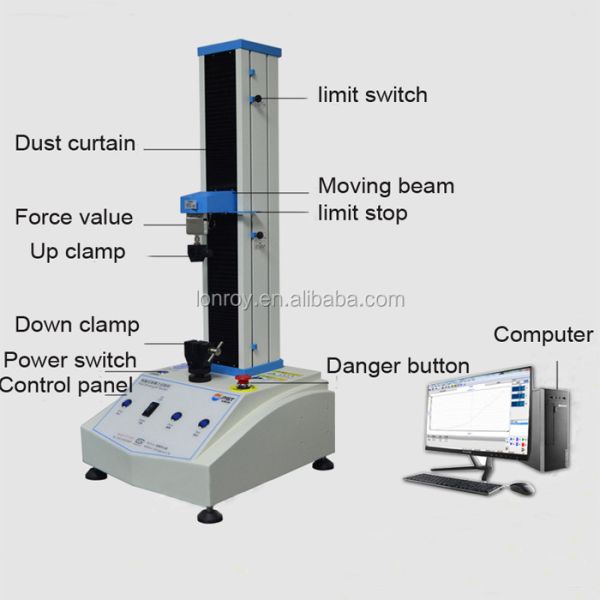

This instrument is the product of electronic skill and mechanical transmission. It adopts mechatronics design and mainly consists of force transducer, transmitter, microprocessor, load driving mechanism, computer and color inkjet printer.

It can be used to peel, stretch, compress, bend, shear and other functional tests on various materials, and it has the characteristics of wide measuring range, high precision and quick response.The experimental data can be displayed, recorded and printed in time.

Adhesive peel strength tester/Stripping force tester ASTM D3330 ISO29862

Scope of application

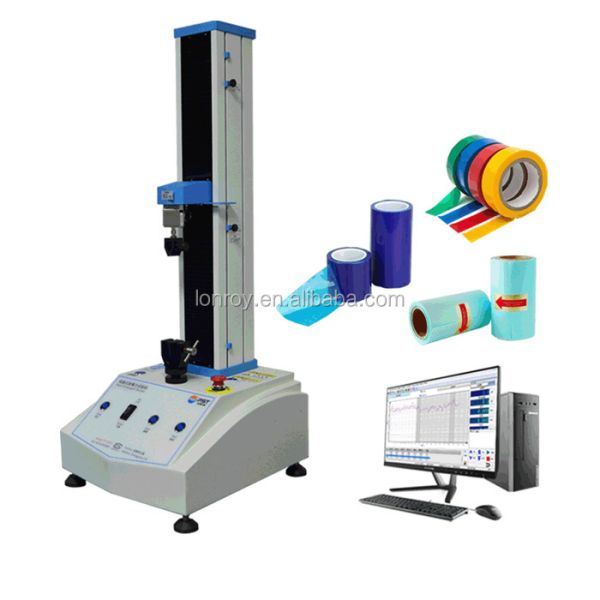

It is suitable for testing the peel performance of adhesive tape, protective film, label, release film (paper) and other products to detect the bond strength and anti-peel performance of viscous materials. It can be used for 180 degree peel, 90 degree peel, ring initial bonding shear strength and other tests.

Meeting Standards

GB/T 2792-2014 Test Method for adhesive tapes and peeling strength

ASTM D3330-2004 Pressure-sensitive strip stripping adhesion Test Method

ISO 29862-2007 Self-adhesive tapes - Determination of resistance to peel adhesion properties

Adhesive peel strength tester/Stripping force tester ASTM D3330 ISO29862

Technical parameters

Adhesive peel strength tester/Stripping force tester ASTM D3330 ISO29862

Instrument features

The world famous brand force induction system, provides better than 0.5 level of force precision, better repeatability, multi-range selection, more flexible testing.

The world famous brand step running system, with precision ball screw, provides better than 0.5 level speed accuracy, stepless speed regulation, smooth operation.

Limit protection, overload protection, automatic return and other intelligent design, to ensure safe operation.

The structure design is advanced and reasonable, the technology is in the domestic leading level, has the reliable automatic management and control function, can adapt to the long-term, stable, safe, reliable test demand.

Meet GB, ISO, ASTM testing standards, testing methods can be arbitrary choice.

Support group test data comparison and analysis, with multi-unit conversion function.

New software system, streamlined flow, smooth control, easy to learn.
