ASTM D6195 Adhesive Tape Loop Tack Tester/Adhesive tape testing machine/Tape stickiness testing equipment

Product Description:

Compact and exquisite structure, imported sensors and motors, top imported core accessories.Can allow users to quickly and effectively determine adhesive tape, label and other products adhesion and adhesion.Mainly used for various adhesive tapes, adhesives and other products of the initial adhesion.The products meet international standards such as FINAT Test Method No. 9: Loop Tack Measurement, TLMI, ASTM, etc., suitable for research institutions, adhesive import and export enterprises, inspection and quarantine institutions, etc.

Test principle:

After the annular sample is fully contacted with the standard float glass test plate at a constant speed of 300mm/min, the instrument automatically separates the annular sample and the test plate in reverse at a constant speed of 300mm/min, and the maximum force generated is the initial adhesion of the ring of the tested sample.

ASTM D6195 Adhesive Tape Loop Tack Tester/Adhesive tape testing machine/Tape stickiness testing equipment

Product Features:

1. The data collection system is a relatively advanced measuring instrument with the characteristics of both precision and ease of use.

2. Adopting microcomputer control technology, different from the traditional bevel ball rolling method, with high precision and easy operation.

3. Using imported sensors, the accuracy can reach +0.1% of the weight sensor standard.

4. Advanced imported motor and lead screw driving technology, smooth operation, more accurate displacement measurement.

5. High-definition LIQUID crystal display, clear operation

6. Connect micro printer: experiment date and test result can be realized, and print directly in time!

7. With the function of maintaining test force value, it can store up to 20 test data, making it more convenient to view experimental results.

8. Stepless speed regulation can be set with arbitrary precision in the range of 1-500

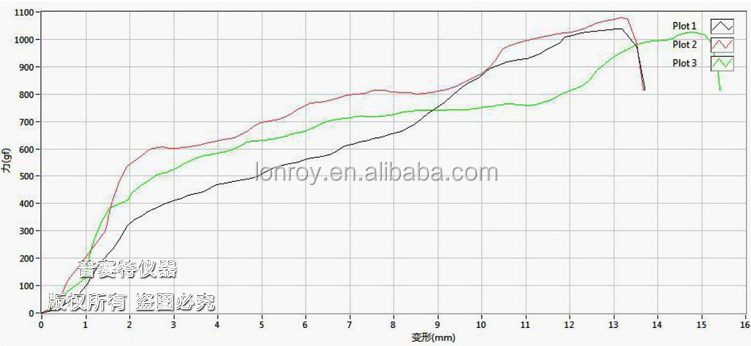

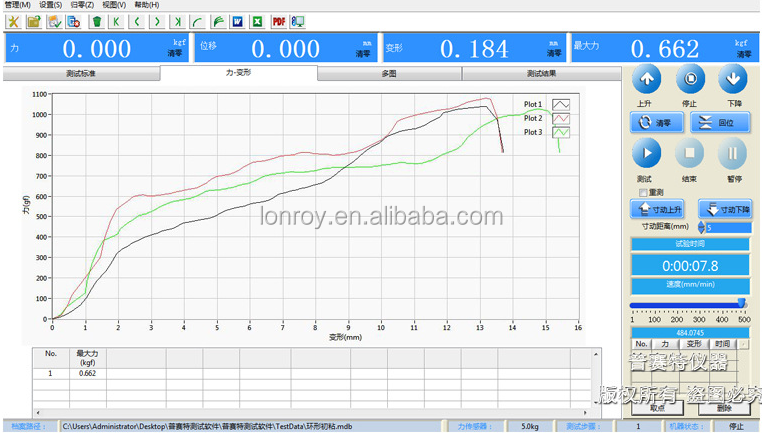

9. Curve analysis, curve display.

ASTM D6195 Adhesive Tape Loop Tack Tester/Adhesive tape testing machine/Tape stickiness testing equipment

Technical parameters:

National standard: ASTM, TLMI, FINAT

Standard configuration of ring primer: main machine, power cord, fixture, test board 2 pieces
