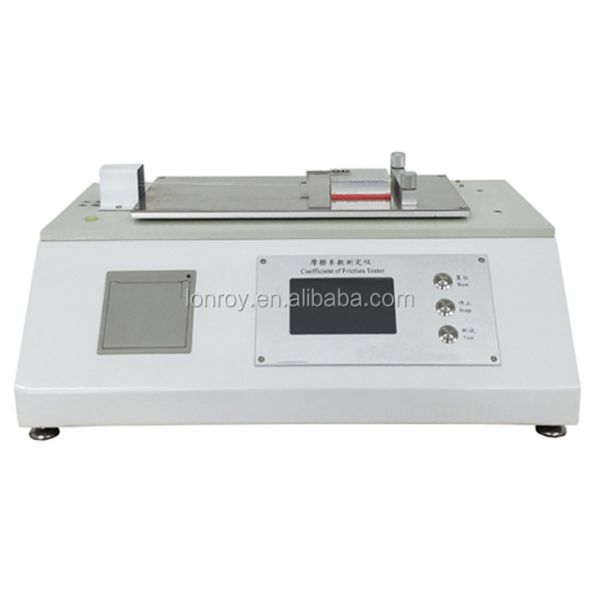

ASTM D1894 ISO 8295 Plastic Film COF Testing Machine, Coefficient of Friction Tester
ASTM D1894 ISO 8295 Plastic Film COF Testing Machine, Coefficient of Friction Tester
ASTM D1894 ISO 8295 Plastic Film COF Testing Machine, Coefficient of Friction Tester
ASTM D1894 ISO 8295 Plastic Film COF Testing Machine, Coefficient of Friction Tester
ASTM D1894 ISO 8295 Plastic Film COF Testing Machine, Coefficient of Friction Tester
ASTM D1894 ISO 8295 Plastic Film COF Testing Machine, Coefficient of Friction Tester
ASTM D1894 ISO 8295 Plastic Film COF Testing Machine, Coefficient of Friction Tester
ASTM D1894 ISO 8295 Plastic Film COF Testing Machine, Coefficient of Friction Tester
ASTM D1894 ISO 8295 Plastic Film COF Testing Machine, Coefficient of Friction Tester
ASTM D1894 ISO 8295 Plastic Film COF Testing Machine, Coefficient of Friction Tester
ASTM D1894 ISO 8295 Plastic Film COF Testing Machine, Coefficient of Friction Tester
ASTM D1894 ISO 8295 Plastic Film COF Testing Machine, Coefficient of Friction Tester
Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
customized support :
OEM, ODM, OBM
power :
Electronic
warranty :
1year
Model Number :
LR-F001
MOQ :
5
Description

ASTM D1894 ISO8295 Plastic Film COF Testing Machine/ coefficient of friction tester

Use

Friction coefficient tester is mainly used to measure the static and dynamic friction coefficients of plastic film and thin film (or other similar materials).By measuring the smoothness of the material, the opening of the packaging bag and the packaging speed of the packaging machine can be controlled and adjusted to meet the product requirements.

ASTM D1894 ISO8295 Plastic Film COF Testing Machine/ coefficient of friction tester

Test Standard

GB10006 ASTM D1894 ISO8295

Characteristics:

1.Full digital automatic system, touch screen display.The test process tracking shows the friction force, and the test results show the coefficient of dynamic and static friction.

2.Connect to the computer.When connected to a computer, in addition to automatically memory and store the results, can also show the friction curve changes and save.

3.Using high precision force sensor, the measurement accuracy is 1 grade.

4.Specially designed drive system, smooth movement, more accurate test results.

ASTM D1894 ISO8295 Plastic Film COF Testing Machine/ coefficient of friction tester

Technical Parameters:

Sample thickness

≤0.2mm

Slider size (length × width)

63×63mm

Slider mass

200±2g

Test table size

170×336mm

Measurement accuracy

±2%

Slider movement speed

(0-150) mm/min (adjustable)

Slider stroke

0-150mm (adjustable)

Force range

0-5N

External dimensions

500×335×220 mm

Power supply

AC220V, 50Hz
