Specifications
Type :
Testing Machine
Accuracy :
---
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
IP67
Voltage :
380 V
warranty :
1year
model :
LR-F022-B
Drop height mm :
300-1500 adjustable
Maximum weight of specimens :
0-80kg
Fall height error :
1%
Power supply :
380V1; power supply: AC380V 50HZ
standard :
ISO2248 jisz0202-87 GB/ t4857.5-92
MOQ :
1
Description

ISO 2248 JIS Z0202 Single Arm Package Free Fall Drop Impact Testing Machine Packaged Free Fall Impact Tester

Product use:

Package box drop test machine/packaging drop test machine/drop impact test machine is specially used to test the damage of product package to fall and evaluate the applicable standard of impact strength during transportation and transportation: ISO2248 jisz0202-87 GB/ t4857.5-92

Machine features:

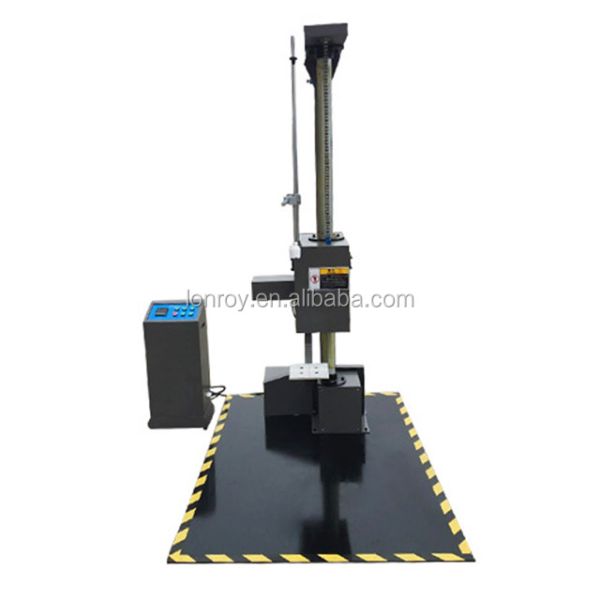

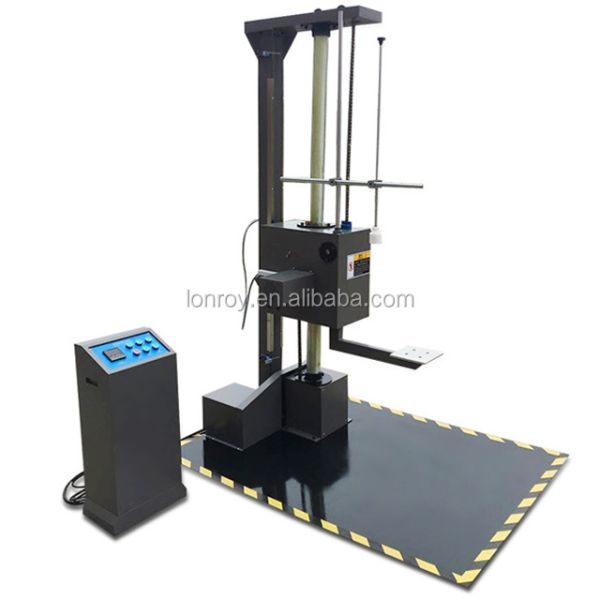

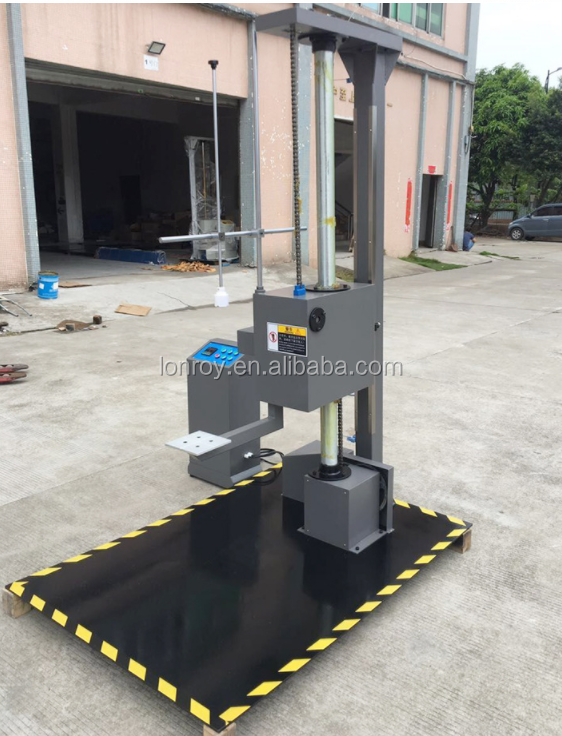

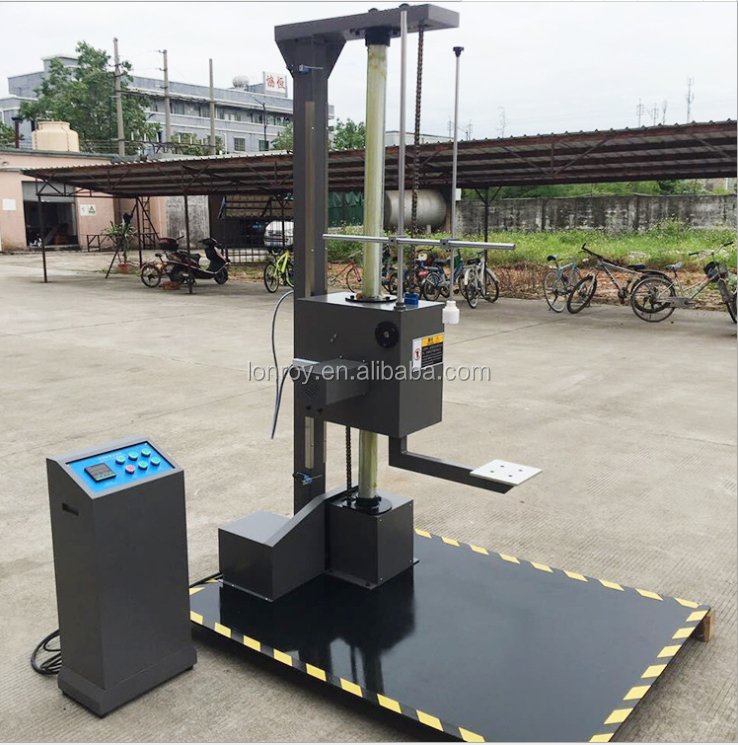

Single arm drop tester can perform free drop test on the surface, Angle and edge of the package, equipped with digital height indicator and decoder for height tracking, so that the product drop height can be accurately given, and the error with the preset drop height should not exceed 2% or 10MM.The machine adopts single arm and double column structure, with electric reset, electric drop control and electric lift device.The unique buffering device greatly improves the service life, stability and safety of the machine.Single arm setting, easy to place product.

ISO 2248 JIS Z0202 Single Arm Package Free Fall Drop Impact Testing Machine Packaged Free Fall Impact Tester

Main technical parameters:

Drop height mm

300-1500 adjustable

Maximum weight of specimens

0-80kg

Base thickness

10mm (solid iron plate)

Maximum size of specimen mm

800 x 800 x 1000

Impact panel size mm

1700 x 1200

Drop height error

+ / - 10mm

Appearance and size of the test bench mm

about 1700 x 1200 x 2315

Net weight kg

about 300kg

Test method

surface, Angle and edge drop in all directions

Control mode

electric

Fall height error

1%

Parallel error of hitting panel

less than or equal to 1 degree

Error of Angle between falling surface and level during falling

no more than 1 degree

Power supply

380V1; power supply: AC380V 50HZ

Power

1.85KWA

ISO 2248 JIS Z0202 Single Arm Package Free Fall Drop Impact Testing Machine Packaged Free Fall Impact Tester

Machine studio environment requirements

28 ℃ temperature: 5 ℃ ~ + [1] average temperature 28 ℃ or less (24 hours)

Relative humidity: less than 85%RH

Power supply conditions three-phase four-wire + protection ground line,

Voltage range: AC (380 + / 38) V
