Sample quantity testing X-ray Fluorescence Sulfur in Oil Analyzer BD-D4294-03 sulfur analysis solution for petrochemical industry
Sample quantity testing X-ray Fluorescence Sulfur in Oil Analyzer BD-D4294-03 sulfur analysis solution for petrochemical industry
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D4294-03
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Measurement range :
7 ppm to 5%;
 Precision :
(1) Repeatability: <0.029 ( S+0.6); (2) Reproducibility: <0.063 ( S+0.6);
Sample quantity :
2 to 3 ml (it is equal to sample depth of 3 mm to 4 mm);
Measurement time :
60, 120, 240, 300, and 600 s at random;
Size :
468 mm×368 mm×136 mm;
weight :
13 kg;
Description

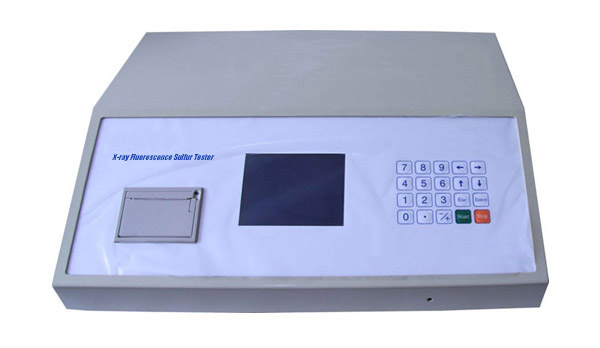

BD-D4294-03 X-ray Fluorescence Sulfur in Oil Analyzer
Product Overview
The BD-D4294-03 X-ray Fluorescence Sulfur in Oil Analyzer is specifically engineered to determine sulfur content in petroleum products. Utilizing energy-dispersive technology with an integrated design, this instrument delivers rapid and accurate measurements that comply with National Standard GB/T 17040, GB/T 11140, and ASTM D4294-03 requirements for repeatability and reproducibility.
Environmental Significance
Environmental pollution continues to draw increasing concern from governments and the public worldwide. The primary contributors to atmospheric destruction and pollution are CO₂ and SO₂ emissions from fuel combustion. Reducing sulfur content in gasoline, diesel oil, and heavy oils used in vehicles, ships, and airplanes significantly minimizes atmospheric pollution. Additionally, SO₂ can cause catalyst poisoning in petrochemical processes and contribute to acid rain formation.
Applications
  • Mass percentage of total sulfur in crude petroleum, petroleum, heavy oil, diesel oil, gasoline, and naphtha
  • Total sulfur content in coal chemical industry products, such as primary benzene
  • Total sulfur or sulfide content in other liquid or solid powder samples
Key Features
  • Electromechanical integration with microprocessor control and large LCD display
  • Wide measurement range for various products with rapid analysis and minimal standard sample requirements
  • Fluorescence intensity ratio analysis with automatic temperature, pressure, and carbon/hydrogen ratio correction
  • Self-diagnostic function for monitoring working state and electrical parameters
  • Disposable sample cells with Mylar film to prevent cross-contamination
  • Precisely located sample holder with convenient anti-leakage parts replacement
  • Extensive test data storage with browsing capability for data and calibration curves
  • Thermal printer with easy paper replacement and no ribbon requirements
  • RS232 serial port for computer or web system connectivity
  • Comprehensive X-ray protection measures for operator safety
Technical Specifications
Measurement Range: 7 ppm to 5%
Precision:
  • Repeatability: <0.029 (S+0.6)
  • Reproducibility: <0.063 (S+0.6)
Sample Quantity: 2-3 ml (equivalent to 3-4 mm sample depth)
Measurement Time: 60, 120, 240, 300, and 600 seconds
Automatic Determination: Single sample with configurable measurement cycles (2, 3, 5, 10, 50 times)
Calibration Curves: 9 stored curves (5 linear equations, 4 binomial parabolas)
Operating Conditions:
  • Temperature: 5 to 40°C
  • Relative Humidity: ≤85% at 30°C
  • Power Supply: AC 220V±20V, 50 Hz
  • Rated Power: 30 W
Dimensions: 468 mm * 368 mm * 136 mm
Weight: 13 kg
Standard Accessories
No. Item Unit Quantity Remarks
1 Sample cup (Three pieces a set) Set 200
2 Sample cup film (6μm Mylar) Piece 200 In two boxes
3 Anti-spill parts (Two pieces a set) Set 1
4 Multifunctional pressure shaping device (Two pieces a set) Set 1
5 Dust shield of leakage protection device Piece 1
6 Heat sensitive paper (57 mm in width; Φ30mm) Roll 3
7 Calibration sample (10 ml/a) Piece 12
8 Three-wire power cord (250V/6A) Piece 1
9 3 ml Pipette Piece 200
