Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D4294-03 New
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Measurement range :
7 ppm to 6%;
Precision :
Repeatability: <0.02894 (X+0.1691); Reproducibility: <0.1215 (X+0.05555);
Sample quantity :
2 to 3 ml (it is equal to sample depth of 3 mm to 4 mm);
Power supply :
AC 220V±20V, 50 Hz;
Size and weight :
260mm×460mm×260mm;
NW/GW :
11/16 kg;
Description
BD-D4294-03 New X-ray Fluorescence Oil Sulfur Analyzers
Automatic tests sulfur content rate in liquid oil or thin powder reach up to 7ppm the fastest in 30 seconds.
Product Overview
BD-D4294-03 X-ray Fluorescence Sulfur in Oil Analyzer instrument is specially designed to determine sulfur content in petroleum products. Adopting energy-dispersive principle with integrated design, it provides rapid and accurate measurements that meet the requirements of National Standard GB/T 17040, GB/T 11140, and ASTM D4294-03 for repeatability and reproducibility.
Environmental pollution is attracting increasing government and public concern. The key contributors to atmospheric destruction are CO2 and SO2 emissions from fuel combustion. Lowering sulfur content in gasoline, diesel oil, and heavy oils used in vehicles, ships, and airplanes significantly reduces atmospheric pollution. SO2 can also cause catalyst poisoning in petrochemical industry and form acid rain.
Applicable Standards
GB/T 17040, GB/T 11140, ASTM D 4294-03
Applications
  • Mass percentage of total sulfur in crude petroleum, petroleum, heavy oil, diesel oil, gasoline, and naphtha
  • Total sulfur content in coal chemical industry products, such as primary benzene
  • Total sulfur or sulfide in other liquid or solid powder samples
Key Features
  • Electromechanical integration with microprocessor control and 8-inch IPS capacitive touch screen
  • Rapid analysis in 30 seconds with minimal standard sample requirement
  • Automatic temperature, pressure, and carbon/hydrogen ratio correction using fluorescence intensity ratio analysis
  • Self-diagnostic function for monitoring working state and electrical parameters
  • Disposable sample cell with Mylar film to prevent cross contamination
  • Automatic working curve selection and peak stabilization
  • Precisely located sample holder with external access for convenient maintenance
  • Extensive data storage: 4096 content analysis results and 8192 count measurement data
  • Selectable measurement units (m/m % or ppm)
  • Thermal printer with easy paper replacement
  • RS232 serial port for data upload to computer or web system
  • Safe X-ray protection measures
Main Unit and Accessories
BD-D4294-03 New X-ray Fluorescence Oil Sulfur Analyzers

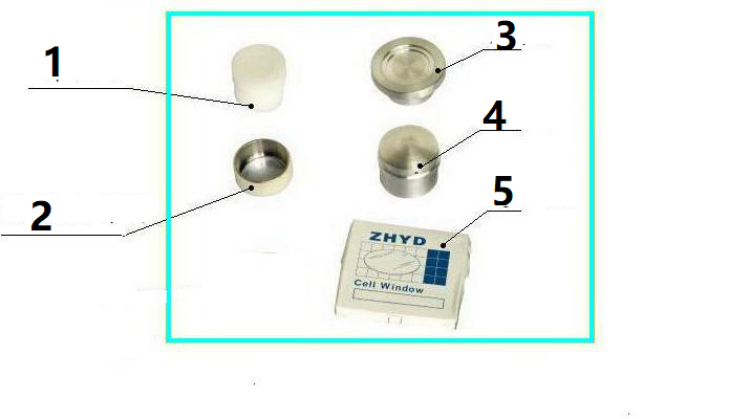

(1) Sample cell (2) Leakage protection device (3) Base of pressure shaping device (4) Cover of pressure shaping device (5) Cell film
New vs Old Model Comparison
Feature BD-D4294-03 New BD-D4294-03 Old

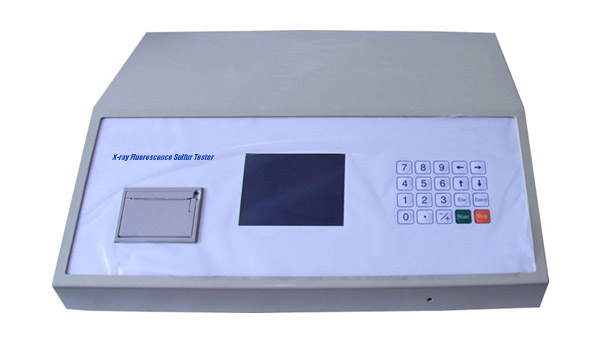

Appearance BD-D4294-03 New X-ray Fluorescence Oil Sulfur Analyzers BD-D4294-03 New X-ray Fluorescence Oil Sulfur Analyzers
Dimension 430 × 260 × 260mm 468 × 368 × 136mm
Weight 11 Kg 13 Kg
Display 8-inch wide viewing angle capacitive touch screen Monochromatic screen
Keyboard Capacitive touch screen PVC panel keypad
Software Interface Smart, simple, easy to learn --------------------
Working Curve Selection Automatically choose Operator selection
Working Curves 10 working curves 9 working curves
Data Storage 4096 content data 1000 content data
Analysis Range S % max - S % min ≤ 6% S % max - S % min ≤ 5%
Technical Specifications
Parameter Specification
Measurement Range 7 ppm to 6%
Precision Repeatability: <0.02894 (X+0.1691); Reproducibility: <0.1215 (X+0.05555)
Sample Quantity 2 to 3 ml (sample depth of 3 mm to 4 mm)
Measurement Time 30, 60, 120, 150s at random; automatic single sample determination
Calibration Curves 10 calibration curves (5 linear equations, 5 binomial parabola)
Working Conditions Temperature: 5 to 40 °C; Relative humidity: ≤85% (30 °C)
Power Supply AC 220V±20V, 50 Hz
Rated Power 50 W
Size and Weight 260mm × 460mm × 260mm; NW/GW: 11/16 kg
Packing List
Item Name Quantity
Main unit 1 set
Power supply wire 1 piece
Sample cell (three parts) 200 pcs
Sample cell film (6μm Mylar) 200 pieces in two boxes
Leakage protection device (two parts) 1 set
Multifunctional pressure shaping device (two parts) 1 set
Printing paper (57 mm width; Φ30mm) 3 rolls
BD-D4294-03 New X-ray Fluorescence Oil Sulfur Analyzers
