BD-D4294-022Z X-ray fluorescence sulfur meter
BD-D4294-022Z X-ray fluorescence sulfur meter
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D4294-022Z
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Lower detection limit :
10ppm level
Relative humidity :
≤85% (30℃),
Power supply :
220V±20V, 50Hz.
Overall power consumption :
<150W.
Size :
405mm×285mm×165mm
Weight :
9.5Kg.
Description

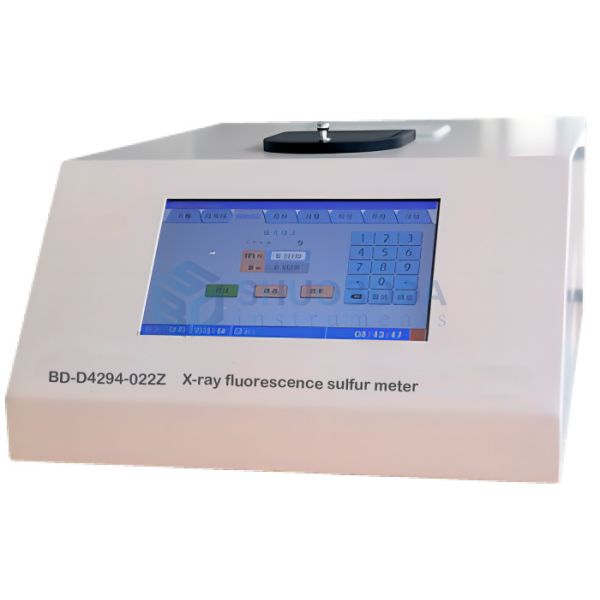

BD-D4294-022Z X-ray Fluorescence Sulfur Meter
Product Overview

The BD-D4294-022Z X-ray fluorescence sulfur meter utilizes energy dispersive X-ray fluorescence spectrometry for precise sulfur content measurement in various hydrocarbon compounds.

Applicable Standards

GB/T 17040, ASTM D4294

Scope of Application

This instrument measures sulfur content in hydrocarbons including:

  • Diesel, naphtha, kerosene, residual oil
  • Lubricating base oil, hydraulic oil, jet fuel
  • Crude oil, motor gasoline and other distillates
  • Other products such as M85 and M100
Performance Characteristics
  • Fully automatic operation with specialized optical path for detection limits as low as 10 ppm
  • Advanced color touch screen with intuitive, humanized design
  • Multi-channel pulse amplitude analyzer with CPLD, FPGA, and DSP technologies
  • Rapid detection capability with results in tens of seconds and automatic C/H ratio correction
  • Background interference shielding for hydrogenated gasoline and diesel
  • Multiple calculation methods to eliminate measurement errors
  • Automatic curve selection during testing
  • Automatic spectrum stabilization function for long-term accuracy
  • Annual calibration requirement of only 1-2 times
  • Automatic calibration function for enhanced stability
  • One-click experimental curve error calibration
  • Powerful storage capacity for 1,000 measurement results
  • Internal detection device placement for extended service life
  • Comprehensive radiation protection for laboratory safety
Technical Specifications
Parameter Specification
Measurement Range Adjustable via calibrated working curve
Measuring Range S % max ~ S % min ≤ 99.9999% (e.g., petroleum sulfur content: 0.005% ~ 5%)
Error & Accuracy Complies with GB/T 17040-2008, GB/T17606-2009, and ASTM4294
Measurement Time 30, 60, 100, 150, 300 seconds (recommended: 100 seconds)
Lower Detection Limit 10ppm level
Operating Temperature 5℃～40℃
Relative Humidity ≤85% (30℃)
Power Supply 220V±20V, 50Hz
Power Consumption <150W
Dimensions 405mm×285mm×165mm
Weight 9.5Kg
