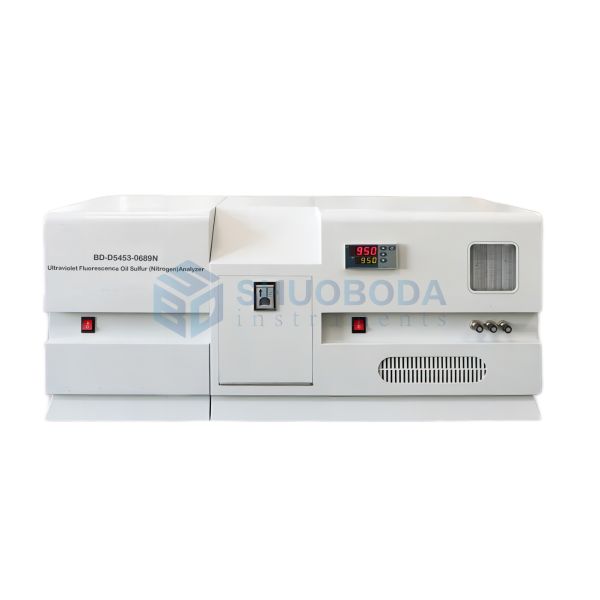

BD-D5453-0689N Ultraviolet Fluorescence Sulfur (Nitrogen)-in-Oil Analyzer
BD-D5453-0689N Ultraviolet Fluorescence Sulfur (Nitrogen)-in-Oil Analyzer
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D5453-0689N
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Sample types :
Solid, gas and liquid
Determination method :
Ultraviolet fluorescence method (S)
Sample injection quantity :
Solid: 1-20mg; Liquid: 5-20μL; Gas: 1-5mL
Measuring range :
0.1 ~ 50000mg/L
Temperature range :
Ambient to 1150°C
Temperature control precision :
±1°C
Description
BD-D5453-0689N Ultraviolet Fluorescence Sulfur (Nitrogen)-in-Oil Analyzer
Product Summary

This instrument determines total sulfur content using ultraviolet fluorescence methodology. It enhances anti-interference capabilities and eliminates the complex operation of titration pools and instability factors associated with coulometry, significantly improving instrument sensitivity. Key system components utilize imported parts to prevent detector light leakage and steam leakage, ensuring reliable performance.

Compliance Standards

SH/T 0689－2000, ASTM D 5453 -2006, EN ISO 20846:2004, GB 17930-2011, GB 19147-2009, ISO 20846-2011, BS EN 15486-2007

Main Technical Features

Features Windows-based (7, XP, Me, 98) English user interface for convenient and rapid operation. Operators simply click the mouse to complete all parameter settings. Data collection, processing, storage, and printing are fully computer-controlled.

Main Technical Specifications
  • Standard Configuration: Printer + Computer + BD-D5453-0689N + Liquid Injector
  • Optional Parts: Solid sample injector, gas sample injector
  • Sample Types: Solid, gas and liquid
  • Determination Method: Ultraviolet fluorescence method (S)
  • Sample Injection Quantity: Solid: 1-20mg; Liquid: 5-20μL; Gas: 1-5mL
  • Measuring Range: 0.1 ~ 50000mg/L (High concentration requires dilution; Low concentration gas sample up to 0.1ppm)
  • Temperature Range: Ambient to 1150°C
  • Temperature Control Precision: ±1°C
  • Air Supply Requirements: High purity argon: above 99.9%; High purity oxygen: above 99.9%
  • Power Supply: AC220V±22V, 50Hz±0.5Hz, 1500W
  • Dimensions: Host: 305(W)×460(D)×440(H)mm; Temp controller: 550(W)×460(D)×440(H)mm
  • Net Weight: Host: 20kg, Temp controller: 40kg
Concentration Values (ppm) Injection Quantity (µL) RSD (%)
0.2 20 50
5 10 10
50 10 5
100 10 3
5000 10 3
Standard Accessories
No. Item Unit Qty Remarks
1 Nitrogen analyzer host Set 1
2 Sulfur analyzer host Set 1
3 Filter Piece 1
4 Pyrolyzer Set 1
5 Silicone rubber pad Piece 10
6 Silicone rubber tube Centimeter 20
7 Rubber tube Meter 10
8 Thermocouple Piece 1
9 Power line Piece 3
10 Communication line Piece 1
11 Quartz tube * Piece 1 Comes with the installer
12 Injection needle Piece 4
13 Membrane type dryer Piece 1
14 Ozone generator Piece 1
15 Photomultiplier Piece 2
16 Ozone rid device Piece 1
17 Ultraviolet light Piece 1
18 Sulfur standard sample Piece 30
19 Nitrogen standard sample Piece 30
20 Special clamp for quartz cracking tube Piece 2
21 PC Set 1
22 Laser printer Set 1
23 Nitrogen reaction chamber Piece 1
24 Sulfur reaction chamber Piece 1
