BD-D5453-021Z fluorescence sulfur content tester
BD-D5453-021Z fluorescence sulfur content tester
Specifications
Brand Name :
SHUOBODA
Model Number :
BD-D5453-021Z
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/month
Delivery Time :
5~8 working days
Packaging Details :
Plywood packing
Measurement range :
0.1ppm～10000ppm
Lower detection limit :
2 ng
Measurable sample states :
liquid, gas (customer chooses liquid sampler).
Temperature control range :
RT ~ 1300℃
Temperature control accuracy :
±2℃
Power supply :
AC220V±10%
Description
BD-D5453-021Z Fluorescence Sulfur Content Tester
Product Overview

The BD-D5453-021Z fluorescence sulfur content tester utilizes pulsed ultraviolet fluorescence analysis method for precise sulfur content measurement in petroleum products, meeting national V and higher standard oil sulfur content detection requirements.

Applicable Standards

ASTM D5453, D6667, D7183, GB/T17930, GB/T11060, SH/T 0689, and related international standards.

Performance Characteristics
  • Advanced pulsed ultraviolet fluorescence analysis method with lower detection limit and higher accuracy
  • Windows Chinese operating platform with intuitive human-machine dialogue interface
  • Computer-controlled analysis process with data processing and real-time status display
  • Software stores 5,000 sample data with historical data query and graphical playback capabilities
  • International circuit design with imported components for reduced noise and enhanced sensitivity
  • Core components including membrane dryers, filters, xenon lamps, and photomultiplier tubes imported from US, Japan, and Europe
  • Premium imported heating furnace wire with extended service life and automatic over-temperature protection
  • Advanced double anti-leakage reaction chamber design for improved sensitivity and repeatability
  • Fast analysis speed (3-4 minutes per sample) with excellent precision and stability
  • Single-point calibration with adjustable high pressure, eliminating need for standard curve recalibration
  • Calibrated with US and Japanese standard samples for superior measurement accuracy
  • Open LIMS database management system for efficient data retrieval and management
Technical Specifications
Parameter Specification
Measurement Range 0.1 ppm - 10,000 ppm
Lower Detection Limit 2 ng
Sample States Liquid, Gas (with optional liquid sampler)
Temperature Control Range Room Temperature - 1300°C
Temperature Control Accuracy ±2°C
Repeatability Error 0.1-1.0 ppm: <±0.1 ppm
1-10 ppm: <10%
>10 ppm: <5%
Baseline Drift <2 μV/72h
Standard Reagents Sulfur standard 100 mg/L, 300 mg/L, 500 mg/L isooctane
Gas Requirements Argon: ≥99.995%
Oxygen: ≥99.99%
Host Dimensions 420 × 400 × 530 mm
Power Supply AC220V ±10%
Power Consumption 1500W
Temperature Controller 500 × 400 × 530 mm
Cooling Method Air Cooling
Standard Configuration

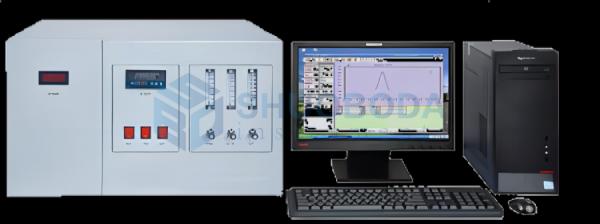

Complete system includes host computer (data acquisition and control system), cracking furnace, automatic sampler, computer with operating software, and printer.
