ASTM D1171 Ozone Test Chamber with 0℃~+80℃ Temperature Range and 10 ~ 1000pphm Ozone Concentration for Static Stretching Cable Aging

Specifications

Certification :

CE, ISO

MOQ :

Price :

2999

Model NO. :

UP-6122

Warranty :

1 Year

Additional Service :

Support Customer Customization

Custom Service :

OEM,ODM

Color Service :

Support Customer Customization

Size Service :

Support Customer Customization

Third-Party Calibration Service :

Support Customer Customization

Temperature Range :

0℃~+80 ℃ (Adjustable)

Accuracy :

0.1℃

Temperature Fluctuation :

≤±0.5℃

Temperature Uniformity :

±2℃

Ozone Concentration Accuracy :

10 ~ 1000pphm ± 10%

Transport Package :

Professional Export Wooden Box Packaging.

Specification :

Refer to the actual size specifications

Trademark :

None

Origin :

China

HS Code :

8514199000

Production Capacity :

10 Unit/Month

Description

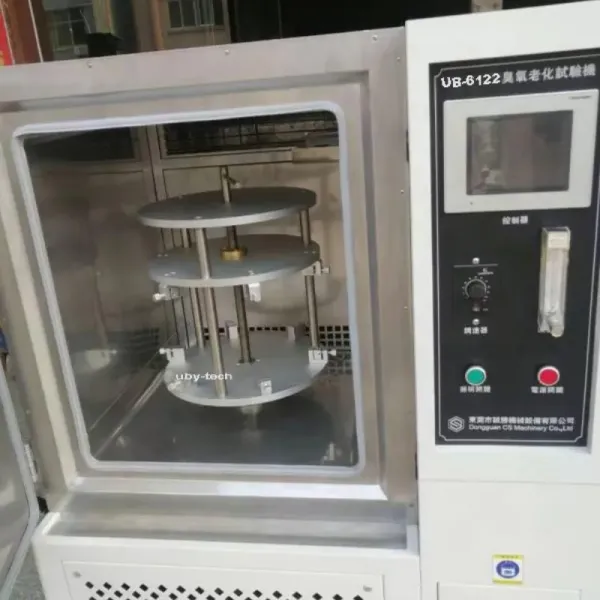

ASTM D1171 Ozone Test Chamber Static Stretching Cable Aging

Description:

ASTM D1171 static stretching cable aging ozone production chamber simulates and strengthens the conditions of atmosphere ozone, study the role of the law of ozone on rubber(cable), rapidly identification and evaluation of rubber resistance to ozone aging properties and protective efficacy of anti-ozone agents, and then take effective anti-aging measures to improve the life of the rubbers.

Specification:

Name	1000pphm Ozone Test Chamber Static Stretching Cable Aging
Model	UP-6122-250	UP-6122-500	UP-6122-800	UP-6122-1000
Internal dimensions(mm)	600600700	700800900	80010001000	100010001000
Overall dimensions(mm)	96011501860	118013502010	128015502110	150015502110
Temperature range	0ºC~100ºC
Humidity range	30%~98%RH
Clamps tensile stretch	5%~35%
Power&voltage	AC380V 50HZ
Standard	ISO1431;ASTM 1149;IEC 60903 ;IEC60811-403;JIS K6259;ASTM D1171
Speed rate for cooling	Ambient~0ºC within 20 min
Ozone concentration	1~1000pphm
Airflow rate	0~60L/min
Sample holder rotate speed	0~10r/min
Timing range	0~999 hours
Cooling system	Mechanical compression refrigeration system
Refrigerant	R404A, R23
Water supply system	Automatic water supply
Water supply system	Water purification system
Thermal Insulation	Polyurethane foam and insulation cotton
Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure Protection; Water Shortage Protection; Earth Leakage Protection

Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
