Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window
Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window
Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window
Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window
Specifications
Certification :
CE,ISO
MOQ :
1 Unit
Price :
$599~$8999
Place of Origin :
CHINA
Brand Name :
YOUBI
Payment Terms :
T/T; D/P; Wester Union; Paypal; Money Gram
Packaging Details :
Professional Export Wooden Box Packaging
Supply Ability :
30 Unit/month
Model Number :
UP-6195
Delivery Time :
5~15 work days
Product name :
Constant temperatrue and humidity chamber
Model NO. :
UP-6195
HS Code :
8514199000
Temperature Range :
-70°C~150°C
Humidity Range :
20%~98%Rh
Temp Uniformity :
±1.0°C
Humidity Fluctuation :
±2.5%R.H
Warranty :
1 Year
Custom Service :
OEM,ODM
Additional Service :
Support Customer Customization
Size Service :
Support Customer Customization
Specification :
Refer to the actual size specifications
Description

Programmable Temperature Humidity Test Chamber With Precision Temperature and Humidity Control

Uses:

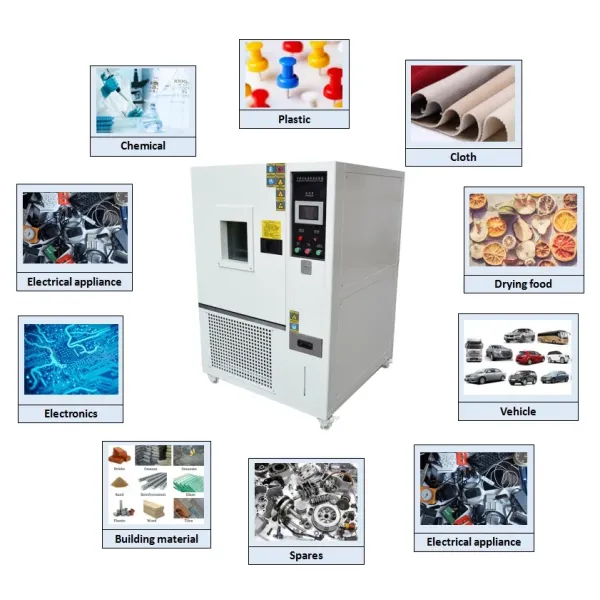

This Programmable Constant High-Low Temperature Humidity Testing Cabinet can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.


Related Standards :
IEC60068 2-1/2/3/30, GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566


Features:
1.Large glass window design, viewing angle in all directions, hollow electric plating film and anti-condensation design, built-in lights to facilitate the test sample state of real-time observation in the course of testing.
2.Large-size LCD display screen, simple operation, easy to edit programs. PID with automatic calculation function, show failure message .
3.Material quality of inner box is SUS304 # mirror-face stainless steel imported, and outer box is steel plate and the paint. Box body is processed shape using CNC machine tool, its shape is beautiful and fine.
4.An RS-232 communication interface, matching recorder, strong expandability.
5.Heat preservation material used glass fiber cotton of high-intensity PU foam and high density, which can avoid unnecessary energy loss.

Specification:

Product Model

UP-6195- 50

UP-6195- -100

UP-6195-250

UP-6195-500

UP-6195-1000A

UP-6195-1000B

UP-6195-2000

Volume of chamber(WxDxH)cm

56*30*30

63*40*40

70*60*60

102*70*70

158*80*80

91*100*110

200*110*90

Environmental temperature

5~35ºC

Environmental humidity

≤90%R.H

Requirements for Environmental

Cleanliness No pollutant source in the surrounding environment TVOC 500μg/m³

Adjustable range of temperature

10~40ºC high temperature cleaning 250ºC

Adjustable range of humidity

40~70%R.H(20ºC~30ºC)

Pressure

10±5pa

Temperature fluctuation

±0.3ºC(fluctuation)

Temperature deviation

±0.5ºC(deviation)

Humidity fluctuation

±2.5%R.H

Humidity deviation

±3%

Air exchange rate

0.2~5/h±5%(optional 0.2~3/h±5%)

Air velocity

0.1m/s 0.3m/s(Range)

Power

Alternating current 380V/50Hz three-phase power supply 4/5 wiring system

Starting power

5kw

6kw

8kw

10kw

15kw

15kw

20kw

Operating power

3kw

3.4kw

5kw

6kw

7kw

7kw

9kw

Rate of recovery

Formaldehyde,octanol,4 phenyl cyclohexene,dodecane and tetradecane have a recovery rate larger than 80%

Clean air system

Standard configuration

Background concentration of methanol

single VOC has a concentration smaller than 2 μg/m³,T VOC 20 μg m dust filtrated TVOC has a concentration smaller than 20μg/m³




Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window
Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window
Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window



Programmable Temperature Humidity Test Chamber with Precision Control and Large Glass Window
Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
