UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test
UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test
UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test
UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test
UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test
UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test
UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test
UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test
Specifications
Brand Name :
YOUBI
Model Number :
UP-6118
Place of Origin :
CHINA
Payment Terms :
T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability :
30 Unit/month
Delivery Time :
5-15 work days
Packaging Details :
Professional Export Wooden Box Packaging
Warranty :
1 Year
Size Service :
Support Customer Customization
Internal Material :
Stainless Steel304
Third-Party Calibration Service :
Support Customer Customization
Custom Service :
OEM,ODM
External Material :
Stainless Steel/Spray Paint
Specification :
Refer to the actual size specifications
Color Service :
Support Customer Customization
Additional Service :
Support Customer Customization
Certification :
CE,ISO
MOQ :
1 Unit
Price :
Negotiable
Product name :
Constant temperatrue and humidity chamber
Description
UP-6118 Reliable Stable Three Phase Thermal Shock Testing Chamber for Semiconductor Test
Product Overview

The UP-6118 Thermal Shock Testing Chamber is a state-of-the-art testing instrument engineered to assess the robustness of material structures and composite materials subjected to rapid and consecutive transitions between elevated-temperature and cryogenic-temperature environments. This chamber facilitates material evaluation within the most expedient time frame, determining the magnitude of thermal expansion and contraction, along with any concomitant chemical alterations or physical impairments.

UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test

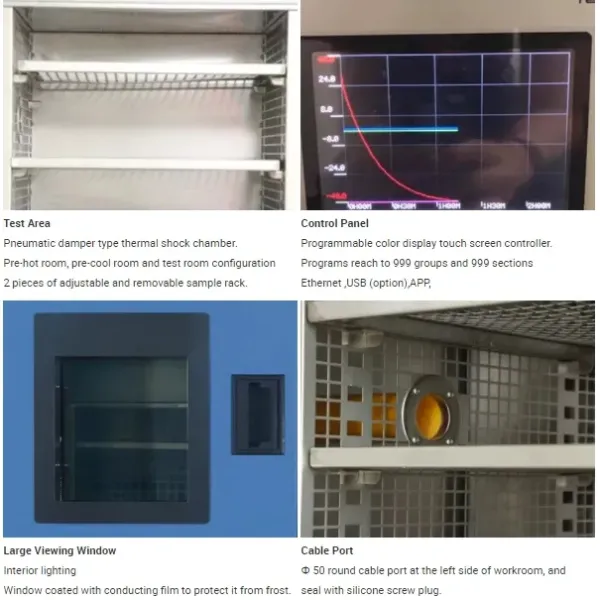

Key Features
  • High temperature groove, low temperature groove, and test groove are static
  • Shock method uses wind path changing to direct high and low temperature air to test area
  • Configurable rotation times and defrost times
  • Touch color liquid controller for easy operation and stability
  • High temperature accuracy using PID calculation methods
  • Selectable start-move position with high and low temperature rotation
  • Real-time test curve display during operation
  • Two-box structure conversion with fast speed and short recovery time
  • Strong refrigeration system with imported compressors for rapid cooling
  • Complete and reliable safety protection devices
  • High reliability design suitable for 24-hour continuous testing
Technical Specifications
Parameter Specification
Size (mm) 600 × 850 × 800
Temperature Range High greenhouse: ambient ~ +150°C
Low greenhouse: ambient ~ -50°C
Temperature Uniformity ±2°C
Temperature Conversion Time 10 seconds
Temperature Recovery Time 3 minutes
Material Shell: SUS304 stainless steel plate
Liner: SUS304 stainless steel plate
Refrigeration System Dual reciprocating compressors (water-cooled), French Taikang compressor group, environmentally friendly refrigerant
Control System Korea imported programmable temperature controller
Temperature Sensor PT100 × 3
Setting Range Temperature: -70.00 to +200.00°C
Resolution Temperature: 0.01°C / Time: 1 minute
Output Type PID + PWM + SSR Control mode
Simulation Load (IC) 4.5kg
Cooling System Water cooled
Compliance Standards GB, GJB, IEC, MIL corresponding test standards
Power Supply AC380V/50Hz Three-phase four-wire AC power
Expansion Features Diffuser and return air palate control device / CM BUS (RS-485) remote monitoring / LN2 liquid nitrogen quick cooling control
Product Gallery
UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test UP-6118 Stainless Steel 304 Thermal Shock Testing Chamber with 10s Temperature Conversion and Three Phase Power for Semiconductor Test
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization: Create technical drawings for confirmation, provide reference photos, and finalize customized solutions
  • Production & Delivery: Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and arrange timely shipping
  • Installation & Support: Provide field installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of environmental chambers and testing equipment. Every machine includes a 12-month warranty (extended to 14 months considering sea transportation). We offer free maintenance during warranty and provide technical support via email, phone, or video chat with solutions typically provided within 24-48 hours.
What is the delivery time?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements can be accommodated with special arrangements.
Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo on the equipment.
How do I install and operate the machine?
We provide English operation manuals and videos. Most machines are shipped fully assembled - you simply connect power and begin operation. On-site installation assistance is available when necessary.
