Precision Of 0.01ppm, Digital Display Of Concentration, High Sensitivity, Portable Leak Detector [LF-300]
Precision Of 0.01ppm, Digital Display Of Concentration, High Sensitivity, Portable Leak Detector [LF-300]
Specifications
Brand Name :
KSTONE
Model Number :
LF-300
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
1
Price :
$25000-$26000
Payment Terms :
T/T
Supply Ability :
10 per year
Delivery Time :
30 work days
Packaging Details :
Carton / Wooden Box
Measurement Range :
0.01ppm - 10000ppm
Accuracy :
0.01ppm
Min. Resolution :
0.01ppm
Gas and Electric Integrated Hose of the Detector :
Standard length is 3 meters (Can be customized as required, up to 10 meters)
Power Input Cable :
2 meters
Input Power :
220V±22V 50Hz±2Hz (External lithium battery inverter power supply is available)
Description
Precision Of 0.01ppm, Digital Display Of Concentration, High Sensitivity, Portable Leak Detector LF-300

The LF-300 utilizes low-voltage ionization in a high-frequency magnetic field, offering a radiation-free design for safety and reliability. Engineered without vulnerable components, it ensures minimal usage and maintenance costs, combined with long-term durability. An optional external lithium battery inverter supports field operations requiring mobile power.

Key Advantages

  • Ultra-High Sensitivity: Detects leaks as low as 0.01ppm with precise quantification.

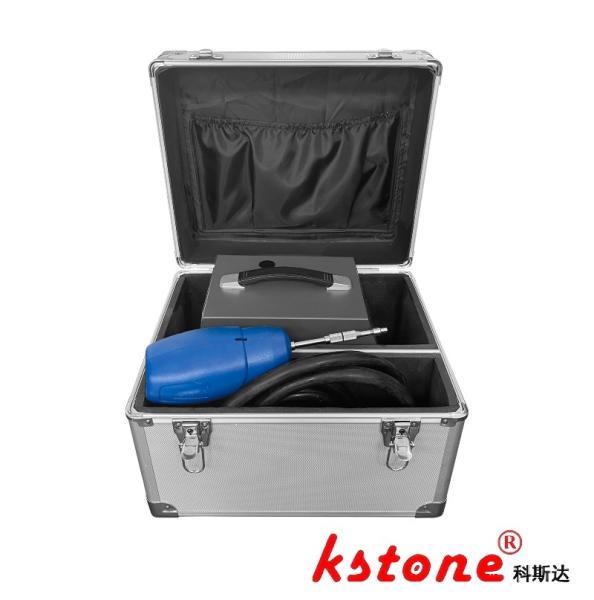

  • Portable Design: Lightweight detector (1.2kg) and compact main unit, housed in an aluminum anti-collision case for field mobility.
  • Reliable Performance: Fast response (<1s) and recovery from contamination, suitable for high-concentration SF6 environments.
  • User-Friendly Interface: Real-time visual and audio feedback via touchscreen and buzzer.

Technical Specifications

Parameter Details
Measurement Range 0.01ppm - 10,000ppm(v)
Measurement Accuracy 0.01ppm(v)
Minimum Resolution 0.01ppm(v)
"Poisoning" Recovery Time ≤10s in 99.99% SF6 environment
≤1s in 10% SF6 environment
Response Time ≤0.5s for 10ppm
≤1s for 1ppm
Indication Methods - Touchscreen: Direct ppm display (0.01ppm resolution)
- LCD digital: Concentration-proportional numerical changes
- Buzzer: Frequency increases with concentration
Hose Length Standard 3m (customizable up to 10m)
Power Supply 220V±22V 50Hz±2Hz (compatible with external lithium battery inverter)
Operating Conditions Temperature: 5℃-50℃
Humidity: ≤95%
Power Consumption 180-220W
Weight & Dimensions - Detector: 1.2kg
- Main unit: 7.1kg
- Main unit size: 310×168×200mm
- Aluminum case: 3.0kg, 370×320×270mm
