Adjustable Quantitative SF6 Gas Sensor Dilo Leak Detector Equipment [LF-03-FR]
Adjustable Quantitative SF6 Gas Sensor Dilo Leak Detector Equipment [LF-03-FR]
Specifications
Brand Name :
KSTONE
Model Number :
LF-03-FR
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
5
Price :
$10000-$12000
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
7-10 work days
Packaging Details :
Carton / Wooden Box
Detection Principle :
NDIR non-dispersive infrared (dual-beam)
Measuring Range :
0–1000 PPM (customizable options available)
Detection Accuracy :
≤±2% F.S. (relative to specified range)
Minimum Detection Limit :
0.1ppm
Resolution :
0.1ppm
Response Time :
≤3 seconds
Preheating Time :
≤3 minutes
Working Humidity :
≤90%RH
Description
Adjustable Quantitative SF6 Gas Sensor Dilo Leak Detector Equipment LF-03-FR

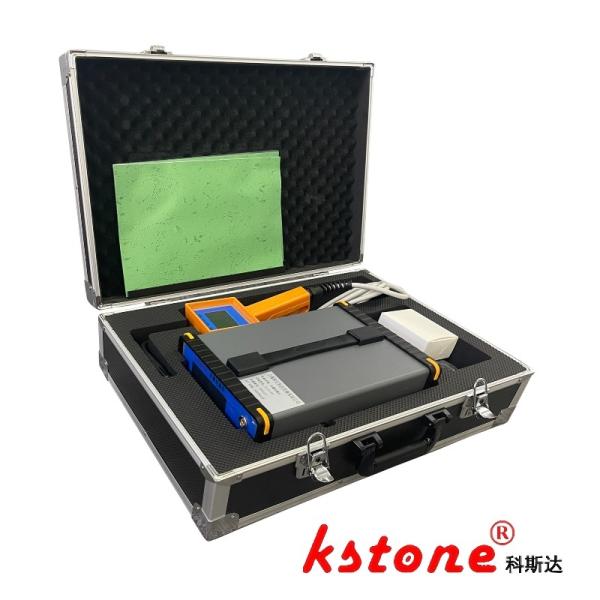

The LF-03-FR SF6 gas leak detector is a portable next-gen solution for high-voltage equipment (GIS, circuit breakers, switches) leak detection. Equipped with an imported NDIR dual-beam infrared sensor and advanced calibration technology, it identifies leaks as low as 0.1ppm with ≤±2% F.S. accuracy, delivering results in just 1 second.

Key Advantages:
  • Cost-Effective Alternative: Replaces Wika/Dilo detectors without compromising performance
  • Long-Lasting Operation: 6+ hours of battery life for extended field use
  • Intuitive Interface: Color touchscreen LCD with real-time audio-visual alarms
  • Advanced Algorithms: Hood algorithm for leak rate calculation and long-term calibration stability
  • Standard Compliance: Meets GB/T11023-2018 requirements as a national standard drafting unit product

Ideal for power utilities, maintenance teams, and manufacturing sectors, the LF-03-FR combines speed and precision for reliable SF6 leak detection.

Technical Specifications Table
Parameter Description
Model LF-03-FR
Detection Principle NDIR non-dispersive infrared (dual-beam)
Measuring Range 0–1000 PPM (customizable options available)
Detection Accuracy ≤±2% F.S. (relative to specified range)
Minimum Detection Limit 0.1ppm
Resolution 0.1ppm
Response Time ≤1 second
Preheating Time ≤3 minutes
Sampling Method Handheld suction type with built-in pump
Display 800×480 main color LCD + 320×240 handle LCD
Operation Mode Resistive touch screen
Power Supply Rechargeable lithium battery / AC220V/50Hz
Working Humidity ≤90%RH
Compliance GB/T11023-2018


Why Choose Kstone?

1. Top-tier Technical Authority

Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications

2. One-stop SF6 Solution Range

Portable detectors to recovery systems | 100% accredited by national labs

3. Customizable Turnkey Services

Tailored equipment design | On-site installation & debugging

4. Global Support & Proven Reputation

1000+ global clients | Localized after-sales service

5. Eco-compliant & Cost-efficient

Aligns with EU F-gas Directive | Zero-emission SF6 handling
