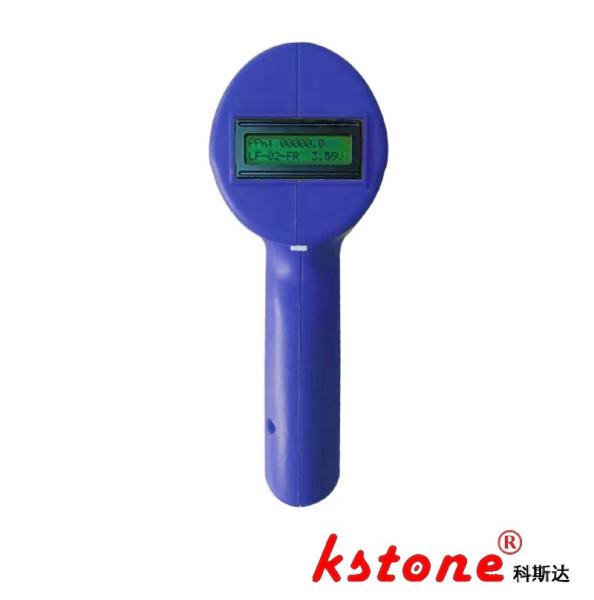

Portable SF6 Leak Detector - Dual-Wave Infrared, 0.1ppm Sensitivity LF-02-FR
Portable SF6 Leak Detector - Dual-Wave Infrared, 0.1ppm Sensitivity LF-02-FR
Specifications
Brand Name :
KSTONE
Model Number :
LF-02-FR
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
1
Price :
$4000-$4500
Payment Terms :
,T/T
Supply Ability :
100
Delivery Time :
10 work days
Packaging Details :
Carton / Wooden Box
Features :
Automatic zeroing,, audible and visual alarms
Measurement Range :
0-1000 ppm
Storage Temperature :
-20°C to +40°C
Response Time :
1 second
Display :
LCD
Weight :
0.9kg
Accuracy :
± 2% of reading
Sensitivity :
0.1ppm
Warranty :
2 years
Certifications :
CE, CSA, UL
Dimensions :
233 x 125 x 56 mm
Power Supply :
li batteries or AC/DC adapter
Description

Portable SF6 Leak Detector - Dual-Wave Infrared, 0.1ppm Sensitivity LF-02-FR

Designed for outdoor inspection of SF6 gas-insulated equipment (GIS, ring main units, circuit breakers), this handheld detector uses dual-wave NDIR technology for precise quantitative leak detection. With 0.1ppm sensitivity, it resists "poisoning" from high-concentration SF6, ensuring reliable performance. Features include:
  • Instant numerical concentration display with battery voltage
  • Audible buzzer feedback for concentration changes
  • 8+ hour battery life (large-capacity lithium battery)
  • Zero cross-sensitivity to other gases; no poisoning risk
  • Manually controlled air pump for extended membrane pump life
  • PM1.0-2.5 particle filter for sensor protection
  • Imported infrared sensor (10-year lifespan)
  • Automatic zero-point drift correction
Technical Specs Details
Range 0-1000ppmv (Optimal: 0.1-100ppmv)
Accuracy ±2% (0-100ppmv)
Response Time ≤3 seconds
Preheating Time ≤60 seconds
Sampling Method 5-8ml/s diaphragm pump
Working Temperature -10℃~60℃
Working Humidity 0-99%


Ideal for SF6 and halogen gas qualitative detection (calibrated for SF6). Lightweight (0.4kg), portable, and explosion-proof box included.
