SF6 Leak Detector – NDIR Gas Sensor for GIS and Switchgear
SF6 Leak Detector – NDIR Gas Sensor for GIS and Switchgear
Specifications
Brand Name :
KSTONE
Model Number :
LF-1D+
Certification :
ISO9000
Place of Origin :
Shanghai
Price :
$2000-$3500
Payment Terms :
,T/T
Supply Ability :
1000 per year
Delivery Time :
7-10 Days
Packaging Details :
Carton / Wooden Box
MOQ :
5
Accuracy :
0.01ppm
Detection Range :
0.01ppm-1000ppm
Response :
≤1 second in 100ppm
Measurement Accuracy :
≥10
Description
SF6 Leak Detector – NDIR Gas Sensor for GIS and Switchgear
LF-1D+

The SF6 Leak Detector is a high-precision gas detection instrument designed for SF6 gas leakage detection in high voltage electrical equipment such as GIS, circuit breakers and gas insulated switchgear.

Using advanced NDIR infrared gas sensing technology, the device provides fast and accurate detection of SF6 gas concentrations, helping engineers quickly locate leakage points during equipment manufacturing, installation and maintenance.

The detector is widely used by:

  • Power utilities
  • High voltage switchgear manufacturers
  • GIS maintenance service companies
  • Electrical testing laboratories
Key Features
High Sensitivity Leak Detection

Detect extremely small SF6 gas leaks to ensure the safe operation of high-voltage equipment.

NDIR Infrared Gas Sensor

Advanced non-dispersive infrared technology ensures high measurement accuracy and strong anti-interference capability.

Fast Response

Real-time detection allows engineers to quickly locate leakage points during inspection.

Portable Design

Compact and lightweight structure suitable for substation and field maintenance work.

Digital Display

Real-time concentration display with intuitive operation for engineers.

Explosion-Proof Design

Suitable for industrial environments requiring safe gas detection.

Core Advantages
High-Sensitivity & Accurate Detection

Adopts advanced low-voltage ionization technology combined with a high-frequency magnetic field, enabling ultra-precise capture of trace SF6 gas leaks with a minimum detectable concentration of 0.01ppm and a wide detection range of 0.01ppm-1000ppm. This core technical advantage delivers significantly superior detection performance compared with conventional leak detectors based on the infrared dual-wave principle.

Ultra-Fast Response & Efficient Localization

Boasts an ultra-rapid response speed of ≤1 second in a 100ppm SF6 gas environment. The instant detection capability allows for quick and accurate localization of leakage points on-site, effectively eliminating time-consuming repeated detection and greatly improving overall SF6 leak inspection efficiency for high-voltage equipment.

Intelligent Digital Display & Intuitive Operation

Equipped with a high-definition LCD screen that real-time displays the actual SF6 leakage concentration value, with numerical changes that directly correspond to concentration fluctuations for clear and intuitive data reading. The device is complemented by an intelligent buzzer with variable frequency prompts—buzzer frequency changes with the increase of gas concentration, providing dual audio-visual prompts for operators. This humanized design simplifies on-site operation and reduces misjudgment risks, suitable for various complex industrial detection scenarios.

Enterprise Credibility & Product Compliance

As the drafting unit of China's national standard GB/T11023-2018 High Voltage Switchgear - SF6 Gas Sealing Test Method, we have core technical discourse power and industry-leading R&D capabilities in the field of SF6 gas detection. The LF-1D+ SF6 Quantitative Leak Detector is fully designed and manufactured in accordance with strict industrial-grade detection standards, with product performance and technical parameters fully compliant with national standard requirements.

Widely and maturely applied in SF6 leak detection and precise leakage point localization for various power equipment, including high-voltage switchgear, SF6 circuit breakers, gas-insulated switchgear (GIS) and other core high-voltage electrical equipment scenarios. The product has been recognized by the power industry for its stable performance and reliable detection results, becoming a trusted professional tool for power grid operation, maintenance and safety inspection.

Technical Specifications
Technical Specifications Detailed Parameters
Measurement Accuracy ≥10 (capable of detecting 0.01ppm SF6 concentration)
Physical Dimensions 430×275×429mm (Length×Width×Height); net weight approximately 19.8kg
Durable Design 4m vacuum hose (extendable to 6m) and 2m power cable (extendable to 6m), suitable for complex detection environments
Operating Conditions Stable performance in 5℃-50℃ temperature range and humidity >80%; continuous working time ≤8 hours
SF6 Leak Detector – NDIR Gas Sensor for GIS and SwitchgearSF6 Leak Detector – NDIR Gas Sensor for GIS and Switchgear
Applications of SF6 Leak Detector

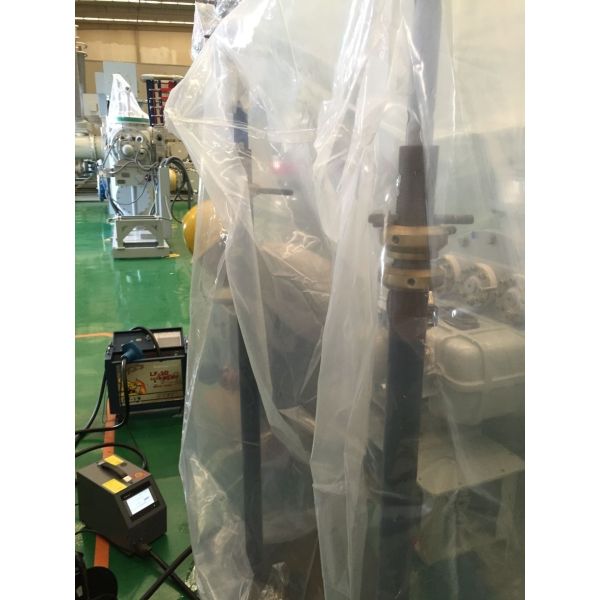

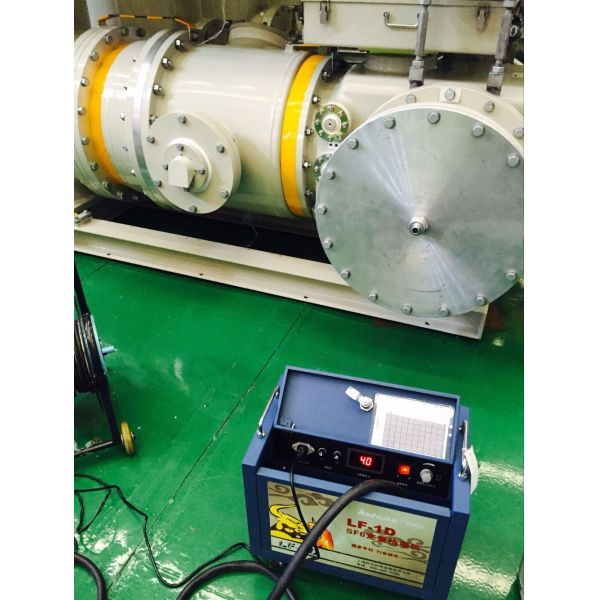

GIS Leak Detection

Gas insulated switchgear uses SF6 as an insulation medium.Even small leaks may affect equipment reliability.

The SF6 leak detector helps engineers locate micro leaks in GIS equipment quickly.

Switchgear Manufacturing

Switchgear manufacturers use leak detectors during production testing to ensure equipment gas tightness.

Substation Maintenance

Power utilities use portable SF6 leak detectors for routine inspection of high voltage equipment.

Why Choose an NDIR SF6 Leak Detector

NDIR infrared sensors provide:

  • High accuracy gas detection
  • Strong resistance to interference
  • Stable long-term operation

This technology is widely used for quantitative gas leak detection in SF6-filled equipment.

Customization Options

The SF6 leak detector can be customized according to customer requirements, including:

  • Different power supply standards
  • Detection range configuration
  • Interface language
  • Additional alarm functions

Customization ensures compatibility with different technical standards and industrial environments worldwide.

Related SF6 Equipment

For complete SF6 gas handling solutions, we also provide:

  • SF6 Gas Recovery Unit
  • SF6 Gas Analyzer
  • SF6 Gas Filling Equipment
  • SF6 Vacuum Pumping System
Why Choose Kstone?
  • 1. Top-tier Technical Authority
    Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications
  • 2. One-stop SF6 Solution Range
    Portable detectors to recovery systems | 100% accredited by national labs
  • 3. Customizable Turnkey Services
    Tailored equipment design | On-site installation & debugging
  • 4. Global Support & Proven Reputation
    1000+ global clients | Localized after-sales service
  • 5. Eco-compliant & Cost-efficient
    Aligns with EU F-gas Directive | Zero-emission SF6 handling
Request a Quote

If you are looking for a reliable SF6 leak detector for GIS or switchgear, please contact us for more information.

Our engineers can provide:

  • Technical consultation
  • Product recommendation
  • Competitive quotation
