Multi Gas Electrochemical Sf6 Gas Monitor Sniffer Leak Detector IP65 Waterproof [LF-01-FR]
Multi Gas Electrochemical Sf6 Gas Monitor Sniffer Leak Detector IP65 Waterproof [LF-01-FR]
Specifications
Brand Name :
KSTONE
Model Number :
LF-01-FR
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
5
Price :
$2000-$2500
Payment Terms :
T/T
Supply Ability :
100 per year
Delivery Time :
10 work days
Packaging Details :
Carton / Wooden Box
Accessories :
Carrying case, Extend the hose, spare filters
Warranty :
1 year
Power Supply :
6000 mAh rechargeable lithium battery
Weight :
0.5kg
Display :
LCD
Humidity :
0–95%RH
Description
Multi Gas Electrochemical Sf6 Gas Monitor Sniffer Leak Detector IP65 Waterproof LF-01-FR
I. Product Features
  1. Versatile Electrochemical Sensing

    Equipped with electrochemical sensors, the instrument enables precise detection of toxic and combustible gases, with a filtering device to remove oil, water, and dust impurities.

  2. User-Friendly Design
    • 3.5-inch HD color screen for clear data presentation.
    • One-key hardware power control to minimize power consumption.
    • Optional long-handle suction probe tube for extended reach.
    • Comes with a leather shoulder bag for convenient carrying.
  3. Comprehensive Functions
    • Simultaneous display of numerical data and concentration curves.
    • Adjustable high/low speed air pump for optimized sampling.
    • Simultaneous detection of up to 4 electrochemical gases (optional).
    • Optional external Bluetooth printer for on-site data printing.
    • Automatic conversion between multiple gas units, Chinese/English display switching.
    • Large-capacity data storage (customizable) with Micro-USB and Android cable for data transfer.
    • Suitable for harsh environments with high temperature, humidity, and dust (with sampling probe gun).
II. Technical Parameters
General Specifications:
  • Dimensions: (H x W x D) 231*86*52mm
  • Weight: ~500g
  • Pump Flow Rate: 0–500 cc/Min (adjustable)
  • Display: 3.5-inch color screen (480*320 resolution)
  • Display Content: Gas formula, measured value, unit, concentration curve, battery status, time, alarm/fault info
  • Alarms: Buzzer, red indicator light, LCD prompt, low battery alarm
  • Data Storage: 8G SD card (standard), optional 16G/32G; customizable recording interval
  • Communication: USB connection for TXT data download
  • Printing: Optional external Bluetooth printer
  • Power: 6000 mAh rechargeable lithium battery (Micro-USB 5V/2A charger)
  • Environment:
    • Humidity: 0–95%RH (non-condensing; optional filter for high humidity)
    • Temperature: -20℃~50℃ (up to 1200℃ with flue gas probe gun)
  • Certifications: Ex ia IIC T4 (explosion-proof), IP65 (protection level)
III. Application Scenarios

Petroleum, petrochemical, metallurgy, chemical industry, fire protection, gas industry, environmental protection, power, telecommunications, papermaking, printing and dyeing, sewage treatment, food brewing, scientific research, education, national defense.

IV. Instrument Configuration

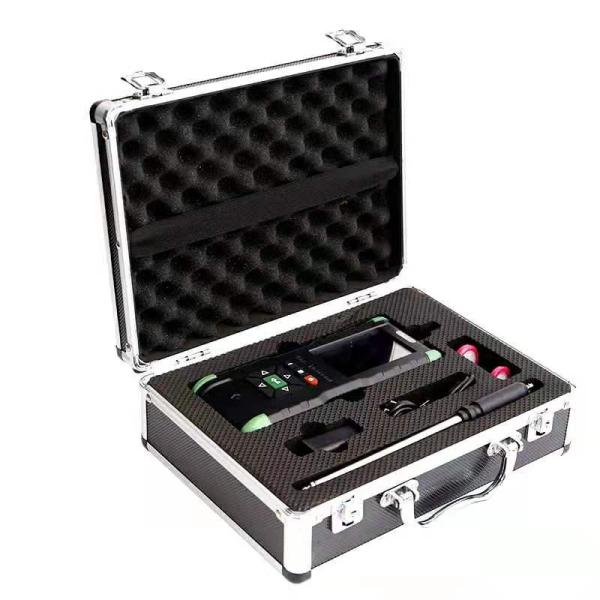

  • Standard: Detector main unit, operation manual, detection report, certificate of conformity.
  • Optional Accessories: Standard gas, sampling probe tube, external Bluetooth printer, etc.
V. Sensor Specifications (Electrochemical Principle)
Measured GasMeasuring Range (Optional)Sensor Type
Carbon Monoxide (CO)0–200/1000ppmElectrochemical
CO (with H2 Compensation)0–200/1000ppmElectrochemical
Hydrogen Sulfide (H2S)0–50/100/200/1000/5000ppmElectrochemical
Oxygen (O2)0–25%volElectrochemical
Nitrogen Dioxide (NO2)0–20/500ppmElectrochemical
Nitric Oxide (NO)0–100/1000ppmElectrochemical
Sulfur Dioxide (SO2)0–20/100/2000ppmElectrochemical
Chlorine (Cl2)0–20/200/2000ppmElectrochemical
Ammonia (NH3)0–100/1000/5000ppmElectrochemical
Hydrogen (H2)0–1000/10000/40000ppmElectrochemical
H2 (with CO Compensation)0–1000ppmElectrochemical
Phosphine (PH3)0–5/20/1000ppmElectrochemical
Formaldehyde (CH2O)0–10/50/1000ppmElectrochemical
Ozone (O3)0–5/20/100/1000ppmElectrochemical
Fluorine (F2)0–1ppmElectrochemical
Hydrogen Fluoride (HF)0–10ppmElectrochemical
Hydrogen Chloride (HCl)0–20/200/1000ppmElectrochemical
Ethylene Oxide (ETO)0–20/100ppmElectrochemical
Silane (SiH4)0–50ppmElectrochemical
Chlorine Dioxide (ClO2)0–20/200/2000ppmElectrochemical
Hydrogen Cyanide (HCN)0–100ppmElectrochemical
Ethylene (C2H4)0–10/200/1500ppmElectrochemical
Hydrogen Peroxide (H2O2)0–100/500/2000ppmElectrochemical
Combustible Gas (EX)0–100%LELCatalytic Combustion
Tetrahydrothiophene (C4H8S)0–50mg/m³Electrochemical
Volatile Organic Compounds (VOC)0–20/200/2000/10000ppmPID Photoionization
Why Choose Kstone?
  • 1. Top-tier Technical Authority
    Standard-setting enterprise | 0.01ppm precision SF6 leak detector | Multiple patents & certifications
  • 2. One-stop SF6 Solution Range
    Portable detectors to recovery systems | 100% accredited by national labs
  • 3. Customizable Turnkey Services
    Tailored equipment design | On-site installation & debugging
  • 4. Global Support & Proven Reputation
    1000+ global clients | Localized after-sales service
  • 5. Eco-compliant & Cost-efficient
    Aligns with EU F-gas Directive | Zero-emission SF6 handling
