The Best Tool For Finding Leaks, With Fast Response And Sensitivity Up To 0.01ppm, Used By Thousands Of Factory Customers In China [LF-1D+]
The Best Tool For Finding Leaks, With Fast Response And Sensitivity Up To 0.01ppm, Used By Thousands Of Factory Customers In China [LF-1D+]
Specifications
Brand Name :
KSTONE
Model Number :
LF-1D+
Certification :
ISO9000
Place of Origin :
Shanghai
Price :
$3000-$3200
Payment Terms :
T/T
Supply Ability :
100 per year
Delivery Time :
7-10 work days
Packaging Details :
Carton / Wooden Box
MOQ :
5
Sensitivity :
0.01 ppm
Measurement Range :
0.01-1000 ppm
Warranty :
1years
Display :
Digital LCD
Response Time :
≤1 second in 100ppm
Physical Dimensions :
430×275×429mm
Description

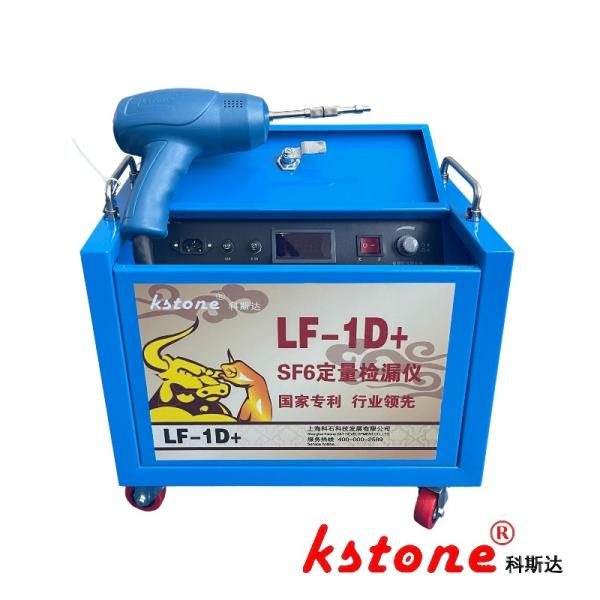

The Best Tool For Finding Leaks, With Fast Response And Sensitivity Up To 0.01ppm, Used By Thousands Of Factory Customers In China LF-1D+

Key Features

  • Ultra-Sensitive Detection:0.01ppm minimum detection limit (range: 0.01–1000ppm) via low-voltage ionization technology, outperforming infrared dual-wave detectors in sensitivity.
  • Rapid Response:≤1 second reaction time to 100ppm SF6, enabling fast leakage point localization in high-voltage switchgear and power equipment.
  • Intuitive Operation:LCD digital display with real-time concentration readings and variable buzzer alerts for easy leak assessment.

Industry Credibility

As the drafter of GB/T11023-2018 national standard, this detector ensures industrial-grade reliability for cost-effective, low-maintenance SF6 leak testing in electrical equipment. Ideal for utilities, manufacturing, and energy sectors.

Optimization Notes

  • The best tool for finding leaks.
  • Data-Driven Emphasis:Bold key metrics (0.01ppm, ≤1s) to highlight technical superiority.
  • SEO-Friendly Keywords:Incorporates "SF6 leak detector", "high-voltage switchgear", and "national standard" naturally.
  • Application Focus:Links technical features directly to utility and industrial use cases.
Technical Specifications Table

Parameter Details
Measurement Accuracy ≥10, detects SF6 concentration as low as 0.01ppm
Measurement Range 0.01ppm – 1000ppm
Response Time ≤1 second for 100ppm SF6 gas
Indication Method LCD digital display with real-time concentration readings; buzzer frequency varies with leakage severity
Vacuum Hose 4m (extendable to 6m)
Power Cable 2m (extendable to 6m), 220V±22V, 50Hz±2Hz
Dimensions 430×275×429mm (L×W×H)
Net Weight ~19.8kg
Packaging Foam carton
Continuous Working Time ≤8 hours
Operating Temperature 5℃ – 50℃
Humidity Resistance Operates in environments with humidity >80%
Power Consumption 250W

Participate in the development of GB/T11023 standards

The Best Tool For Finding Leaks, With Fast Response And Sensitivity Up To 0.01ppm, Used By Thousands Of Factory Customers In China [LF-1D+]

The Best Tool For Finding Leaks, With Fast Response And Sensitivity Up To 0.01ppm, Used By Thousands Of Factory Customers In China [LF-1D+]

Invention patent for this type of leak detector

The Best Tool For Finding Leaks, With Fast Response And Sensitivity Up To 0.01ppm, Used By Thousands Of Factory Customers In China [LF-1D+]
