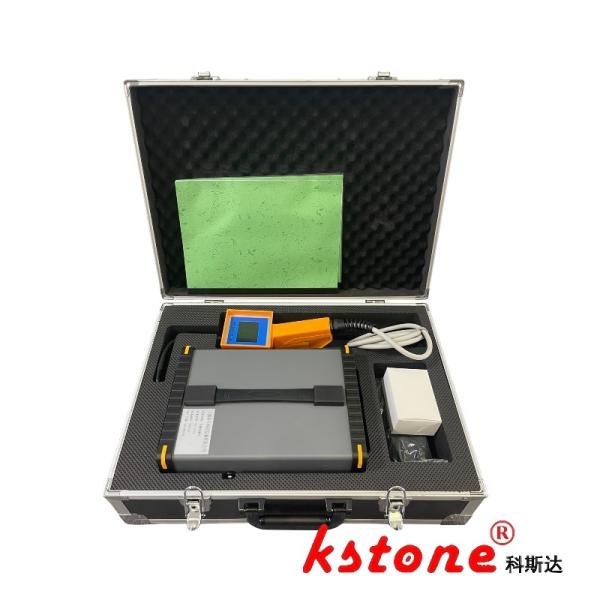

Portable SF6 Gas Sensor Leak Dilo Detector NDIR Infrared LF-03-FR
Portable SF6 Gas Sensor Leak Dilo Detector NDIR Infrared LF-03-FR
Specifications
Brand Name :
KSTONE
Model Number :
LF-03-FR
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
5
Price :
$2000-$100000
Payment Terms :
,T/T
Supply Ability :
1000 per year
Delivery Time :
7-10 work days
Packaging Details :
Carton / Wooden Box
Additional Features :
Data storage and transfer, audible and visual alarms
Response Time :
1 second
Sensitivity :
1ppm
Dimensions :
230 x 120 x 75 mm
Weight :
2.9 kg
Certifications :
CE, CSA, UL
Power Source :
4 AA batteries
Storage Temperature :
-20°C to 60°C
Description
Portable SF6 Gas Sensor Leak Dilo Detector NDIR Infrared LF-03-FR
The LF-03-FR SF6 Gas Leak Detector represents an advanced portable solution engineered to accurately identify SF6 leaks in high-voltage equipment including GIS, circuit breakers, and switches. Equipped with an imported NDIR infrared sensor and sophisticated calibration technology, this detector is capable of identifying leaks as low as 0.1ppm with an accuracy of ≤±2% F.S., and it provides results within 3 seconds.


Reasons to Select LF-03-FR:
✅ Serves as a cost-efficient and high-performance substitute for Wika/Dilo detectors
✅ Offers more than 6 hours of battery life via a rechargeable lithium battery, suitable for field operations
✅ Features a touchscreen interface and alarm functions, including a color LCD display with real-time audio-visual alerts
✅ Incorporates a hood algorithm and calibration system to calculate leak rates and maintain long-term reliability
✅ Complies with the GB/T11023-2018 standard, developed by China's national standard drafting unit


This detector is an ideal choice for power utilities, maintenance teams, and manufacturing enterprises. Place an order now to enhance the speed and precision of your SF6 leak detection capabilities!


Technical Parameters Details
Operating Voltage Lithium battery or AC220V/50Hz
Detection Principle NDIR non-dispersive infrared (double-beam)
Measuring Range 0-1000 PPM (customizable range available)
Detection Accuracy ≤±2% F.S. (relative to the specified measuring range)
Minimum Detection Limit 0.1 ppm
Highest Sensitivity 0.1 ppm
Resolution 0.1 ppm
Response Time ≤3S (response available)
Preheating Time ≤3 min
Detection Method Handheld suction type
Operating Humidity ≤90% RH
Display Mode - Main screen: 800×480 graphic color LCD
- Handle: 320×240 color LCD
Operation Mode Resistive touch screen


Instructions for the Main Interface During Startup
When you turn on the power switch on the panel, the instrument will enter the boot screen. Once the initialization process is complete, the main interface will be displayed, as shown in the following figure. This interface includes functions such as "SF6 Quantitative Leakage Detection", "Zero Calibration", "Cover Algorithm", "Settings", and "Device Information".
