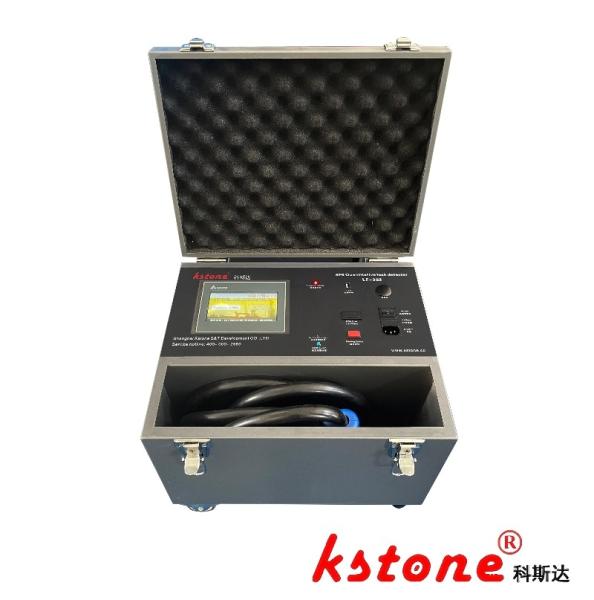

Oil Lubricated Telescopic Leak SF6 Gas Detector 0.01ppm With Digital LCD Display LF-302
Oil Lubricated Telescopic Leak SF6 Gas Detector 0.01ppm With Digital LCD Display LF-302
Specifications
Brand Name :
KSTONE
Model Number :
LF-302 SF6
Certification :
ISO9000
Place of Origin :
Shanghai
MOQ :
1
Price :
$30000-$31000
Payment Terms :
T/T
Supply Ability :
100 per year
Delivery Time :
30 work days
Packaging Details :
Carton / Wooden Box
Power Supply :
≤10s (99.99% SF6); ≤1s (10% SF6) Power Source AC 220V/50Hz or lithium battery (3-hour continuous operation)
Display :
Digital LCD
Accuracy :
±2% of full scale
Operating Temperature :
-10°C to 50°C
Storage Temperature :
-20°C to 60°C
Weight :
13kg
Model :
Leak Detector
Measurement Range :
0-1000ppm
Application :
Gas leak detection
Sensitivity :
0.01ppm
Detection Principle :
High frequency magnetic field low voltage ionization
Description

Oil Lubricated Telescopic Leak SF6 Gas Detector 0.01ppm With Digital LCD Display LF-302

Product Overview

The LF-302 represents an upgraded iteration of the LF-301, tailored for on-site SF6 leak detection with a telescopic handle design for enhanced mobility. Unlike the LF-303 (which features an oil-free pump), the LF-302 incorporates a double-stage oil-lubricated vacuum pump, delivering robust performance for industrial applications. Leveraging low-voltage ionization in a high-frequency magnetic field, it achieves 0.01ppm sensitivity, supported by set-value alarms (buzzer and concentration visual cues).

Key Upgrades vs. LF-301

  1. Telescopic Handle Design:Enhances portability for multi-site inspections.
  2. Extended Battery Life:50% longer runtime via optimized lithium battery.
  3. Advanced Dust Protection:PM1.0 filter screen prevents probe blockage, maintaining long-term accuracy.

Technical Parameters

Parameter Details
Vacuum Pump Type Double-stage Oil-Lubricated Pump (Customized)
Sensitivity 0.01ppm (SF6, highest precision)
Measurement Range 0.01–10,000ppm (optimal: 0.01–100ppm)
Response Time ≤0.5s (≥1ppm SF6 environment)
Recovery Time ≤10s (99.99% SF6); ≤1s (10% SF6)
Power Source AC 220V/50Hz or lithium battery (3-hour continuous operation)
Battery Life 50% longer than LF-301 (4-hour continuous use)
Protection Features PM1.0 filter screen (prevents dust blockage), fault self-check system
Sensor Lifespan 5–10 years (no radiation source)
Dimensions (Retracted) 400×340×320mm (L×W×H)
Weight 13.0±0.5kg
Warranty 1-year full coverage (including sensor)
