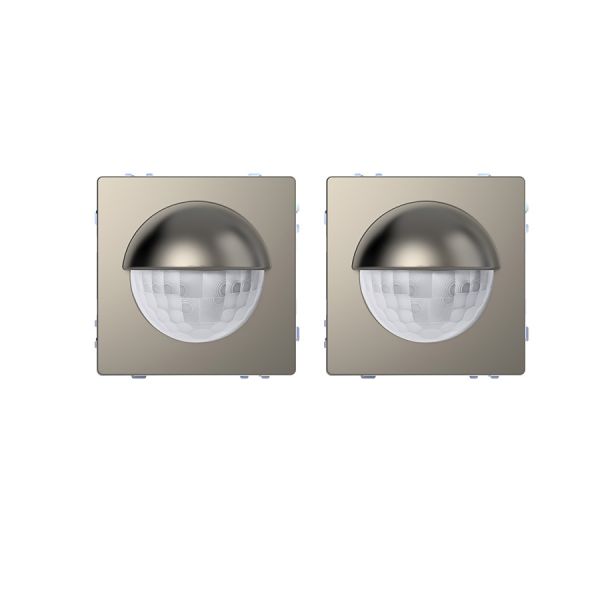

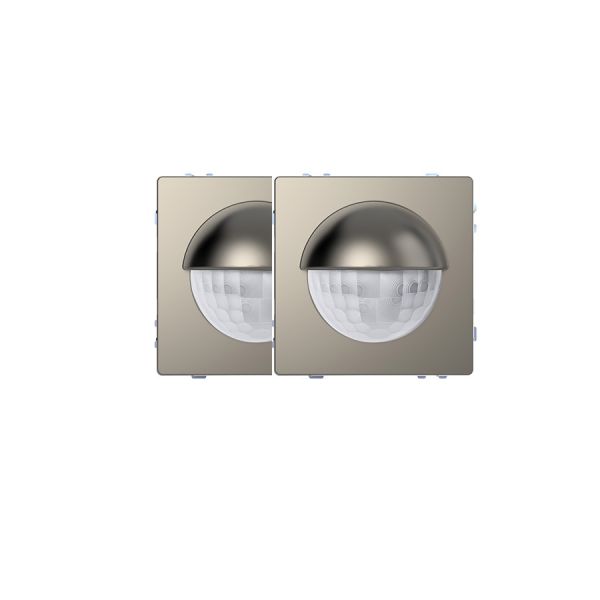

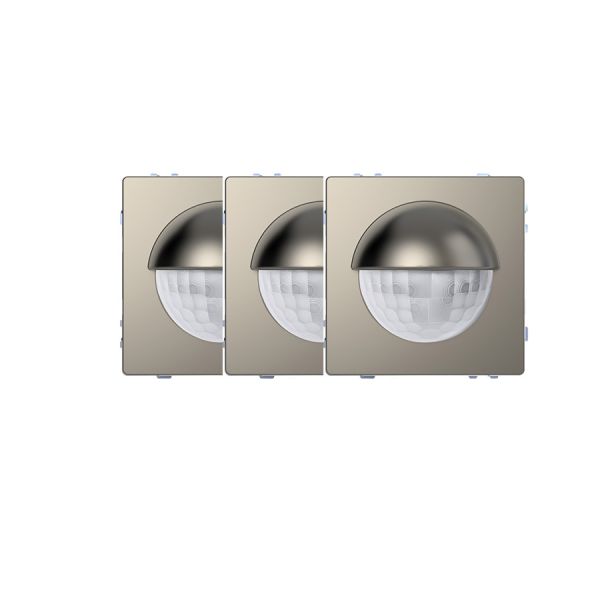

Anti Tamper Presence & Movement Detector MTN6302-6050 KNX For Building Automation System
Anti Tamper Presence & Movement Detector MTN6302-6050 KNX For Building Automation System
Anti Tamper Presence & Movement Detector MTN6302-6050 KNX For Building Automation System
Anti Tamper Presence & Movement Detector MTN6302-6050 KNX For Building Automation System
Anti Tamper Presence & Movement Detector MTN6302-6050 KNX For Building Automation System
Anti Tamper Presence & Movement Detector MTN6302-6050 KNX For Building Automation System
Specifications
Brand Name :
Schneide
Model Number :
MTN6302-6050
Certification :
RoHS/CE
Place of Origin :
EU
MOQ :
5
Payment Terms :
Western Union,T/T
Delivery Time :
7 Days
Packaging Details :
Carton
Brand :
Schneide
Power Supply :
KNX bus power supply
Color :
nickel metallic
Number of levels :
6
Angle of detection :
180°
Weight :
100 grams
Operating Temperature :
-10°C to 50°C
Usage :
Indoor
IP Rating :
IP20
Mounting height :
2.2 m or 1.1 m at half the range
Number of Detection Zones :
5
Description
MTN6302-6050 KNX Anti-Tamper Presence & Movement Detector BAS ARGUS Space Logic

Product Description


This is the indoor presence detector from Schneider's Space Logic KNX ARGUS series (Model: MTN6302-6050), specifically designed for Building Automation System (BAS) scenarios. It accurately detects subtle human movements and transmits data via the KNX bus to enable interlocked control of lighting, blinds, or heating systems.

Equipped with a built-in light sensor, the device automatically switches to artificial lighting when natural light is insufficient, and supports adjustable delay-off times to enhance energy efficiency. It also features anti-tamper functionality, an integrated coupling unit for 60mm standard mounting boxes, and 5 independently configurable motion detection zones with individually adjustable sensitivity. Additionally, it enables automatic brightness correction via internal or external light sensors, adapting to diverse scenario requirements.


Technical Specifications Table


Category Details
Detection Type Indoor presence detection, detects subtle movements
Communication Protocol KNX bus communication, transmits 1-bit/2-byte telegrams (supports operation, status, monitoring, safety, and fault functions)
Lighting Control Function Brightness-sensing linkage; automatically activates artificial lighting when natural light is insufficient; delay-off time adjustable
Mounting Method Flush mounting in 60mm standard mounting box; integrated coupling unit with anti-tamper design
Detection Angle 180°
Detection Range Up to 8m at the front (at 2.2m mounting height); up to 5m on each side (at 2.2m mounting height)
Mounting Height Recommended 2.2m, adjustable between 1.2m–2.0m
Time Adjustment Delay time: 1s–8min (potentiometer adjustment) or 1s–255h (ETS software adjustment)
Number of Detection Zones 5 configurable motion detection zones
Number of Motion Sensors 2 units, with separately adjustable sensitivity
Light Sensor Range 0–2000 Lux (adjustable via ETS software), supports internal/external light sensor connection
Power Supply KNX bus power supply
EMC Standards EN 60669-1, 2006/95/EC, 2004/108/EC
Accessories Mounting frame for 3-module box (MTN6720-0015), L-gang 3-module guide rail (MTN610-0015)
Package Contents Bus connection terminal, supporting plate, and cover segments to limit detection area
