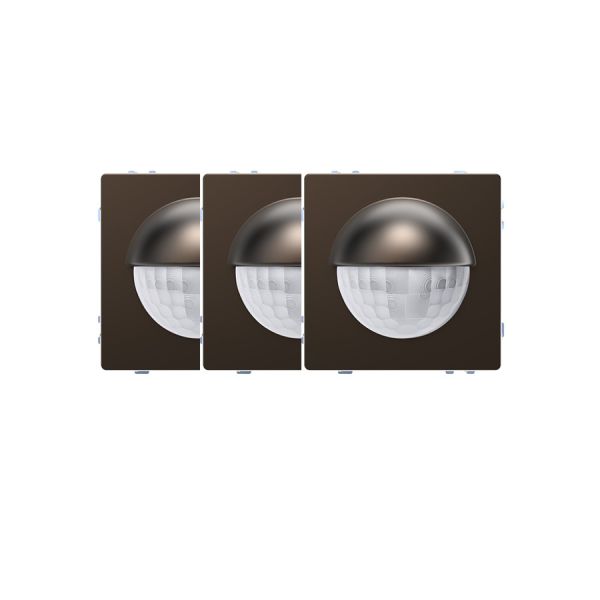

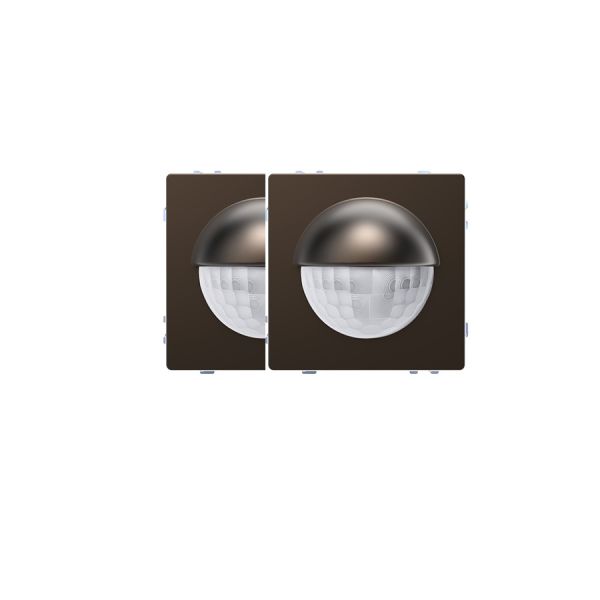

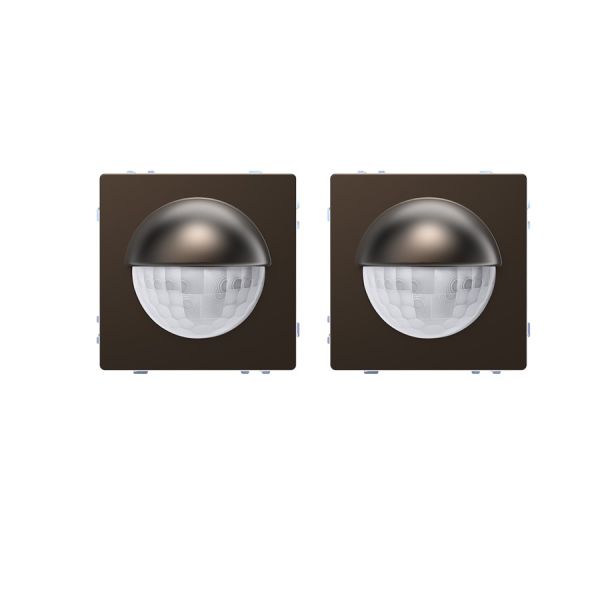

Schneide KNX 5 Configurable Zones High Sensitivity BAS Sensor MTN6302-6052
Schneide KNX 5 Configurable Zones High Sensitivity BAS Sensor MTN6302-6052
Schneide KNX 5 Configurable Zones High Sensitivity BAS Sensor MTN6302-6052
Schneide KNX 5 Configurable Zones High Sensitivity BAS Sensor MTN6302-6052
Schneide KNX 5 Configurable Zones High Sensitivity BAS Sensor MTN6302-6052
Schneide KNX 5 Configurable Zones High Sensitivity BAS Sensor MTN6302-6052
Specifications
Brand Name :
Schneide
Model Number :
MTN6302-6052
Certification :
RoHS/CE
Place of Origin :
EU
MOQ :
5
Payment Terms :
Western Union,T/T
Delivery Time :
7 Days
Packaging Details :
Carton
Brand :
Schneide
Power Supply :
KNX bus power supply
Color :
mocca metallic
Number of levels :
6
Angle of detection :
180°
Weight :
100 grams
Operating Temperature :
-10°C to 50°C
Usage :
Indoor
IP Rating :
IP20
Mounting height :
2.2 m or 1.1 m at half the range
Number of Detection Zones :
5
Material :
Palstic
Description
MTN6302-6052 Schneider KNX 5 Configurable Zones High Sensitivity BAS Building Automation Sensor


Product Overview

Schneider Space Logic KNX ARGUS Indoor Presence Detector (Model: MTN6302-6052) is a professional core component for Building Automation Systems (BAS), ideal for commercial offices, hotels, public facilities, retail spaces and corporate buildings. It accurately detects subtle human motion and transmits signals via KNX bus to enable seamless coordinated control of lighting, blinds and HVAC systems, boosting overall automation efficiency and energy optimization for smart building projects.

Advanced Lighting Control & Energy Efficiency


Equipped with an integrated light sensor, the detector automatically triggers artificial lighting when natural light is insufficient. Customizable delay-off times precisely optimize energy consumption and reduce operational costs, delivering tangible energy savings for all BAS application scenarios.

Core Key Features


  • Anti-tamper design for enhanced system security and operational reliability
  • Integrated coupling unit, perfectly fits 60mm standard mounting boxes (effortless installation)
  • 5 independently configurable motion detection zones with adjustable sensitivity
  • Automatic brightness correction (supports both internal & external light sensor connection)
  • Dual motion sensors with separate sensitivity adjustment for precise detection
  • High flexibility for adaptive use in diverse smart building automation scenarios

Technical Specifications


Specifications Parameters
Detection Type Indoor presence detection, high-precision subtle human motion detection
Communication Protocol KNX Bus (1-bit/2-byte telegrams; supports operation/status/monitoring/safety/fault)
Lighting Control Brightness-sensing auto-switch; adjustable delay-off time
Mounting Method Flush mount in 60mm standard box; integrated coupling unit + anti-tamper design
Detection Angle 180°
Detection Range 8m (front) / 5m (per side) @ 2.2m mounting height
Mounting Height 1.2–2.0m (2.2m recommended)
Time Adjustment 1s–8min (potentiometer) / 1s–255h (ETS software)
Motion Detection Zones 5 configurable zones
Motion Sensors 2 units, independently adjustable sensitivity
Light Sensor Range 0–2000 Lux (ETS-adjustable); internal/external sensor support
Power Supply KNX bus power supply
EMC Compliance EN 60669-1, 2006/95/EC, 2004/108/EC
Recommended Accessories 3-module box mounting frame (MTN6720-0015); L-gang 3-module rail (MTN610-0015)
Package Contents Bus connection terminal, mounting plate, detection area limiting cover segments
