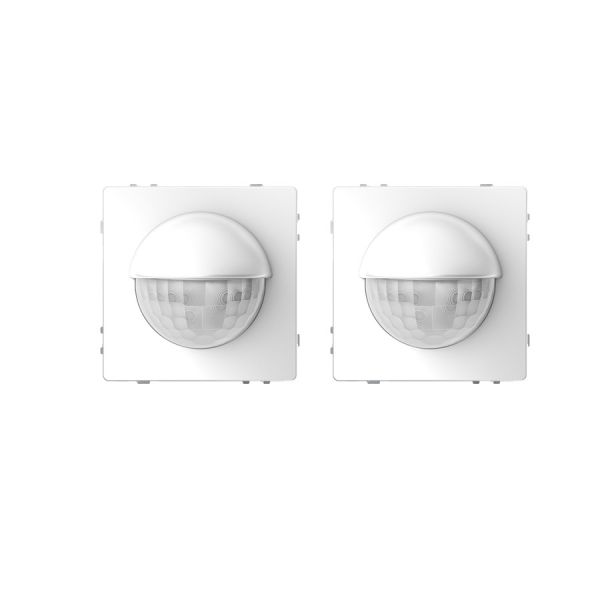

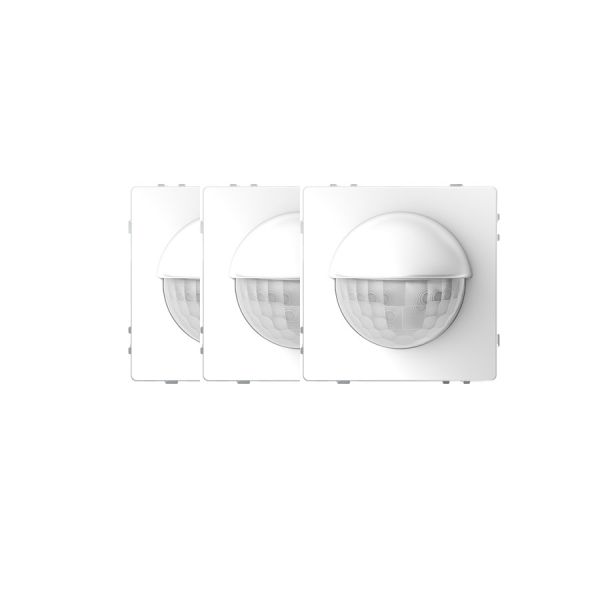

Schneide MTN6302-6035 KNX ARGUS Indoor Presence Detection Sensor 180degree 6 Levels
Schneide MTN6302-6035 KNX ARGUS Indoor Presence Detection Sensor 180degree 6 Levels
Schneide MTN6302-6035 KNX ARGUS Indoor Presence Detection Sensor 180degree 6 Levels
Schneide MTN6302-6035 KNX ARGUS Indoor Presence Detection Sensor 180degree 6 Levels
Schneide MTN6302-6035 KNX ARGUS Indoor Presence Detection Sensor 180degree 6 Levels
Schneide MTN6302-6035 KNX ARGUS Indoor Presence Detection Sensor 180degree 6 Levels
Specifications
Brand Name :
Schneide
Model Number :
MTN6302-6035
Certification :
RoHS/CE
Place of Origin :
EU
MOQ :
5
Payment Terms :
Western Union,T/T
Delivery Time :
7 Days
Packaging Details :
Carton
Color :
Lotus white
Number of levels :
6
Angle of detection :
180°
Weight :
100 grams
Operating Temperature :
-10°C to 50°C
Brand :
Schneide
Usage :
Indoor
IP Rating :
IP20
Mounting height :
2.2 m or 1.1 m at half the range
Material :
Plastic
Description
Schneider MTN6302-6035 KNX ARGUS Indoor Presence Detection Sensor 180° / 6 Levels

I. Product Description

The Schneider MTN6302-6035 is a high-performance indoor presence detection sensor from the KNX ARGUS series, designed specifically for professional building automation systems. As a core sensing component of Schneider's smart building solutions, it differs from standard motion sensors by accurately detecting subtle human movements (such as typing or sitting quietly) and sending signals via the KNX bus to enable linkage control of lighting, curtains, and HVAC systems.
Equipped with two independently adjustable presence sensors, the device integrates ambient light monitoring and anti-tamper functions. It supports flexible parameter configuration via ETS software, seamlessly integrating into the KNX ecosystem to provide precise, energy-efficient automation control solutions for smart buildings, balancing stability and scenario adaptability.

II. Technical Specifications

Parameter Category
Specifications
Basic Information
Brand: Schneider / Model: MTN6302-6035 / Series: KNX ARGUS / Type: Indoor Presence Detection Sensor / Communication Protocol: KNX
Detection Performance
Detection Type: Presence Detection (subtle movement recognition) / Detection Angle: 180° / Coverage Range: 8m×12m (recommended mounting height: 2.2m) / Number of Sensors: 2 (independently adjustable) / Maximum Detection Zones: 46
Light Monitoring
Built-in Light Sensor: 0-2000 Lux (stepless adjustment via ETS software) / Expansion Support: Compatible with external KNX light sensors
KNX System Functions
Event Trigger Blocks: 5 groups / Telegram Types: 1-byte / 2-byte KNX Telegrams / Local Functions: Sensitivity adjustment, area masking, safety pause, disable mode / Start-up Feature: Automatic ambient calibration
Installation & Adjustment
Installation Method: 60-size mounting box (integrated bus coupling unit) / Recommended Height: 2.2m (half-range adaptation: 1m-2.2m) / Timeout Adjustment: 1-8 minutes (potentiometer) / 1s-255h (ETS software) / Protection Design: Built-in anti-tamper mechanism
Compliance & Certifications
Complies with EU Low Voltage Directive (2006/95/EC) and EMC Directive (2004/108/EC)
Compatible Accessories
3-module mounting bracket (MTN627-0015), D-Life series frame (MTN610-65X, including bus connection terminals and support plate)
