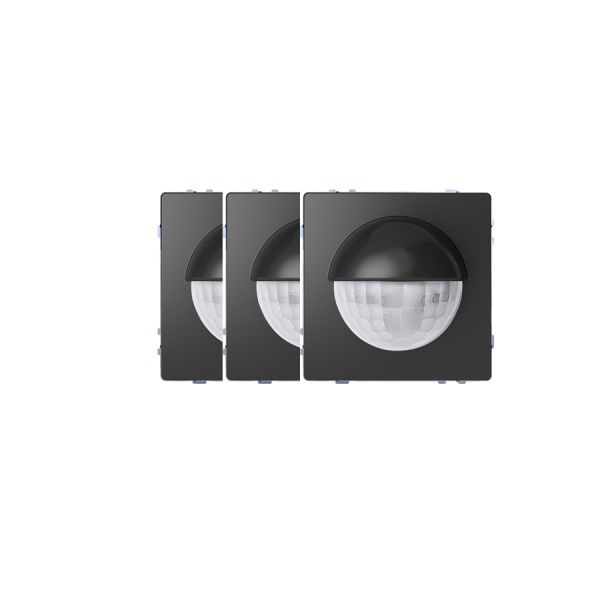

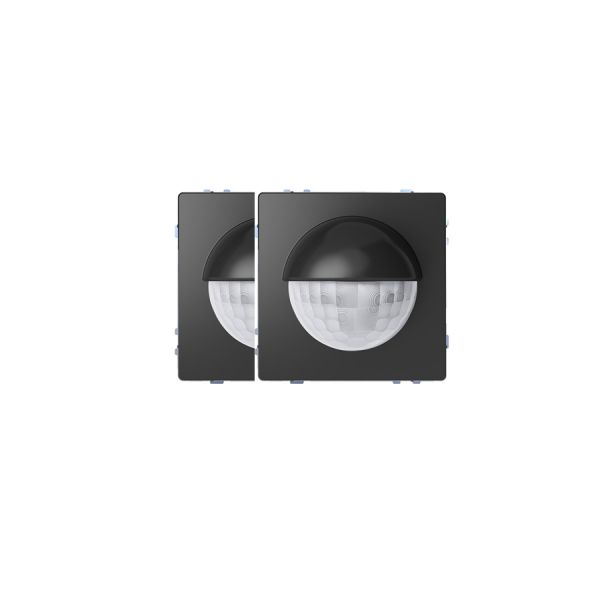

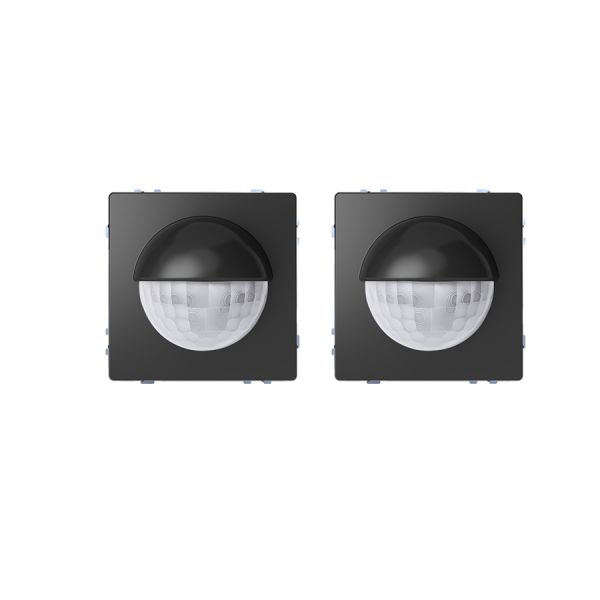

KNX ARGUS Anti Tamper BAS Movement Detector Presence Detection Sensor MTN6302-6034
KNX ARGUS Anti Tamper BAS Movement Detector Presence Detection Sensor MTN6302-6034
KNX ARGUS Anti Tamper BAS Movement Detector Presence Detection Sensor MTN6302-6034
KNX ARGUS Anti Tamper BAS Movement Detector Presence Detection Sensor MTN6302-6034
KNX ARGUS Anti Tamper BAS Movement Detector Presence Detection Sensor MTN6302-6034
KNX ARGUS Anti Tamper BAS Movement Detector Presence Detection Sensor MTN6302-6034
Specifications
Brand Name :
Schneide
Model Number :
MTN6302-6034
Certification :
RoHS/CE
Place of Origin :
EU
MOQ :
5
Payment Terms :
Western Union,T/T
Delivery Time :
7 Days
Packaging Details :
Carton
Color :
anthracite
Number of levels :
6
Angle of detection :
180°
Weight :
100 grams
Operating Temperature :
-10°C to 50°C
Brand :
Schneide
Usage :
Indoor
IP Rating :
IP20
Mounting height :
2.2 m or 1.1 m at half the range
Description
MTN6302-6034 Space Logic KNX ARGUS Presence Detection Sensor Anti-Tamper BAS Movement Detector

I.Product Description


The MTN6302-6033 is a high-performance indoor presence detection sensor from the KNX ARGUS series, designed for professional building automation systems. Unlike standard motion sensors, it detects subtle human movements (e.g., typing) and sends KNX signals to trigger lighting, blind, or HVAC control. It features dual independently adjustable sensors, integrated ambient light monitoring, and anti-tamper protection, integrating seamlessly with KNX ecosystems via ETS-configurable parameters for flexible, energy-efficient smart building automation.


II.Technical Specifications


Parameter Category Specification
Basic Info Model: MTN6302-6033

Series: KNX ARGUS

Type: Indoor Presence Sensor

Protocol: KNX
Detection Type: Presence (subtle movement)

Angle: 180°

Coverage: 8m×12m @ 2.2m height

Sensors: 2 (independent adjustment)

Zones: Up to 46
Light Monitoring Built-in: 0–2000 Lux (ETS-adjustable)

External: Compatible with KNX light sensors
KNX Functions 5 event trigger blocks

1-byte/2-byte telegrams

Local controls: Sensitivity, masking, safety pause

Self-calibrating start-up
Installation Mount: 60-size box (integrated bus coupling)

Height: 2.2m recommended

Timeout: 1–8 min (potentiometer) / 1s–255h (ETS)

Anti-tamper protection included
Compliance EU Low Voltage (2006/95/EC), EMC (2004/108/EC)
Accessories 3-module fixing frame (MTN627-0015), D-Life frame (MTN610-65X)


III. Typical Applications


  1. Intelligent Offices: Automatically triggers lighting/HVAC in workspaces, turning off artificial light when natural light is sufficient. Dual sensors cover large areas, with adjustable sensitivity to avoid false triggers.
  2. Retail Spaces: Activates zone lighting based on customer traffic, reducing over-illumination during the day. 46-zone division enables targeted display lighting control.
  3. Public Buildings: Delivers “lights on/off on presence” automation in corridors and meeting rooms. Anti-tamper design ensures reliability in high-traffic areas.
  4. Education & Healthcare: Maintains consistent lighting/HVAC comfort in classrooms and clinics, with ambient light monitoring stabilizing visual conditions for learning and diagnosis.
