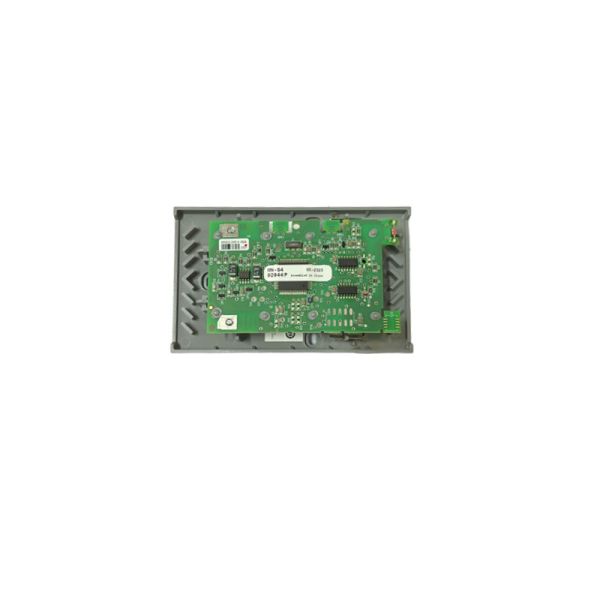

MN-S4-500 Schneider MicroNet VAV Sensor Setpoint Override Controller Mode
MN-S4-500 Schneider MicroNet VAV Sensor Setpoint Override Controller Mode
MN-S4-500 Schneider MicroNet VAV Sensor Setpoint Override Controller Mode
MN-S4-500 Schneider MicroNet VAV Sensor Setpoint Override Controller Mode
MN-S4-500 Schneider MicroNet VAV Sensor Setpoint Override Controller Mode
MN-S4-500 Schneider MicroNet VAV Sensor Setpoint Override Controller Mode
MN-S4-500 Schneider MicroNet VAV Sensor Setpoint Override Controller Mode
MN-S4-500 Schneider MicroNet VAV Sensor Setpoint Override Controller Mode
Specifications
Brand Name :
Schneider
Model Number :
MN-S4-500
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Alert System :
Real-time alerts via mobile app
Compatibility :
Works with major smart home platforms (Alexa, Google Home, Apple HomeKit)
Power Supply :
Battery powered / USB powered
Sensor Type :
Multi-functional environmental sensor
Installation Method :
Wall-mounted or tabletop
Description
MN-S4-500 Schneider MicroNet VAV Sensor Setpoint Override Controller Mode
The Schneider Electric MN-S4-500 is the direct replacement for the legacy MN-S4 MicroNet sensor, adding full Controller Mode Functions to the setpoint and override capabilities of the MN-S3-500. In addition to temperature sensing and local setpoint adjustment, the MN-S4-500 enables occupants to select HVAC system operating modes (Heat, Cool, Off, Auto) and fan speed levels (Low, Medium, High, Auto) directly at the zone level — without requiring BMS access.
Note: Ships without sensor cover; DCQC-150-SE required for complete MN-S4 replacement.
Technical Specifications
Part Number MN-S4-500
Replaces MN-S4 (requires DCQC-150-SE cover for complete replacement)
Sensor Type Precision Thermistor
Communication Protocol S-Link (proprietary MicroNet bus — power + data combined)
Power Supply Bus-powered via S-Link
Temperature Sensing Range 32 to 122 degF (0 to 50 degC)
Temperature Accuracy +/-2%
Humidity Operating Range 5% to 95% RH, non-condensing
Maximum Humidity Hysteresis +/-1.2% RH
Display Digital LCD, degF/degC selectable
System Modes Heat / Cool / Off / Auto
Fan Modes Off / On / Low / Medium / High / Auto
Controller Mode Functions Yes — full system mode + fan speed selection
Dimensions 4.5 x 2.8 x 1.0 in. (114 x 71 x 25 mm)
Mounting Direct wall / 2x4 electrical box / 1/4 DIN box / surface box
Cover Not included — DCQC-150-SE required for full MN-S4 replacement
Certifications UL, cUL, CE, CSA, FCC Part 15 Class B
Compatible Software EcoStruxure Building Operation
Key Features
  • Direct replacement for legacy MN-S4 MicroNet sensor
  • Full Controller Mode Functions with system and fan speed selection
  • Local setpoint adjustment and temperature sensing
  • Zone-level control without BMS access requirement
  • S-Link bus communication (power + data combined)
  • Digital LCD display with temperature unit selection
Applications
The MN-S4-500 is selected for premium commercial spaces — executive offices, conference rooms, hotel suites, and healthcare rooms — where occupants require granular local control over HVAC mode and fan speed. The controller mode capability eliminates most routine HVAC service calls in occupied spaces. In retrofit projects, it provides a seamless MN-S4 replacement with no controller reprogramming required.
