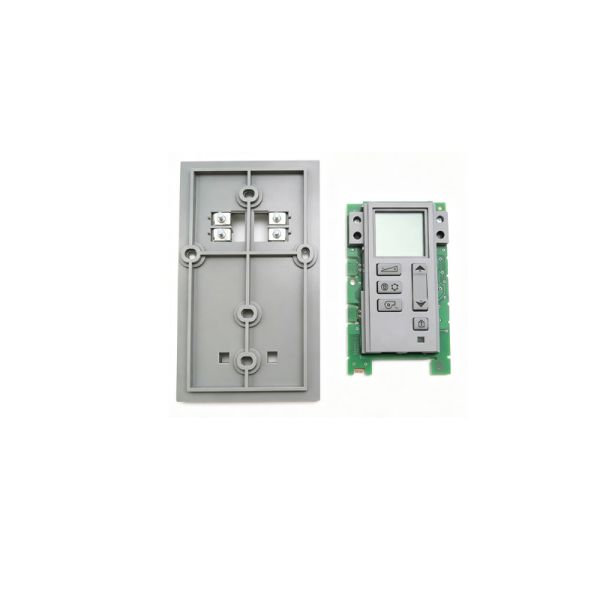

MN-S4HT-500 Schneider MicroNet Temp Humidity Sensor Fan Speed Controller
MN-S4HT-500 Schneider MicroNet Temp Humidity Sensor Fan Speed Controller
MN-S4HT-500 Schneider MicroNet Temp Humidity Sensor Fan Speed Controller
MN-S4HT-500 Schneider MicroNet Temp Humidity Sensor Fan Speed Controller
MN-S4HT-500 Schneider MicroNet Temp Humidity Sensor Fan Speed Controller
MN-S4HT-500 Schneider MicroNet Temp Humidity Sensor Fan Speed Controller
Specifications
Brand Name :
Schneider
Model Number :
MN-S4HT-500
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Response Time :
Less than 30 seconds
Installation Type :
Wall-mounted / Ceiling-mounted
Power Supply :
Battery powered / PoE / USB
Certifications :
CE / FCC / RoHS
Application :
Indoor air quality monitoring, Smart building management
Description
MN-S4HT-500 Schneider MicroNet Temp Humidity Sensor Fan Speed Controller
The Schneider Electric MN-S4HT-500 is the most fully-featured sensor in the MicroNet MN-S series, integrating temperature sensing, humidity sensing, setpoint adjustment, override control, full Controller Mode Functions, On/Off/Auto switching, and fan speed selection into a single compact wall-mounted unit. The thermoset polymer capacitive humidity element provides excellent long-term accuracy stability. All data is transmitted to the MicroNet VAV controller via S-Link bus — a two-wire power-and-data combined connection.
Designed for premium commercial environments where occupants require maximum local environmental control and humidity monitoring is operationally critical.
Technical Specifications
Part Number MN-S4HT-500
Temperature Sensor Precision Thermistor
Humidity Sensor Thermoset Polymer Capacitive element
Communication Protocol S-Link (proprietary MicroNet bus — power + data combined)
Power Supply Bus-powered via S-Link
Temperature Sensing Range 32 to 122°F (0 to 50°C)
Temperature Accuracy ±2%
Humidity Sensing Range 5% to 95% RH, non-condensing
Humidity Hysteresis ±1.2% RH maximum
Display Digital LCD — temperature + humidity
System Modes Heat / Cool / Off / Auto
Fan Modes Off / On / Low / Medium / High / Auto
On/Off/Auto Fan Control Yes
Controller Mode Functions Yes — full mode + fan speed selection
Dimensions 4.5 x 2.8 x 1.0 in. (114 x 71 x 25 mm)
Mounting Direct wall / 2x4 box / 1/4 DIN box / surface box
Cover Not included — DCQC-150-SE sold separately
Certifications UL, cUL, CE, CSA, FCC Part 15 Class B
Compatible Software EcoStruxure Building Operation
Key Features
  • Integrated temperature and humidity sensing
  • Setpoint adjustment and override control
  • Full Controller Mode Functions
  • On/Off/Auto switching capability
  • Multiple fan speed selection
  • Bus-powered via S-Link connection
  • Digital LCD display for temperature and humidity
  • Compact wall-mounted design
Applications
The MN-S4HT-500 is specified for luxury hotels, hospital patient rooms, research laboratories, and executive suites where occupant comfort, indoor air quality monitoring, and HVAC mode autonomy are all required simultaneously. The combined humidity + temperature display at the zone level reduces the need for separate handheld measurement instruments during facilities inspections.
