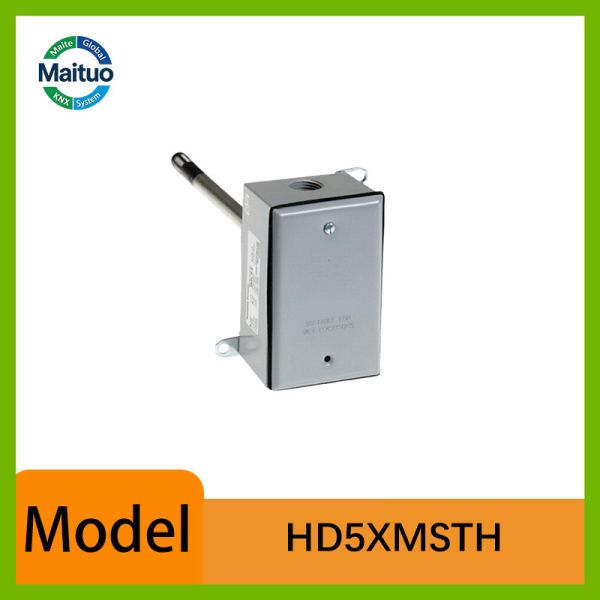

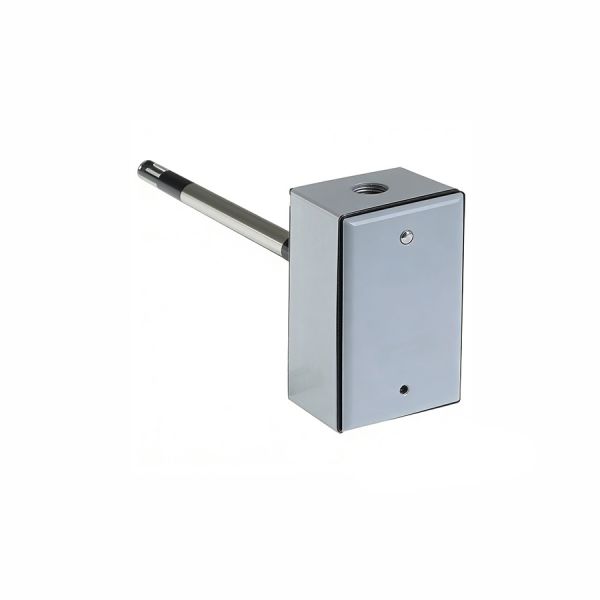

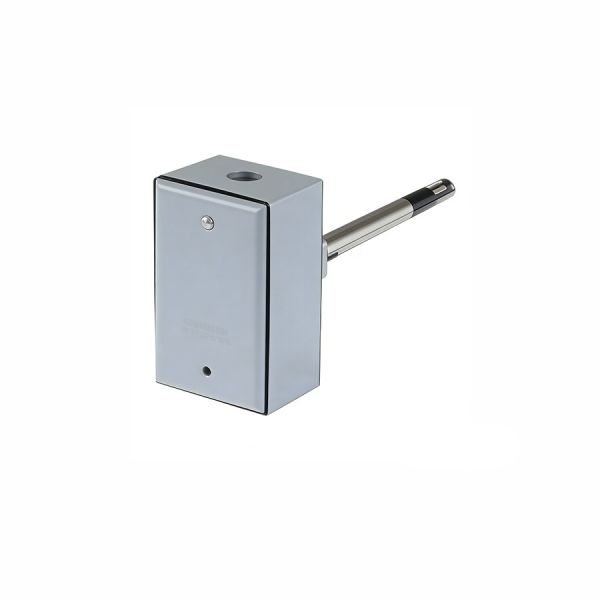

Schneider Duct Humidity Temp Sensor 4-20mA 10K Ohm Type3 HD5XMSTH New
Schneider Duct Humidity Temp Sensor 4-20mA 10K Ohm Type3 HD5XMSTH New
Schneider Duct Humidity Temp Sensor 4-20mA 10K Ohm Type3 HD5XMSTH New
Schneider Duct Humidity Temp Sensor 4-20mA 10K Ohm Type3 HD5XMSTH New
Schneider Duct Humidity Temp Sensor 4-20mA 10K Ohm Type3 HD5XMSTH New
Schneider Duct Humidity Temp Sensor 4-20mA 10K Ohm Type3 HD5XMSTH New
Schneider Duct Humidity Temp Sensor 4-20mA 10K Ohm Type3 HD5XMSTH New
Schneider Duct Humidity Temp Sensor 4-20mA 10K Ohm Type3 HD5XMSTH New
Specifications
Packaging Details :
Carton
Brand Name :
Schneider
MOQ :
5
Alert System :
Real-time alerts via mobile app
Measurement Parameters :
Temperature, Humidity, CO2, VOC, Light, Motion
Sensor Type :
Multi-functional environmental sensor
Power Supply :
Battery-powered / USB powered
Delivery Time :
7 Days
Material :
ABS plastic housing with matte finish
Certification :
CE RoHS
Place of Origin :
EU
Installation Method :
Wall-mounted or tabletop
Payment Terms :
T/T,Western Union
Model Number :
HD5XMSTH
Compatibility :
Works with major smart home platforms (Alexa, Google Home, Apple HomeKit)
Description
Schneider Duct Humidity Temp Sensor 4-20mA 10K Ohm Type3 HD5XMSTH New
The Schneider Electric Duct Humidity and Temperature Sensor (Part No. HD5XMSTH) delivers simultaneous 4-20mA humidity output (±5% accuracy) and 10K Ohm Type 3 NTC temperature resistance — designed for BAS controllers using Type 3 curve inputs in commercial HVAC duct monitoring.
Key Specifications
  • Part Number: HD5XMSTH
  • Humidity Output: 4-20mA, ±5% RH accuracy (0-100% RH)
  • Temperature Output: 10K Ohm NTC, Type 3 curve
  • Duct Probe: Stainless steel
  • Power Supply: 24 VAC/VDC
  • Enclosure: IP54 duct-mount housing
  • Compatible: BAS/HVAC controllers with 10K Type 3 analogue input
Applications
Interchangeable with the HD5XMSTN in systems where controllers are configured for 10K Type 3 sensor curves (Distech, and Schneider Continuum platforms). Ideal for AHU mixed air, supply air, and return air duct monitoring in commercial offices, hotels, and industrial facilities with strict humidity management requirements.
Brand new, original Schneider Electric product.
