MN-S3-500 Schneider MicroNet VAV Sensor Setpoint Override LCD Display
MN-S3-500 Schneider MicroNet VAV Sensor Setpoint Override LCD Display
MN-S3-500 Schneider MicroNet VAV Sensor Setpoint Override LCD Display
MN-S3-500 Schneider MicroNet VAV Sensor Setpoint Override LCD Display
MN-S3-500 Schneider MicroNet VAV Sensor Setpoint Override LCD Display
MN-S3-500 Schneider MicroNet VAV Sensor Setpoint Override LCD Display
Specifications
Brand Name :
Schneider
Model Number :
MN-S3-500
Certification :
CE RoHS
Place of Origin :
EU
MOQ :
5
Payment Terms :
T/T,Western Union
Delivery Time :
7 Days
Packaging Details :
Carton
Currentrating :
10A
Mounting :
DIN-rail mounting
Mountingtype :
DIN Rail
Type :
Electrical Switch Actuator
Installation Method :
Standard 35mm DIN rail mounting
Protection :
Electrical isolation between segments
Load Capacity :
250VA per channel
Description
MN-S3-500 Schneider MicroNet VAV Sensor Setpoint Override LCD Display

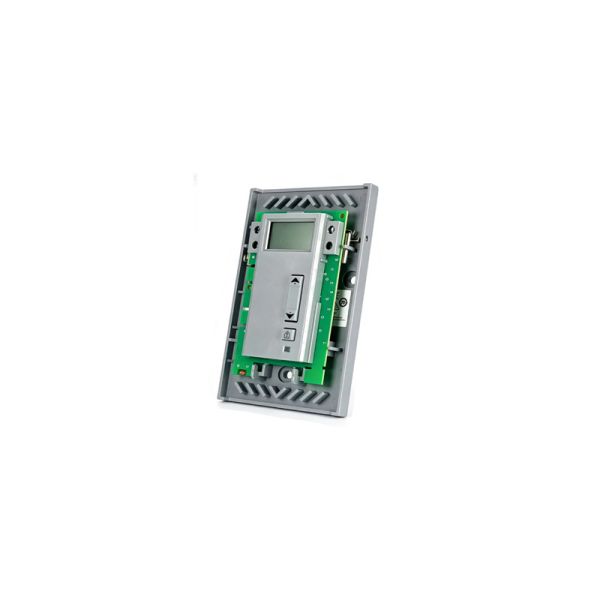

The Schneider Electric MN-S3-500 (MicroNet series, formerly Barber-Colman) is a wall-mounted digital room temperature sensor combining a precision thermistor with a three-button interface and LCD display, providing occupants with local setpoint adjustment and override control for VAV HVAC zones. It communicates with MicroNet VAV box controllers via the S-Link proprietary bus — a two-wire power-and-data combined link that eliminates the need for a separate power supply at the sensor. The self-compensating temperature conversion algorithm eliminates field calibration, and the unit supports selectable degF/degC display. Ships without sensor cover; DCQC-150-SE available separately.
Technical Specifications
Part Number MN-S3-500
Sensor Type Precision Thermistor
Communication Protocol S-Link (proprietary MicroNet bus — power + data combined)
Power Supply Bus-powered via S-Link
Temperature Sensing Range 32 to 122 degF (0 to 50 degC)
Temperature Accuracy +/-2%
Humidity Operating Range 5% to 95% RH, non-condensing
Maximum Humidity Hysteresis +/-1.2% RH
Display Digital LCD, degF/degC selectable
Keypad 3-button interface
System Modes Heat / Cool / Off / Auto
Fan Modes Off / On / Low / Medium / High / Auto
Dimensions 4.5 x 2.8 x 1.0 in. (114 x 71 x 25 mm)
Mounting Direct wall / 2x4 electrical box / 1/4 DIN box / surface box
Cover Not included — DCQC-150-SE sold separately
Compatible Controllers MNL-V2R, MN-Flo, MN-Vx (full MicroNet series)
Certifications UL, cUL, CE, CSA, FCC Part 15 Class B
Compatible Software EcoStruxure Building Operation
Applications
The MN-S3-500 is ideal for commercial offices, classrooms, and hotel rooms where occupants need the ability to adjust zone temperature and initiate temporary overrides without contacting facility management. In retrofit HVAC upgrades, it replaces legacy MN-S3 sensors while maintaining full compatibility with existing MicroNet controller wiring and programming. It is one of the most widely stocked and replaced MicroNet sensors in North America.
Note: Sensor cover not included — DCQC-150-SE available separately.
