Specifications
Lighting solutions service :
Lighting and circuitry design
Input Voltage :
100-277V
Warranty :
5 Years
Output Current :
1.25A-6.67A
Output :
12V 24V 36V 48V
IP Rate :
IP67 IP65
Output Frequency :
50/60Hz
Dimming mode :
Triac Phase-Cut Dimmable/0-10v/1-10v/10v PWM/Resistance
Material :
Aluminium Case
Application :
Street Light, Tunnel Light, Wall Lamp,Spot Light
Efficiency :
89%
Warranty(Year) :
5-Year
Output Power :
60W 80W 96W
Place of Origin :
Guangdong, China
Brand Name :
KSPOWER
Model Number :
KS-100LW-xxP
Certification :
UL cUL CE Class 2 Class P ENEC Gs TYPE HL...
MOQ :
2 pieces
Price :
The price is negotiable
Output Type :
PWM
Payment Terms :
T/T
Supply Ability :
300000pcs/monthly
Delivery Time :
20-25 days
Packaging Details :
Brown box and Carton
Output Mode :
Pwm Output
Description
48V Output 96W Dimmable LED Driver IP67 Waterproof Shell
The KSPOWER - LP series triac dimmable LED driver (40W, 60W, 80W, 96W) provides a constant voltage solution with single channel operation. It accepts universal AC input voltage from 100V to 277V, with output voltage options of 12V, 24V, 36V, or 48V, compatible with most AC wall dimmers including Lutron and Leviton. The Class 2 dimming power transformer features a low-profile aluminum case suitable for dry and damp locations, making it ideal for LED strips, signage, billboards, and landscape lighting. With 2K frequency PWM output and IP65 waterproof rating, this phase dimmable LED driver comes with a 5-year warranty and delivers outstanding dimming performance.
Key Features
  • Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
  • Single Channel & Constant Voltage mode
  • Output Voltage: 12V/24V/36V/48V
  • Driver Type: Class 2 Class P
  • Enclosure: LISTED Enclosure with input and output wire
  • Dimming: Triac/Phase-cut, PWM, 0/1-10V or MLV/ELV Resistance Dimmable Available
  • Environmental: Dry and Damp locations
  • Wiring Compartments with Knock-Outs for Clean and Easy Installation
  • Current Limiting Overload Protection
  • Flicker-Free operation
  • Smooth Ripple Free Output Voltage
  • IP67 Rated Enclosure for Indoor and Outdoor Use
  • 5-Year Warranty
  • Certifications: UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL

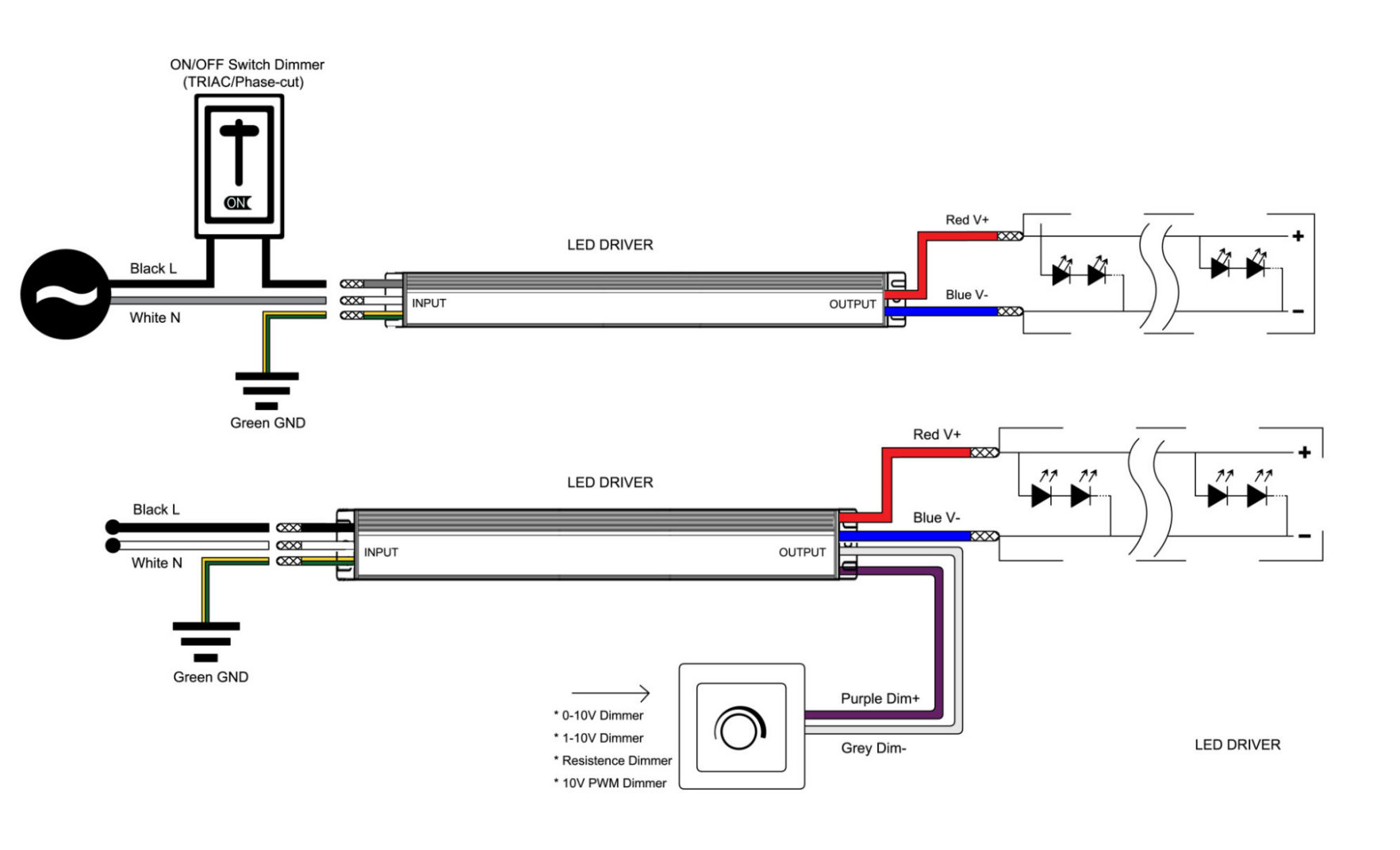

Dimming Connection Diagram
48V Output 96W Universal AC Input Dimmable LED Driver with IP67 Waterproof Aluminium Case 48V Output 96W Universal AC Input Dimmable LED Driver with IP67 Waterproof Aluminium Case
Technical Specifications
Dimming Type Series Power Model (xx=output voltage) Output voltage Output current Input voltage Size
5 in 1 dimming LP 30W KS-30LW-xxP 12V/24V/36V/48V 2.5A | 1.25A | 0.83A | 0.62A 100~277V 50/60Hz 270*32*24.5mm
40W KS-40LW-xxP 12V/24V/36V/48V 3.33A | 1.66A | 1.11A | 0.83A 100~277V 50/60Hz 270*32*24.5mm
60W KS-60LW-xxP 12V/24V/36V/48V 5A | 2.5A | 1.67A | 1.25A 100~277V 50/60Hz 310*32*24.5mm
80W KS-80LW-xxP 12V/24V/36V/48V 6.66A | 3.33A | 2.22A | 1.66A 100~277V 50/60Hz 310*32*24.5mm
96W KS-96LW-24P 12V/24V/36V/48V / | 4A | / | / 100~277V 50/60Hz 355*32*24.5mm
100W KS-100LW-xxP 12V/24V/36V/48V 8.33A | 4.16A | 2.78A | 2.08A 100~277V 50/60Hz 355*32*24.5mm
Any custom label/package/case is acceptable. We provide OEM and ODM services.

FQA
.UL/cUL listed,5-year warranty
.IP65 waterproof,indoor & outdoor
.100% burn-in tested
.OEM/ODM:custom voltage,cable,label

Why choose us?
.Triac/0-10V/1-10V PWM/Resistance dimming/Non-dimming,multiple dimmable function combinations are available.
.Suitable for forward & reverse phase dimming(MLV/ELV)
.Slim shape,suitable for tighter spaces
.Input voltage 100-277V,12V24V36V48V output voltage optional,and 30-100W power range
.Glue filling process,heat dissipation,waterproof and moisture-proof
.Hige efficiency and energy saving ,high PFC,flicker-free
.Approved UL/cUL Class2 FCC CE GS ENEC RoHS cert.
