300W 5 In 1 Dimming IP65 Rated LED Driver for Dimmable Power Supply
300W 5 In 1 Dimming IP65 Rated LED Driver for Dimmable Power Supply
300W 5 In 1 Dimming IP65 Rated LED Driver for Dimmable Power Supply
300W 5 In 1 Dimming IP65 Rated LED Driver for Dimmable Power Supply
300W 5 In 1 Dimming IP65 Rated LED Driver for Dimmable Power Supply
300W 5 In 1 Dimming IP65 Rated LED Driver for Dimmable Power Supply
300W 5 In 1 Dimming IP65 Rated LED Driver for Dimmable Power Supply
300W 5 In 1 Dimming IP65 Rated LED Driver for Dimmable Power Supply
300W 5 In 1 Dimming IP65 Rated LED Driver for Dimmable Power Supply
300W 5 In 1 Dimming IP65 Rated LED Driver for Dimmable Power Supply
Specifications
Lighting solutions service :
Lighting and circuitry design
Input Voltage :
100-277V
Protection :
OCP, OVP, SCP, OTP
Application :
LED Strip Light,Pendants, Linears,Cove Lights
Output :
12V
Output Frequency :
50/60Hz
Output Power :
300W
Warranty :
5 years
Efficiency :
≥90%
Warranty(Year) :
5-Year
Brand Name :
KSPOWER
Model Number :
KS-12300a-M#
Certification :
UL FCC CE ROHS SAA CLASS 2 CLASS P etc.
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
The price is negotiable
Payment Terms :
T/T
Supply Ability :
300000pcs/month
Delivery Time :
20-25 days
Packaging Details :
Small box and Cartons
Output Type :
PWM or DC
IP Rate :
IP65
Description
12V 5x60W(300W) 5 In 1 Dimming Class 2 Lighting LED Driver

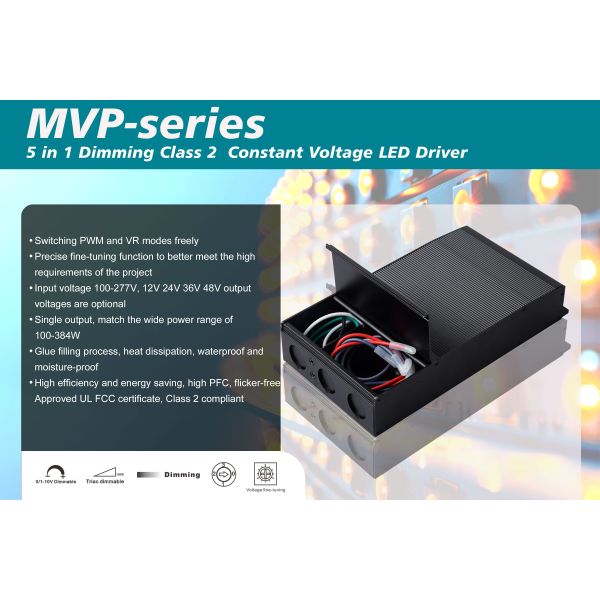

The KSPOWER MVP series 5 IN 1 dimmable LED driver 12V 5X60W(300W) features a black aluminum case with universal AC input voltage range from 100V-277VAC. This constant voltage LED driver is certified to meet UL cUL Class 2, Class P, and CE safety approvals. With US Patent technology, this 12V dimmable driver provides power solutions for LED strips, signage, billboards, and landscape lighting applications.
Key Features

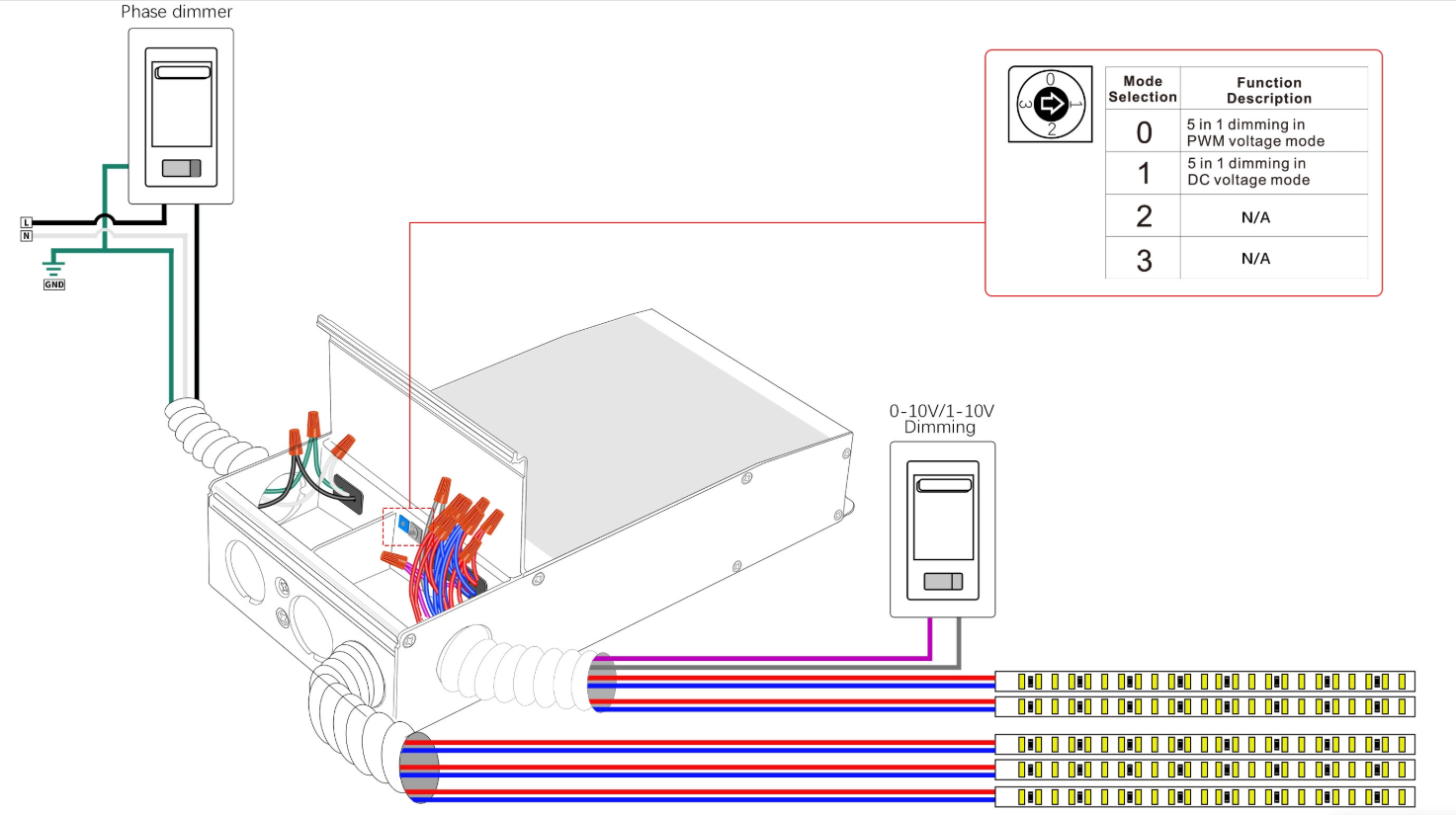

  • PWM or Voltage Reduction output selectable
  • 5-Ways Universal Dimming Functions optional:
    • 5 in 1 dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, 10V PWM and potentiometer dimming
    • Triac dimming: TRIAC/phase, ELV, MLV dimming
    • 4 in 1 dimming: 0-10V, 1-10V, 10V PWM and potentiometer
    • Non-dimming option available
  • Super compact aluminum case design
  • UL/cUL CE Class 2 CLASS P FCC RoHS LPS certified
  • NEMA 3R rated for indoor or outdoor use
  • Switch to dual-color temperature LED strips with 100%-0.01% dimming flicker-free
  • Auto-Reset Protection for input/output overvoltage, overcurrent, over temperature, over power, and short circuit protection
Specifications
Model KS-12300a-M#
Output Voltage 12V
Rated current * Channel 5.0A*5
Rated Power 300W
Ripple & Noise (Max) 200mVp-p
Voltage Accuracy ±2.0%
Linear Adjustment Rate ±0.5%
Load Adjustment Rate ±0.5%
Start Rise Time 1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC
Hold Time 10ms/115VAC, 230VAC
Input Voltage Range 100 ~ 277VAC
Frequency Range 47 ~ 63Hz
Power Factor PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC, Full load
Total Harmonic Distortion THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC)
Efficiency Vin:115VAC ≧91.56%
Efficiency Vin:230VAC ≧94.63%
AC Current 3.7A
Inrush Current Cold start 75A(width=350us measured at 50% l peak)/230Vac
Leakage Current < 1 mA
No Load/Standby Power Consumption < 4.0W
Over Current Protection 95~110% Constant current limit, load abnormal condition can be removed after automatic recovery
Short Circuit Protection Burp mode, load abnormal conditions can be removed after automatic recovery
Over Voltage Protection 13~16V
Over Temperature Protection Turn off the output voltage, restart and resume
Working Temperature T case=-40 ~ +50℃
Max Case Temperature T case=+90℃
Working Humidity 20 ~ 95% RH, non-condensing
Storage Temperature, Humidity -40 ~ +90℃, 10 ~ 95% RH
Temperature Coefficient ±0.03%/℃ (0 ~60℃)
Vibration 10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes
Safety Standard UL8750 & UL1310
Withstand Voltage I/P-O/P.1.88KVac
Isolation Resistance I/P-O/P.100MΩ/500VDC/25℃/70%RH
EMC EMISSION Confirms to FCC
Technical Specifications
Dimming Style Series Power Input voltage Output voltage & Output current Size
5 in 1 dimming MVP 100W 100~277V 50/60Hz 4.16A*2 (12V), 2.08A*2 (24V), 1.38A*2 (36V), 1.04A*2 (48V) 199*103*40mm
180W 100~277V 50/60Hz 5A*3 (12V) 216*113*40mm
192W 100~277V 50/60Hz 4A*2 (24V), 2.67A*2 (36V), 2A*2 (48V) 216*113*40mm
240W 100~277V 50/60Hz 5A*4 (12V) 248*123*40mm
288W 100~277V 50/60Hz 4A*3 (24V), 2.67A*3 (36V), 2A*3 (48V) 248*123*40mm
300W 100~277V 50/60Hz 5A*5 (12V) 248*123*40mm
384W 100~277V 50/60Hz 4A*4 (24V), 2.67A*4 (36V), 2A*4 (48V) 248*123*40mm
Custom labeling, packaging, and cases are available. We provide OEM and ODM services.

FQA

.UL/cUL listed,5-year warranty
.IP65 waterproof,indoor & outdoor
100% burn-in tested
.OEM/ODM:custom voltage,cable,label

Why choose us ?
.Switching PWM Voltage and DC voltage modes freely
. 5 in 1 dimmable functions,multiple dimming combinations are available
.Input voltage 100-277V,12V 24V 36V 48V output voltages are optional
.Single output,match the wide power range of 40-400W
.Glue filling process,heat dissipation,waterproof and moisture-proof
.High efficiency and energy saving ,High PFC,flicker-free
.Patent Design and structure
.Approved UL FCC certificate
