Specifications
Lighting solutions service :
Lighting and circuitry design
Input Voltage :
100-277V
Protection :
OCP, OVP, SCP, OTP
Application :
LED Strip Light,Pendants, Linears,Cove Lights
Output :
24V36V48V
Output Frequency :
50/60Hz
Output Power :
384W
Warranty :
5 years
Efficiency :
≥90%
Warranty(Year) :
5-Year
Brand Name :
KSPOWER
Model Number :
KS-xx384a-M#
Certification :
UL FCC CE ROHS SAA CLASS 2 CLASS P etc.
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
The price is negotiable
Payment Terms :
T/T
Supply Ability :
300000pcs/month
Delivery Time :
20-25 days
Packaging Details :
Small box and Cartons
Output Type :
PWM or DC
IP Rate :
IP65
Description
24V/36V/48V 4x96W(384W) 5 In 1 Dimming UL Class 2 LED Driver
The KSPOWER MVP series 5 IN 1 dimmable LED driver 4X96W(384W) is a black, universal AC input voltage power supply with a range from 100V-277VAC. This Constant Voltage LED Driver is certified to meet UL cUL Class 2, Class P, and CE safety approvals, with output voltage options of 24V, 36V, or 48V. Featuring a low-profile aluminum case with US Patent, this dimmable power supply provides reliable solutions for LED strips, signage, billboards, and landscape lighting applications.
384W 5 In 1 Dimming IP65 Rated LED Driver for LED Strip Lights and Pendants
Key Features

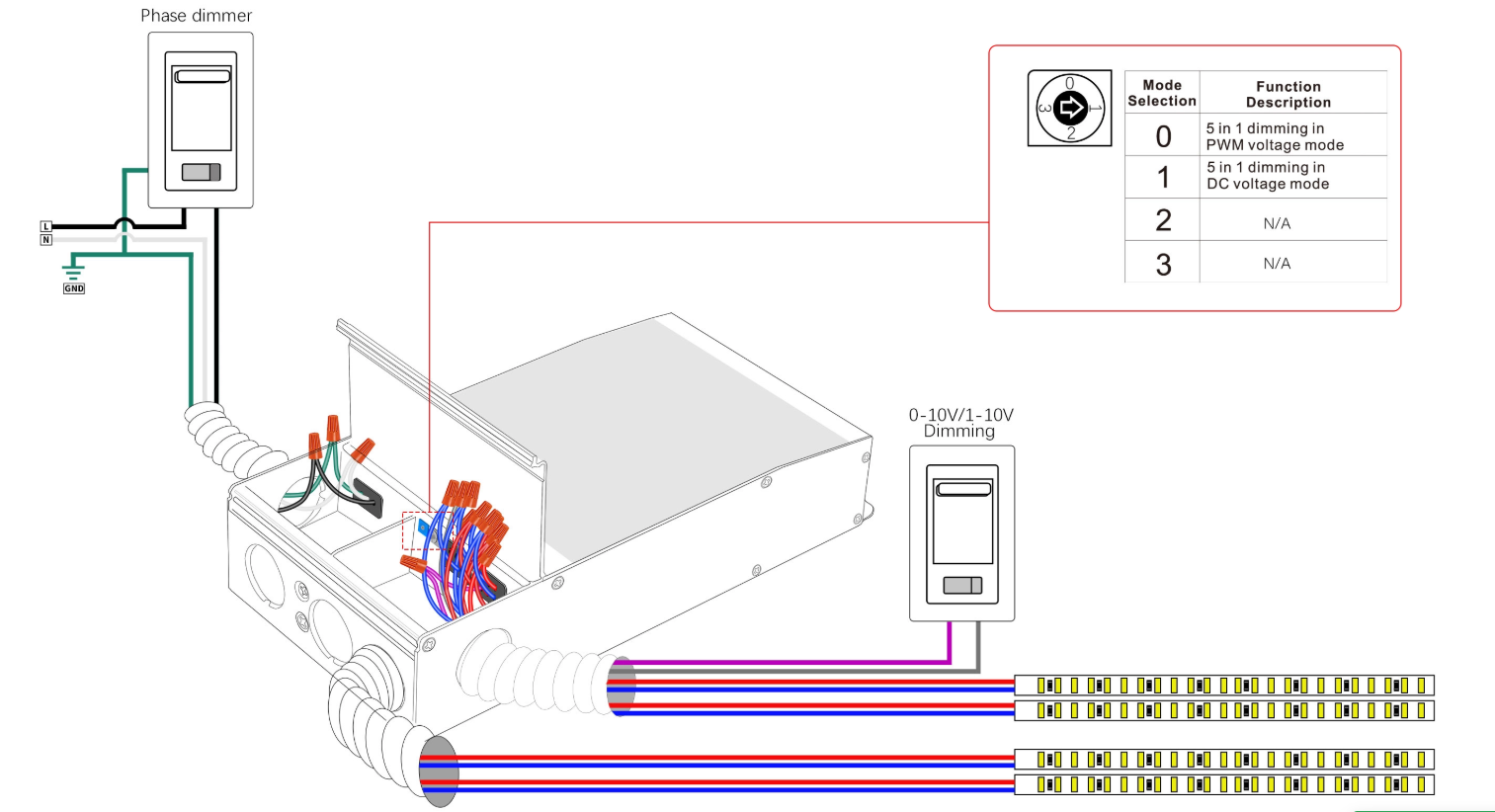

  • PWM or Voltage Reduction output selectable
  • 4-Ways Universal Dimming Functions optional:
    • 5 in 1 dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, 10V PWM and potentiometer dimming
    • Triac dimming: TRIAC/phase, ELV, MLV dimming
    • 4 in 1 dimming: 0-10V, 1-10V, 10V PWM and potentiometer
    • Non-dimming
  • Super compact aluminum case design
  • UL/cUL CE Class 2 CLASS P FCC RoHS LPS certified
  • NEMA 3R rated for indoor or outdoor use
  • Switch to dual-color temperature LED strips with 100%-0.01% dimming flicker-free
  • Auto-Reset Protection for input/output overvoltage, overcurrent, overtemperature, over power, and short circuit protection
Technical Specifications
Model KS-24384a-M# KS-36384a-M# KS-48384a-M#
Output Voltage 24V 36V 48V
Rated current × Channel 4.0A×4 2.67A×4 2.0A×4
Rated Power 384W 384W 384W
Ripple & Noise (Max) 250mVp-p 250mVp-p 250mVp-p
Voltage Accuracy ±2.0% ±2.0% ±2.0%
Linear Adjustment Rate ±0.5% ±0.5% ±0.5%
Load Adjustment Rate ±0.5% ±0.5% ±0.5%
Start Rise Time 1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC
Hold Time 10ms/115VAC, 230VAC
Input Voltage Range 100 ~ 277VAC
Frequency Range 47 ~ 63Hz
Power Factor PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC, Full load
Total Harmonic Distortion THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC)
Efficiency Vin:115VAC ≧91.56% ≧92.06% ≧92.56%
Efficiency Vin:230VAC ≧94.63% ≧95.13% ≧95.63%
AC Current 4.75A
Inrush Current Cold start 75A(width=350us measured at 50% l peak)/230Vac
Leakage Current < 1 mA
No Load/Standby Power Consumption < 4.5W
Over Current Protection 95~110% Constant current limit, load abnormal condition can be removed after automatic recovery
Short Circuit Protection Burp mode, load abnormal conditions can be removed after automatic recovery
Over Voltage Protection 26~32V 39~47V 52~63V
Over Temperature Protection Turn off the output voltage, restart and resume
Working Temperature T case=-40 ~ +50℃
Max Case Temperature T case=+90℃
Working Humidity 20 ~ 95% RH, non-condensing
Storage Temperature, Humidity -40 ~ +90℃, 10 ~ 95% RH
Temperature Coefficient ±0.03%/℃ (0 ~60℃)
Vibration 10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes
Safety Standard UL8750 & UL1310
Withstand Voltage I/P-O/P.1.88KVac
Isolation Resistance I/P-O/P.100MΩ/500VDC/25℃/70%RH
EMC EMISSION Confirms to FCC
Product Series Comparison
Dimming Style Series Power Input voltage Output voltage & Output current Size
5 in 1 dimming MVP 100W 100~277V 50/60Hz 4.16A×2 (12V) / 2.08A×2 (24V) / 1.38A×2 (36V) / 1.04A×2 (48V) 199×103×40mm
180W 5A×3 (12V) 216×113×40mm
192W 4A×2 (24V) / 2.67A×2 (36V) / 2A×2 (48V) 216×113×40mm
240W 5A×4 (12V) 248×123×40mm
288W 4A×3 (24V) / 2.67A×3 (36V) / 2A×3 (48V) 248×123×40mm
300W 5A×5 (12V) 248×123×40mm
384W 4A×4 (24V) / 2.67A×4 (36V) / 2A×4 (48V) 248×123×40mm
Custom labeling, packaging, and cases are available. We provide OEM and ODM services.
FQA
.UL/cUL listed,5-year warranty
.IP65 waterproof,indoor & outdoor
100% burn-in tested
.OEM/ODM:custom voltage,cable,label

Why choose us ?
.Switching PWM Voltage and DC voltage modes freely
. 5 in 1 dimmable functions,multiple dimming combinations are available
.Input voltage 100-277V,12V 24V 36V 48V output voltages are optional
.Single output,match the wide power range of 40-400W
.Glue filling process,heat dissipation,waterproof and moisture-proof
.High efficiency and energy saving ,High PFC,flicker-free
.Patent Design and structure
.Approved UL FCC certificate
