Specifications
Lighting solutions service :
Lighting and circuitry design
Application :
LED Strip Light,Pendants, Linears,Cove Lights
Output :
24V36V48V
Output Frequency :
50/60Hz
Output Power :
288W
Input Voltage :
100-277V
Protection :
OCP, OVP, SCP, OTP
Warranty :
5 years
Efficiency :
≥90%
Warranty(Year) :
5-Year
Brand Name :
KSPOWER
Model Number :
KS-xx288a-M#
Certification :
UL FCC CE ROHS SAA CLASS 2 CLASS P etc.
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
The price is negotiable
Payment Terms :
T/T
Supply Ability :
300000pcs/month
Delivery Time :
20-25 days
Packaging Details :
Small box and Cartons
Output Type :
PWM or DC
IP Rate :
IP65
Description
24V/36V/48V 3x96W(288W) Class 2 Universal 5-in-1 Dimming LED Driver
The KSPOWER MVP Series 5-in-1 dimmable LED driver delivers exceptional versatility with its 3-way 96W (288W total) multi-channel design, universal 100-277VAC input, and constant-voltage output options of 24V, 36V, and 48V. Housed in a patented low-profile aluminum enclosure in black finish, this driver supports MLV/ELV, Triac/Phase-cut, 0-10V, and PWM/VR dimming technologies. With a high PFC rating of up to 0.95, NEMA 3R weather protection, and UL cUL Class 2 Class P certifications, it is engineered for indoor or outdoor LED strip, signage, billboard, and landscape lighting applications.
288W Output Power 5-in-1 Dimming LED Driver with IP65 Rating for Universal Lighting Applications
Key Features
  • PWM or Voltage Reduction output Selectable

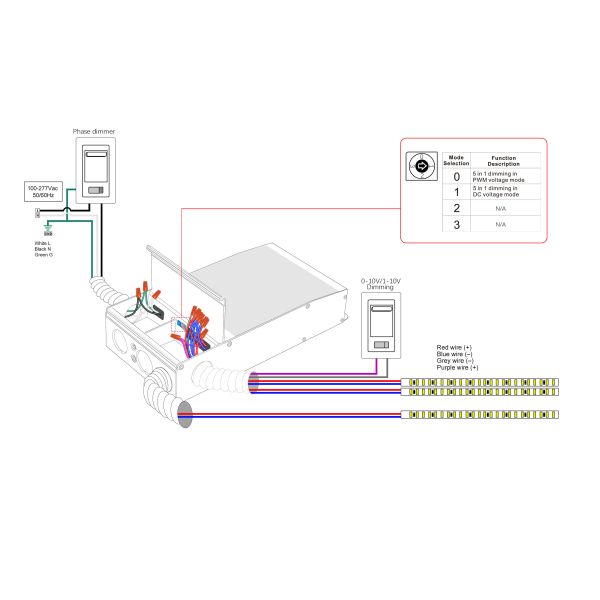

  • 3-Ways Universal Dimming Functions optional:
    • 5 in 1 dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, 10V PWM and potentiometer dimming
    • Triac dimming: TRIAC/phase, ELV, MLV dimming
    • 4 in 1 dimming: 0-10V, 1-10V, 10V PWM and potentiometer
    • Non-dimming
  • Super compact Aluminum case
  • UL/cUL CE Class 2 CLASS P FCC RoHS LPS certified
  • NEMA 3R rated for Indoor or Outdoor Use
  • Switch to dual-color temperature LED Strips with 100%-0.01% dimming flicker-free
  • Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
Specifications
Model KS-24288a-M# KS-36288a-M# KS-48288a-M#
Output Voltage 24V 36V 48V
Rated current *Channel 4.0A*3 2.67A*3 2.0A*3
Rated Power 288W 288W 288W
Ripple & Noise(Max) 250mVp-p 250mVp-p 250mVp-p
Voltage Accuracy ±2.0% ±2.0% ±2.0%
Linear Adjustment Rate ±0.5% ±0.5% ±0.5%
Load Adjustment Rate ±0.5% ±0.5% ±0.5%
Start Rise Time 1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC
Hold Time 10ms/115VAC, 230VAC
Input Voltage Range 100 ~ 277VAC
Frequency Range 47 ~ 63Hz
Power Factor PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.9/277VAC, Full load
Total Harmonic Distortion THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC)
Efficiency Vin:115VAC ≧91.56% ≧92.06% ≧92.56%
Efficiency Vin:230VAC ≧94.63% ≧95.13% ≧95.63%
AC Current 3.55A
Inrush Current Cold start 75A(width=350us measured at 50% l peak)/230Vac
Leakage Current < 1 mA
No Load/Standby Power Consumption < 4.5W
Over Current Protection 95~110% Constant current limit, load abnormal condition can be removed after automatic recovery
Short Circuit Protection Burp mode, load abnormal conditions can be removed after automatic recovery
Over Voltage Protection 26~32V 39~47V 52~63V
Over Temperature Protection Turn off the output voltage, restart and resume
Working Temperature T case=-40 ~ +50℃
Max Case Temperature T case=+90℃
Working Humidity 20 ~ 95% RH, non-condensing
Storage Temperature,Humidity -40 ~ +90℃, 10 ~ 95% RH
Temperature Coefficient ±0.03%/℃ (0 ~60℃)
Vibration 10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes
Safety Standard UL8750 & UL1310
Withstand Voltage I/P-O/P.1.88KVac
Isolation Resistance I/P-O/P.100MΩ/500VDC/25℃/70%RH
EMC EMISSION Confirms to FCC
Technical Specifications
Dimming Style Series Power Input voltage Output voltage & Output current Size
5 in 1 dimming MVP 100W 100~277V
50/60Hz		 4.16A*2 2.08A*2 1.38A*2 1.04A*2 199*103*40mm
180W 5A*3 / / / 216*113*40mm
192W / 4A*2 2.67A*2 2A*2 216*113*40mm
240W 5A*4 / / / 248*123*40mm
288W / 4A*3 2.67A*3 2A*3 248*123*40mm
300W 5A*5 / / / 248*123*40mm
384W / 4A*4 2.67A*4 2A*4 248*123*40mm
Custom labeling, packaging, and cases are available. We provide OEM and ODM services.

FQA
Q: Are the products UL/cUL listed and what is the warranty period?
A: UL/cUL listed,5‑year warranty
Q: What is the waterproof rating? Can it be used indoors and outdoors?
A: IP65 waterproof,indoor & outdoor
Q: Have your products passed burn‑in testing?
A: 100% burn‑in tested
Q: Do you support OEM & ODM? What can be customized?
A: OEM/ODM:custom voltage,cable,label
Why choose us ?
.Switching PWM Voltage and DC voltage modes freely
. 5 in 1 dimmable functions,multiple dimming combinations are available
.Input voltage 100-277V,12V 24V 36V 48V output voltages are optional
.Single output,match the wide power range of 40-400W
.Glue filling process,heat dissipation,waterproof and moisture-proofS
.High efficiency and energy saving ,High PFC,flicker-free
.Patent Design and structure
.Approved UL FCC certificate
