300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty
300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty
300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty
300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty
300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty
300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty
300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty
300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty
300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty
300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty
Specifications
Lighting solutions service :
Lighting and circuitry design
Input Voltage :
100-277V
Material :
Aluminum Case
Product Name :
led waterproof driver
IP Rate :
IP65
Output :
12V 24V 36V 48V
Output Frequency :
50/60Hz
Efficiency :
≥90%
Power :
60-320W
Application :
LED Strip Light,Pendants, Linears,Cove Lights
Protection :
OCP, OVP, SCP, OTP
Warranty(Year) :
5-Year
Output Power :
60-320W
Model Number :
KS-300A-24P
Payment Terms :
T/T
Supply Ability :
300000/monthly
Delivery Time :
20-25 days
Packaging Details :
Brown box and Carton
Output Type :
PWM
Warranty :
5 years
Place of Origin :
Guangdong, China
Brand Name :
KSPOWER
Certification :
UL FCC CE ROHS SAA CLASS P etc.
MOQ :
2 pieces
Price :
The price is negotiable
Description
Customizable 300W LED Light Driver Waterproof LED Driver IP65 AC 260V DC 12V

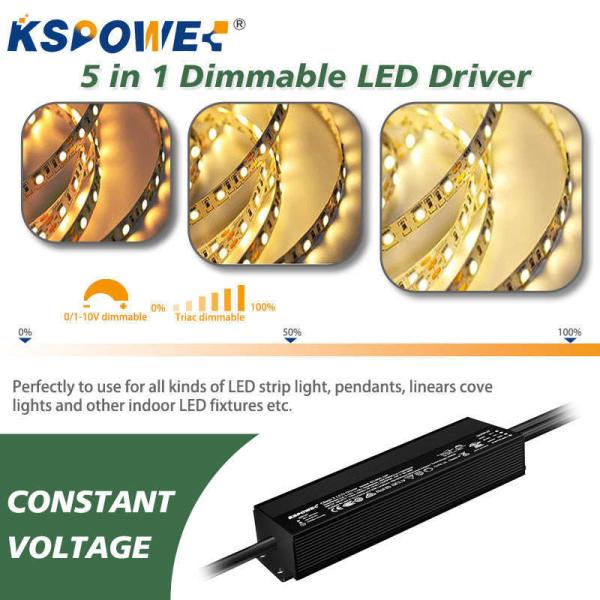

12V 24V 36V 48V 120W Class P driver, 0/1-10V, 10V PWM, Resistance dimming 4 in 1 dimmable LED driver is constant voltage solution, and the perfect choice for under cabinet lighting and other residential and commercial lighting fixtures.
Applications

300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty

Product Description
KS-300W is a versatile 300W 5-in-1 universal dimming driver that accepts 100-277VAC input voltage and provides 12V 24V 36V 48V constant voltage output. KS-300W delivers flicker free dimming to 0% on all dimming systems including 0-10V, 1-10V, Triac-Phase cut, PWM, Resistance, MLV, ELV and Incandescent. The high efficiency of the driver and sophisticated overload protection enables the electronics to run cooler and significantly improve reliability while extending product life.
The compact metal case is dry/damp location listed and IP65 rated, making it suitable for a wide range of indoor/outdoor architectural, commercial, industrial, and residential lighting applications. KS-300W is available with or without integrated junction boxes on both the input and output side that have two knockouts each.
300W AC100-277V Dimmable LED Driver DC24V Customizable Waterproof LED Driver with 5-Year Warranty
Features
  • Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
  • Single Channel & Constant Voltage mode
  • Output Voltage: 12Volt/24Volt/36Volt/48Volt
  • Driver Type: Class 2 Class P
  • Enclosure: LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
  • Dimming: PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
  • Environmental: Dry and Damp
  • Wiring Compartments with Knock-Outs for Clean and Easy Installation
  • Current Limiting Overload Protection
  • Flicker-Free
  • Smooth Ripple Free Output Voltage
  • IP65 Rated Enclosure for Indoor and Outdoor Use
  • 5-Years Warranty
  • UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note: Any custom label/package/case is acceptable, provide OEM and ODM service
Technical Specifications
Dimming Type Series Power Model (xx=output voltage) Output voltage Output current Input voltage Size
5 in 1 dimming HPJ 40W KS-40AW-xxP 12V24V/36V/48V 3.3A | 1.67A | 1.11A | 0.83A 100~277V 50/60Hz 297*58*36mm
60W KS-60AW-xxP 5A | 2.5A | 1.67A | 1.25A 297*58*36mm
80W KS-80AW-xxP 6.67A | 3.33A | 2.22A | 1.67A 297*58*36mm
96W KS-96AW-24P / | 4A | / | / 322*58*36mm
100W KS-100AW-xxP 8.33A | 4.16A | 2.78A | 2.08A 322*58*36mm
120W KS-120AW-xxP 10A | 5A | 3.33A | 2.5A 322*58*36mm
150W KS-150AW-xxP 12.5A | 6.25A | 4.16A | 3.13A 343*68*41mm
180W KS-180AW-12P 15A | / | / | / 343*68*41mm
200W KS-200AW-xxP 16.66A | 8.33A | 5.55A | 4.16A 343*68*41mm
240W KS-240AW-xxP 20A | 10A | 6.66A | 5A 367*68*41mm
300W KS-300AW-24P / | 12.5A | / | / 367*68*41mm
320W KS-320AW-xxP / | 13.33A | 8.88A | 6.66A 367*68*41mm
FQA

Q: Are your LED drivers UL/cUL listed? How long is the warranty?
A: UL/cUL listed,5-years warranty


Q: Is this driver IP65 waterproof and suitable for indoor and outdoor use?
A: IP65 waterproof,indoor & outdoor


Q: Do you conduct burn-in test for all products before shipment?
A: 100% burn-in tested


Q: Do you support OEM & ODM? What specifications can be customized?
A: OEM/ODM:custom voltage,cable,label


Why choose us?

5 in 1 dimmable functions,Triac/0-10V/1-10V/10V PWM/Resistance dimming

.Non-dimming and multiple dimming functions,a variety of dimming combinations are available

.Suitable for forward & reverse phase dimming(MLV/ELV)

.Removable junction box to meet different market requirements

.Input voltage 100-277V,12V24V36V48V output voltage optional,and 40-320W power range

.We provide OEM/ODM services and can customize any part

.Glue filling process,heat dissipation,waterproof and moisture-proof

.High efficiency and energy saving,high PFC,flicker-free.

.Approved UL/cUL Class2 FCC CE GS-ENEC RoHS cert
