100W Triac & ELV Dimmable LED Driver with 100-277VAC Input and 12V 24V 36V 48V Output for Universal Compatibility
100W Triac & ELV Dimmable LED Driver with 100-277VAC Input and 12V 24V 36V 48V Output for Universal Compatibility
100W Triac & ELV Dimmable LED Driver with 100-277VAC Input and 12V 24V 36V 48V Output for Universal Compatibility
100W Triac & ELV Dimmable LED Driver with 100-277VAC Input and 12V 24V 36V 48V Output for Universal Compatibility
100W Triac & ELV Dimmable LED Driver with 100-277VAC Input and 12V 24V 36V 48V Output for Universal Compatibility
100W Triac & ELV Dimmable LED Driver with 100-277VAC Input and 12V 24V 36V 48V Output for Universal Compatibility
100W Triac & ELV Dimmable LED Driver with 100-277VAC Input and 12V 24V 36V 48V Output for Universal Compatibility
100W Triac & ELV Dimmable LED Driver with 100-277VAC Input and 12V 24V 36V 48V Output for Universal Compatibility
Specifications
Phase :
Single Phase
Input Voltage :
100V-277Vac
Output Mode :
Pwm Output
Application :
Street Light, Tunnel Light, Wall Lamp,Spot Light
Type :
Constant Voltage
Product Name :
100 Watts Transformer Outdoor Ultra Slim LED Power Supply
Material :
aluminum case
Payment Terms :
T/T
Supply Ability :
300000pcs/monthly
Delivery Time :
20-25 days
Packaging Details :
Brown box and Carton
IP Rate :
IP67
Warranty :
5 Years
Output :
12V 24V 36V 48V
application :
Lighting
Coil Structure :
TOROIDAL
Efficiency :
95%
Place of Origin :
Guangdong, China
Brand Name :
KSPOWER
Model Number :
KS-100LW-xxP
Certification :
UL cUL Class P CE ENEC Gs TYPE HL...
MOQ :
2 pieces
Price :
The price is negotiable
Coil Number :
AUTOTRANSFORMER
Description
Triac & ELV Dimmable 100W LED Driver
Universal Compatibility for Indoor Use

100-277 VAC 12V 24V 36V 48V Output IP67 Outdoor LED Driver 30-100W LED Transformer with dimmable / non-dimmable options.

Key Features
  • Universal AC input voltage 100-277VAC
  • High efficiency up to 91% with built-in active PFC function
  • Single channel & constant voltage mode with PWM style output
  • Comprehensive protection: OCP, OVP, SCP, OTP
  • Limited Power Source compliant
  • Certifications: cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

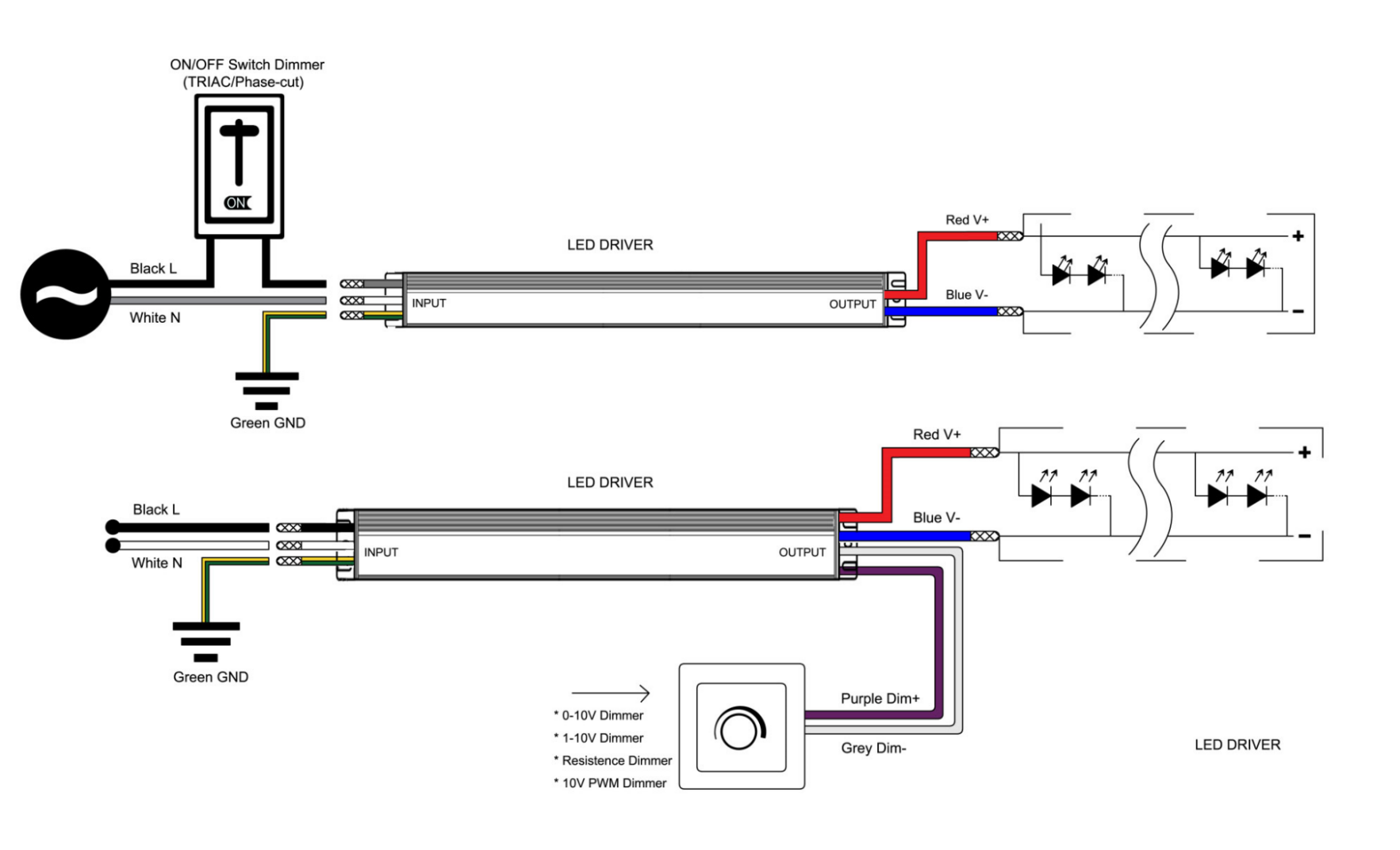

Function Options
  • Non-dimmable
  • Triac/Phase-cut Dimmable
  • 4 in 1 dimmable (0-10V, 1-10V, PWM, resistance)
  • 5 in 1 dimmable (0-10V, 1-10V, TRIAC, PWM, resistance)
Product Specifications
  • Typical lifetime > 50,000 hours
  • 5 years warranty
  • Available with or without integrated Junction Box
  • IP65/IP67 Rated Enclosure for Indoor and Outdoor Use
  • Wiring compartments with knock-outs for clean and easy installation
Note: Custom label/package/case options available. OEM and ODM service provided.
100W Triac & ELV Dimmable LED Driver with 100-277VAC Input and 12V 24V 36V 48V Output for Universal Compatibility
Technical Specifications
Dimming Type Series Power Model (xx=output voltage) Output current (12V/24V/36V/48V) Input voltage Size
5 in 1 dimming LP 30W KS-30LW-xxP 2.5A / 1.25A / 0.83A / 0.62A 100~277V 50/60Hz 270*32*24.5mm
40W KS-40LW-xxP 3.33A / 1.66A / 1.11A / 0.83A 270*32*24.5mm
60W KS-60LW-xxP 5A / 2.5A / 1.67A / 1.25A 310*32*24.5mm
80W KS-80LW-xxP 6.66A / 3.33A / 2.22A / 1.66A 310*32*24.5mm
100W KS-100LW-xxP 8.33A / 4.16A / 2.78A / 2.08A 355*32*24.5mm


FQA
.UL/cUL listed,5-years warranty
.IP65 waterproof,indoor & outdoor
100% burn-in tesed
.OEM/ODM:custom voltage,cable,label
Why choose us?
.Triac/0-10V/1-10V/ PWM/Resistance dimming/Non-dimming,multiple dimmable function combinations are available
.Suitable for forward & reverse phase dimming(MLV/ELV)
.Slim shape,suitable for tighter spaces
.Input voltage 100-277V,12V24V36V48V output voltage optional,and 30-100W power range
.Glue filling process,heat dissipation,waterproof and moisture-proof
.High efficiency and energy saving,high PFC,flicker-free
.Approved UL/cUL Class2 FCC CE GS ENEC RoHS cert
