Specifications
Brand Name :
KSPOWER
Model Number :
KS-xx100a-M#
Certification :
UL FCC CE ROHS SAA CLASS 2 CLASS P etc.
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
$29.69-32.58/pieces
Payment Terms :
T/T
Supply Ability :
300000pcs/month
Delivery Time :
20-25 days
Packaging Details :
Small box and Cartons
Warranty(Year) :
5-Year
Lighting solutions service :
Lighting and circuitry design
Output Power :
100W
Output Type :
PWM or DC
Input Voltage :
100-277V
Output Frequency :
50/60Hz
Application :
LED Strip Light,Pendants, Linears,Cove Lights
Warranty :
5 years
Protection :
OCP, OVP, SCP, OTP
IP Rate :
IP65
Efficiency :
≥90%
Output :
12V24V36V48V
Description

2-Way 12V/ 24V/ 36V/ 48V 50W(100W) Universal 5-in-1 Dimming Class 2 LED Transformer

KSPOWER MVP Series with a universal AC input of 100–277V and high power-factor efficiency, the MVP Series 50W×2-way CV LED driver is built for applications that demand superior dimming performance. The patented aluminum case protects the internal components while delivering stable output across 12V/24V/36V/48V options. Supported dimming protocols—MLV, ELV, Triac, Phase-cut, 0-10V, PWM—ensure wide compatibility with modern control systems. Certified to UL Class 2 and NEMA 3R rated, it is suitable for both exterior and interior LED lighting systems.

100W Output Universal 100-277V Input IP65 Rated 5-in-1 Dimming LED Transformer for Dimmable LED Driver

Key Features

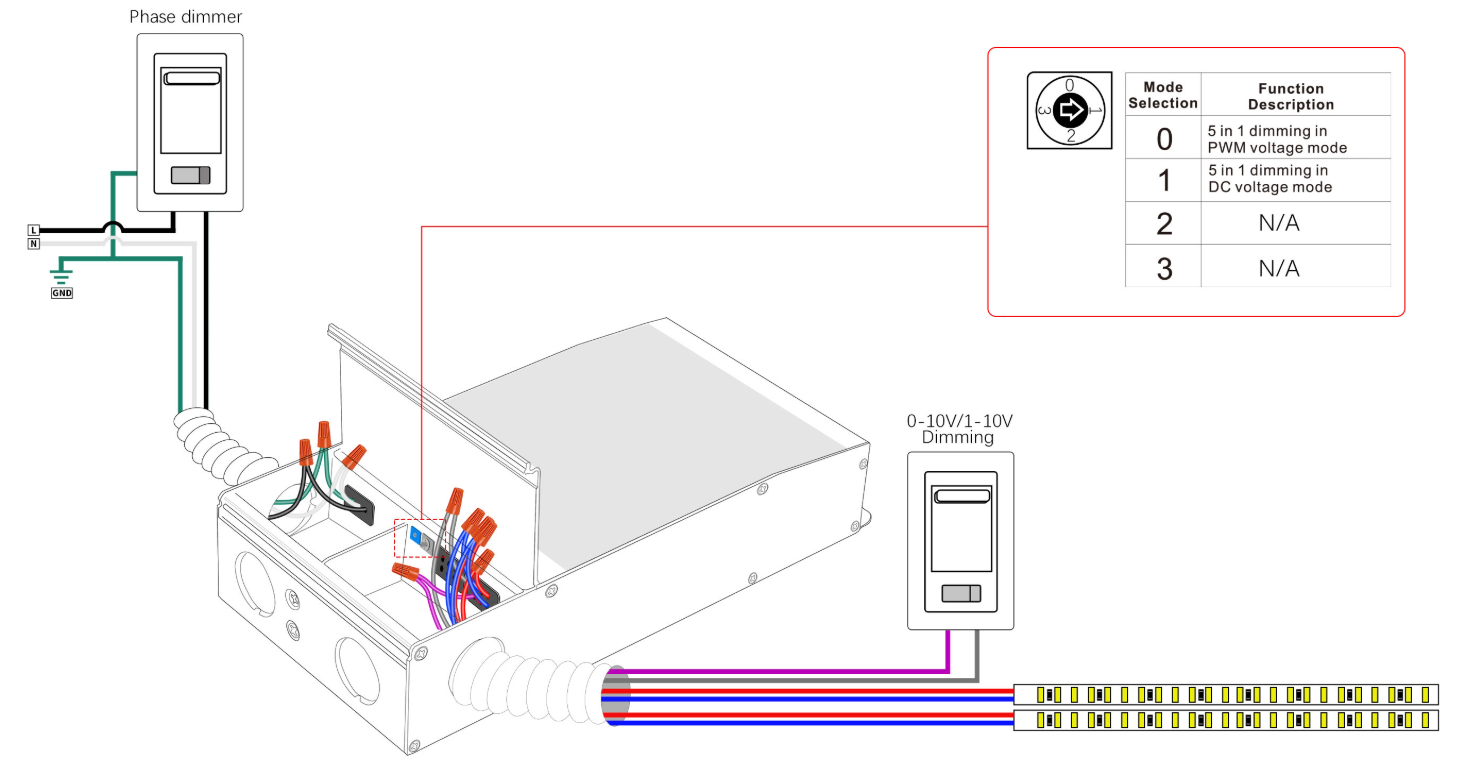

  • Switching PWM and DC voltage freely

  • ．PWM or Voltage Reduction output Selectable
    ．2-Ways Universal Dimming Functions optional

  • Super compact Aluminum case

    ． UL/cUL CE Class 2 CLASS P FCC RoHS LPS

    ． NEMA 3R rated - Indoor or Outdoor Use

    ． Switch to color temperature LED Strips 100%-0.01% dimming flicker- free

    ． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection


    MODEL

    KS-12100a-M#

    KS-24100a-M#

    KS-36100a-M#

    KS-48100a-M#

    OUTPUT

    Output Voltage

    12V

    24V

    36V

    48V

    Rated current x Channel

    4.16A x 2

    2.08A x 2

    1.38A x 2

    1.04A x 2

    Rated power

    100W

    100W

    100W

    100W

    Ripple & Noise (max.)

    200mVp-p

    250mVp-p

    250mVp-p

    250mVp-p

    Voltage accuracy

    ±2.0%

    ±2.0%

    ±2.0%

    ±2.0%

    Linear adjustment rate

    ±0.5%

    ±0.5%

    ±0.5%

    ±0.5%

    Load adjustment rate

    ±0.5%

    ±0.5%

    ±0.5%

    ±0.5%

    Start, rise time

    1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC

    Hold time

    10ms/115VAC, 230VAC

    INPUT

    Voltage range

    100 ~ 277VAC

    Frequency range

    47 ~ 63Hz

    Power factor

    PF≧0 98/115VAC, PF≧0 95/230VAC , PF≧0.9 /277VAC, Full load

    Total harmonic distortion

    THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC)

    Efficiency

    Vin: 115VAC

    ≧90.55%

    ≧90.78%

    ≧91.28%

    ≧91.78%

    Vin: 230VAC

    ≧91.38%

    ≧91.56%

    ≧92.06%

    ≧92.56%

    AC current

    1.25A

    Inrush current

    Cold start 75A(width=350us measured at 50% l peak)/230Vac

    Leakage current

    < 1 m A

    No load/ standby power consumption

    < 3.6W

    Protection

    Over current

    95 ~ 110%

    95 ~ 110% Constant current limit, load abnormal condition can be removed

    after automatic recovery

    Short circuit

    Burp mode, load abnormal conditions can be removed after automatic recovery

    Over voltage

    13 ~ 16 V

    26 ~ 32 V

    39 ~ 47 V

    52 ~ 63V

    Turn off the output voltage, restart and resume

    Over temperature

    Turn off the output voltage, restart and resume

    Environment

    Working Temp

    T case=-40 ~ +50℃

    Max.Case Temp

    T case=+90℃

    Working Humidity

    20 ~ 95% RH, non-condensing

    Storage Temp.,Humidity

    -40 ~ +90℃, 10 ~ 95% RH

    Temp.Coefficient

    ±0.03%/℃ (0 ~60℃)

    Vibration

    10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes

    Safety & EMC

    Safety standards:UL8750+UL1310

    Withstand voltage:I/P-O/P:1.88KVac

    Isolation resistance:I/P-O/P:100MΩ/500VDC/25℃/70%RH

    EMC EMISSION:Confirms to FCC


  • 100W Output Universal 100-277V Input IP65 Rated 5-in-1 Dimming LED Transformer for Dimmable LED Driver
Technical Specifications
Dimming Style Series Power Input voltage Output voltage&
Output current		 Size
12V 24V 36V 48V
5 in 1 dimming MVP 40W 100~277V
50/60Hz		 3.3A 2.5A 1.1A 0.83A 199*103*40mm
60W 100~277V
50/60Hz		 5A 2.5A 1.67A 1.25A 199*103*40mm
80W 100~277V
50/60Hz		 6.67A 3.33A 2.22A 1.67A 199*103*40mm
96W 100~277V
50/60Hz		 8A 4A 2.66A 2A 199*103*40mm
100W 100~277V
50/60Hz		 8.33A 4.16A 2.78A 2.08A 199*103*40mm
120W 100~277V
50/60Hz		 10A 5A 3.33A 2.5A 216*113*40mm
150W 100~277V
50/60Hz		 12.5A 6.25A 4.16A 3.13A 216*113*40mm
200W 100~277V
50/60Hz		 16.67A 8.33A 5.55A 4.16A 216*113*40mm
240W 100~277V
50/60Hz		 20A 10A 6.66A 5A 248*123*40mm
300W 100~277V
50/60Hz		 25A 12.5A 8.33A 6.25A 248*123*40mm
360W 100~277V
50/60Hz		 30A 15A 10A 7.5A 248*123*40mm
400W 100~277V
50/60Hz		 / 16.67A 11.11A 8.33A 248*123*40mm
Custom labeling, packaging, and cases are available. We provide OEM and ODM services.
