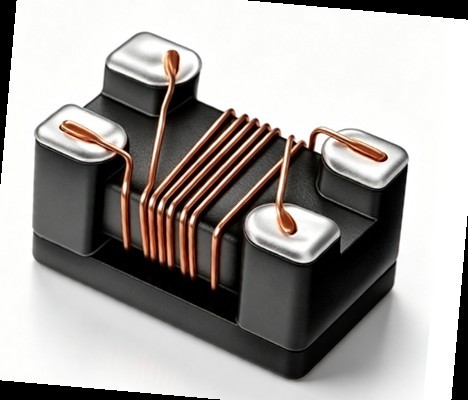

Bulk Chip Ferrite Bead 35-90Ω 0504 SMD Halogen Free
Bulk Chip Ferrite Bead 35-90Ω 0504 SMD Halogen Free
Specifications
Brand Name :
JYRF
Size :
0504
Packaging :
Tape & Reel
Model Number :
JY-SPB0504D Series
Mounting Type :
Surface Mount
Place of Origin :
China
Impedance Range :
35-90Ω
Certification :
RoHS Compliant
Product Type :
Multilayer Chip Ferrite Bead
Operating Temperature :
-40℃ to +125℃
Description

JY-SPB0504D Series Chip Ferrite Bead 35-90Ω 0504 SMD High Performance RoHS Compliant

Part Numbering System

Position Code Description
1 JYSPB Product code
2 0603 Product size
3 D Series type
4 900 Impedance code
5 P Tolerance: P±25% / N±30%
6 T Packaging: T tape & reel / B bulk
7 HF Environment: LF / HF / FP

Configuration and Dimensions

A 1.2 B 1.0 C 0.9 (unit: mm)

General Specifications

  • Operating temperature range: -40℃ to +125℃
  • Storage temperature: -10℃ to +40℃, R.H. 65% Max
  • Moisture sensitivity level: MSL 1
  • Rated DC current: temperature rise (ΔT) approx. 40℃ at Irms
  • RoHS compliant, lead-free and halogen-free available

Electrical Characteristics

Part Number Impedance Z (Ω) Test Freq. (MHz) DCR Max (Ω) Irms Max (A) Rated Voltage (V) Insulation Res. Min (MΩ)
JYSPB0504D350PTHF 35 100 0.18 0.43 20 10
JYSPB0504D900PTHF 90 100 0.35 0.28 50 10

Note: Measured at 25℃. Rated DC current based on temperature rise of approx. 40℃ at Irms.

Soldering Conditions

  • Reflow soldering (lead-free): preheat to 150℃; peak temperature 260℃ (max); reflow times ≤2; solder paste thickness 0.08mm optimal / 0.1mm max
  • Hand soldering: 20W iron with 1.0mm tip diameter; soldering time within 3 seconds

Packaging

Tape and reel packaging. Peel force: 20g-80g, peel speed 300mm/min±10%. Tape & Reel, 3000 pcs/reel.
