Customized 300-1000Ω 1008 0805 Ferrite Bead SMD Low Frequency
Customized 300-1000Ω 1008 0805 Ferrite Bead SMD Low Frequency
Specifications
Size :
1008
Model Number :
JY-SPB1008D Series
Packaging :
Tape & Reel
Place of Origin :
China
Mounting Type :
Surface Mount
Impedance Range :
300-1000Ω
Brand Name :
JYRF
Certification :
RoHS Compliant
Product Type :
Multilayer Chip Ferrite Bead
Operating Temperature :
-40℃ to +85℃
Description

JY-SPB1008D Series Chip Ferrite Bead 300-1000Ω 1008 SMD High Performance RoHS Compliant

Part Numbering System

Position Code Description
1 JYSPB Product code
2 0603 Product size
3 D Series type
4 900 Impedance code
5 P Tolerance: P±25% / N±30%
6 T Packaging: T tape & reel / B bulk
7 HF Environment: LF / HF / FP

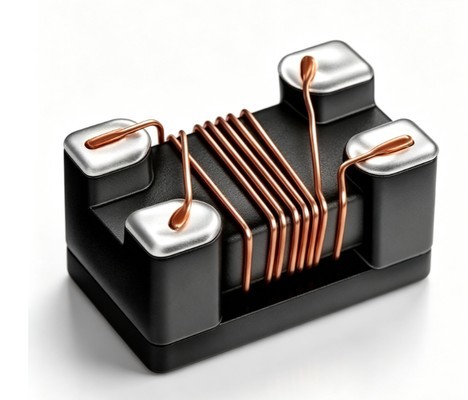

Configuration and Dimensions

A 2.5 B 2.0 C 1.2 (unit: mm)

General Specifications

  • Operating temperature range: -40℃ to +85℃
  • Storage temperature: -10℃ to +40℃, R.H. 65% Max
  • Moisture sensitivity level: MSL 2
  • Rated DC current: temperature rise (ΔT) approx. 40℃ at Irms
  • RoHS compliant, lead-free and halogen-free available

Electrical Characteristics

Part Number Impedance Z (Ω) Test Freq. (MHz) DCR Max (Ω) Irms Max (A) Rated Voltage (V) Insulation Res. Min (MΩ)
JYSPB1008D301PTHF 300 100 0.20 0.40 50 10
JYSPB1008D451PTHF 450 100 0.30 0.35 50 10
JYSPB1008D601PTHF 600 100 0.38 0.33 50 10
JYSPB1008D102PTHF 1000 100 0.50 0.24 50 10

Note: Measured at 25℃. Rated DC current based on temperature rise of approx. 40℃ at Irms.

Soldering Conditions

  • Reflow soldering (lead-free): preheat to 150℃; peak temperature 260℃ (max); reflow times ≤2; solder paste thickness 0.08mm optimal / 0.1mm max
  • Hand soldering: 20W iron with 1.0mm tip diameter; soldering time within 3 seconds

Packaging

Tape and reel packaging. Peel force: 20g-80g, peel speed 300mm/min±10%. Tape & Reel, 2000 pcs/reel.
