J30JB-13TJL90Q8-300 Micro Rectangular Connector 90 Degree Elbow Glass Sealed Aerospace Plug
J30JB-13TJL90Q8-300 Micro Rectangular Connector 90 Degree Elbow Glass Sealed Aerospace Plug
J30JB-13TJL90Q8-300 Micro Rectangular Connector 90 Degree Elbow Glass Sealed Aerospace Plug
J30JB-13TJL90Q8-300 Micro Rectangular Connector 90 Degree Elbow Glass Sealed Aerospace Plug
J30JB-13TJL90Q8-300 Micro Rectangular Connector 90 Degree Elbow Glass Sealed Aerospace Plug
J30JB-13TJL90Q8-300 Micro Rectangular Connector 90 Degree Elbow Glass Sealed Aerospace Plug
Specifications
Vibration :
10-2000Hz, 196m/s²
Relative Humidity :
Up to 95% RH at +40℃
Brand Name :
Jovelix
Supply Ability :
10000pcs per month
Insulation Resistance :
≥ 5000MΩ @ 100VDC
Mechanical Life (Mating Cycles) :
500 Cycles
Payment Terms :
L/C,T/T,Western Union
Rated Current :
3A
Model Number :
J30JB-13TJL90Q8-300
MOQ :
10pcs
Contact Resistance :
≤ 15mΩ
Place of Origin :
China
Delivery Time :
2-9weeks
Dielectric Withstanding Voltage :
300V
Operating Temperature Range :
-55℃ ~ +125℃
Price :
10$-500$
Packaging Details :
standard export package
Shock :
735m/s²
Certification :
AS9001
Acceleration :
735m/s²
Description
Glass-Sintered Gas-Sealed Rectangular Electrical Connector
Product Model

J30JB-nTJL90-Q8(n=5, 9, 11, 13, 15, 21, 25, 31, 37)

Note: The applicable wire gauge of the product is 0.1～0. 15mm², and the wire length is customized by the customer. The user shall specify the wire information in the model when selecting the type.Example: J30JB-9TJL90-Q8(0. 12 White L300), which indicates the product is equipped with 0. 12mm² white wire with an extension length of 300mm from the rear end.Technical documents shall be provided if special wiring requirements are needed.

J30JB-13TJL90Q8-300 Micro Rectangular Connector 90 Degree Elbow Glass Sealed Aerospace Plug

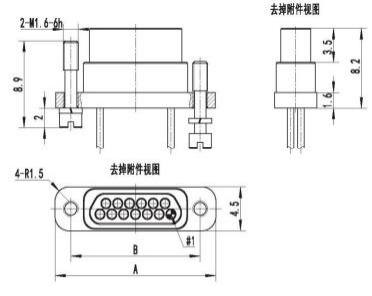

Product model A B Adapt to the plug model
J30JB-5TJL90-Q811.27.9J30JM1-5ZKH1-Q3
J30JB-9TJL90-Q813.710.44J30JM1-9ZKH1-Q3
J30JB-11TJL90-Q815.812.5J30JM1-11ZKH1-Q3
J30JB-13TJL90-Q817.313.9J30JM1-13ZKH1-Q3
J30JB-15TJL90-Q817.514.25J30JM1-15ZKH1-Q3
J30JB-21TJL90-Q821.318.06J30JM1-21ZKH1-Q3
J30JB-25TJL90-Q82420.6J30JM1-25ZKH1-Q3
J30JB-31TJL90-Q827.724.4J30JM1-31ZKH1-Q3
J30JB-37TJL90-Q831.528.2J30JM1-37ZKH1-Q3
