J30JB-25TJL-Q9 25Pin Straight Glass Sealed Micro Rectangular Aerospace Plug
J30JB-25TJL-Q9 25Pin Straight Glass Sealed Micro Rectangular Aerospace Plug
J30JB-25TJL-Q9 25Pin Straight Glass Sealed Micro Rectangular Aerospace Plug
J30JB-25TJL-Q9 25Pin Straight Glass Sealed Micro Rectangular Aerospace Plug
J30JB-25TJL-Q9 25Pin Straight Glass Sealed Micro Rectangular Aerospace Plug
J30JB-25TJL-Q9 25Pin Straight Glass Sealed Micro Rectangular Aerospace Plug
Specifications
Supply Ability :
10000pcs per month
Insulation Resistance :
≥ 5000MΩ @ 100VDC
Brand Name :
Jovelix
Shock :
735m/s²
Delivery Time :
2-9weeks
Rated Current :
3A
Mechanical Life (Mating Cycles) :
500 Cycles
MOQ :
10pcs
Packaging Details :
standard export package
Acceleration :
735m/s²
Place of Origin :
China
Certification :
AS9001
Relative Humidity :
Up to 95% RH at +40℃
Model Number :
J30JB-25TJL-Q9
Price :
10$-500$
Payment Terms :
L/C,T/T,Western Union
Operating Temperature Range :
-55℃ ~ +125℃
Dielectric Withstanding Voltage :
300V
Contact Resistance :
≤ 15mΩ
Vibration :
10-2000Hz, 196m/s²
Description
J30JB-nTJL-Q9 Glass-Sintered Gas-Sealed Rectangular Plug Connector

The J30JB-nTJL-Q9 Glass-Sintered Gas-Sealed Rectangular Plug Connector is designed for sealed electrical interconnection applications requiring compact structure, reliable performance, and customized wire termination. The model format is J30JB-nTJL-Q9, where n represents the contact quantity. Standard contact options include 5, 9, 11, 13, 15, 21, 25, 31, and 37 contacts.

This connector supports wire cross-sectional areas from 0.1 mm² to 0.15 mm², and the wire length can be customized according to customer installation requirements. To ensure accurate product selection and production, the wire specification must be included in the part number, including wire size, wire color, and wire length.

For example, J30JB-9TJL-Q9(0.12 White L300) indicates a 9-contact plug assembled with 0.12 mm² white wires and a 300 mm wire length. If the application requires special wiring arrangements, customized colors, different wire lengths, or non-standard cable routing, corresponding technical documents should be provided for confirmation before manufacturing.

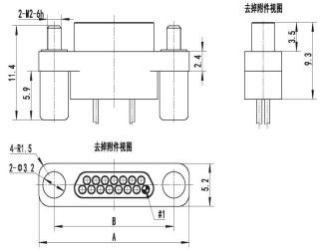

This product is suitable for sealed modules, precision electronic equipment, compact electrical systems, and applications requiring reliable customized wiring solutions. Overall dimensions should be confirmed according to the product drawing or dimensional reference.

J30JB-25TJL-Q9 25Pin Straight Glass Sealed Micro Rectangular Aerospace Plug
Model Number A B Matching Plug Part Number
J30JB-5TJL-Q9 14.76 10.46 J30JM1-5ZKH2-Q1 J30JM1-5ZKH2-Q2
J30JB-9TJL-Q9 17.3 13 J30JM1-9ZKH2-Q1 J30JM1-9ZKH2-Q2
J30JB-11TJL-Q9 18.57 14.27 J30JM1-11ZKH2-Q1 J30JM1-11ZKH2-Q2
J30JB-13TJL-Q9 19.8 15.5 J30JM1-13ZKH2-Q1 J30JM1-13ZKH2-Q2
J30JB-15TJL-Q9 21.1 16.8 J30JM1-15ZKH2-Q1 J30JM1-15ZKH2-Q2
J30JB-21TJL-Q9 24.9 20.6 J30JM1-21ZKH2-Q1 J30JM1-21ZKH2-Q2
J30JB-25TJL-Q9 27.4 23.1 J30JM1-25ZKH2-Q1 J30JM1-25ZKH2-Q2
J30JB-31TJL-O9 31.27 26.9 J30JM1-31ZKH2-Q1 J30JM1-31ZKH2-Q2
J30JB-37TJL-Q9 35.08 30.78 J30JM1-37ZKH2-Q1 J30JM1-37ZKH2-Q2
