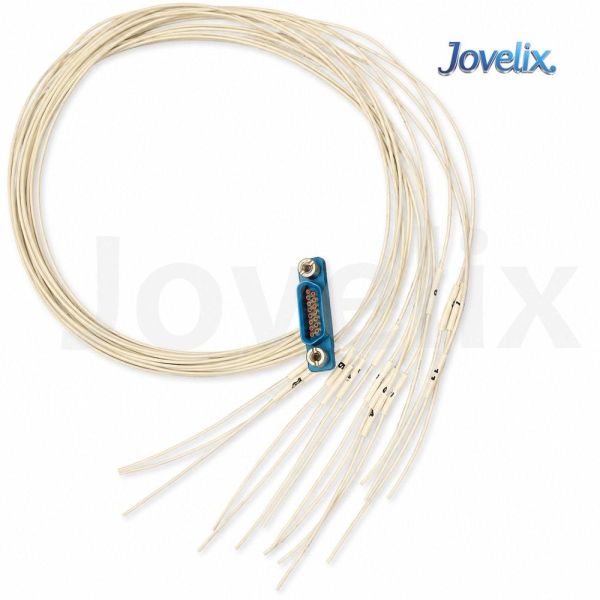

High Density Shielded 15-Core Micro Rectangular Socket, J30-15ZKP Aviation Electrical Connector
High Density Shielded 15-Core Micro Rectangular Socket, J30-15ZKP Aviation Electrical Connector
High Density Shielded 15-Core Micro Rectangular Socket, J30-15ZKP Aviation Electrical Connector
High Density Shielded 15-Core Micro Rectangular Socket, J30-15ZKP Aviation Electrical Connector
High Density Shielded 15-Core Micro Rectangular Socket, J30-15ZKP Aviation Electrical Connector
High Density Shielded 15-Core Micro Rectangular Socket, J30-15ZKP Aviation Electrical Connector
Specifications
Contact resistance :
≤ 10 mΩ
Insulation resistance :
≥ 5000 MΩ at room temperature
Brand Name :
Jovelix
Relative humidity :
up to 95% at 40℃
Vibration :
frequency 10–2000 Hz, acceleration 196 m/s²
Operating temperature :
-55℃ to +125℃
Place of Origin :
China
Shock :
acceleration 735 m/s², 11 ms
Model Number :
J30-15ZKP
Certification :
AS9001
Rated operating current :
3 A
Mechanical life :
500 cycles
Supply Ability :
10000pcs per month
Delivery Time :
2-9weeks
MOQ :
10pcs
Packaging Details :
standard export package
Price :
10$-500$
Payment Terms :
L/C,T/T,Western Union
Withstand voltage :
800 V at room temperature
Description
J30 Series Micro-Rectangular Electrical Connector

The J30 Series Micro-Rectangular Electrical Connector is a compact, lightweight, and high-density interconnect product designed in accordance with GJB2446. The male contacts adopt elastic stranded pins, commonly known as twist-pin contacts, which provide stable contact pressure, reliable electrical continuity, and excellent connection performance in miniaturized electrical circuit systems.

With a 1.27 mm contact pitch, this series achieves high-density contact arrangement while maintaining a small and lightweight connector structure. The product uses a plastic housing and is equivalent to the U.S. MD series, making it suitable for applications requiring compact dimensions, standardized structure, and reliable signal transmission.

The J30 Series is available in seven specifications, ranging from 9 pins to 51 pins, allowing flexible selection according to different circuit density and equipment design requirements. Modified rear-end structures are available for printed circuit board applications, supporting more convenient integration into PCB-based systems.

This connector series is mainly used for reliable electrical interconnection between internal system cables, between cables and printed circuit boards, and between printed circuit boards. It is especially suitable for applications that require high-density wiring, lightweight equipment design, miniaturized structure, and dependable performance under vibration and shock conditions.

Main Technical Features
Operating temperature -55℃ to +125℃
Relative humidity up to 95% at 40℃
Rated operating current 3 A
Contact resistance ≤ 10 mΩ
Insulation resistance ≥ 5000 MΩ at room temperature
Withstand voltage 800 V at room temperature
Vibration frequency 10–2000 Hz, acceleration 196 m/s²
Shock acceleration 735 m/s², 11 ms
Mechanical life 500 cycles


High Density Shielded 15-Core Micro Rectangular Socket, J30-15ZKP Aviation Electrical Connector

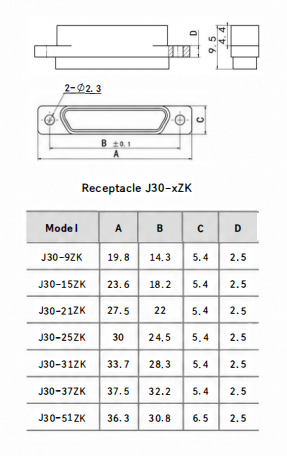

Contact arrangement (viewed from the plug mating surface)
