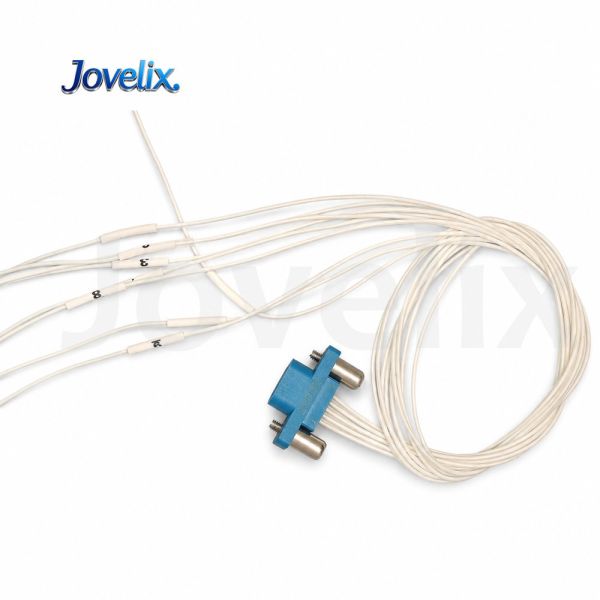

J30-9ZKL Aviation Electrical Connector,High Density Shielded 9-Core Micro Rectangular Socket
J30-9ZKL Aviation Electrical Connector,High Density Shielded 9-Core Micro Rectangular Socket
J30-9ZKL Aviation Electrical Connector,High Density Shielded 9-Core Micro Rectangular Socket
J30-9ZKL Aviation Electrical Connector,High Density Shielded 9-Core Micro Rectangular Socket
J30-9ZKL Aviation Electrical Connector,High Density Shielded 9-Core Micro Rectangular Socket
J30-9ZKL Aviation Electrical Connector,High Density Shielded 9-Core Micro Rectangular Socket
Specifications
Mechanical life :
500 cycles
Model Number :
J30-9ZKL
Relative humidity :
up to 95% at 40℃
Contact resistance :
≤ 10 mΩ
Packaging Details :
standard export package
Withstand voltage :
800 V at room temperature
Rated operating current :
3 A
Price :
10$-500$
Certification :
AS9001
Place of Origin :
China
Operating temperature :
-55℃ to +125℃
Vibration :
frequency 10–2000 Hz, acceleration 196 m/s²
Delivery Time :
2-9weeks
Brand Name :
Jovelix
MOQ :
10pcs
Payment Terms :
L/C,T/T,Western Union
Shock :
acceleration 735 m/s², 11 ms
Supply Ability :
10000pcs per month
Insulation resistance :
≥ 5000 MΩ at room temperature
Description
High-Density J30 Micro-Rectangular Connector for Lightweight Electronic Systems

The J30 Series Micro-Rectangular Electrical Connector is developed for electronic equipment that requires high contact density, compact size, lightweight construction, and reliable interconnection performance. Compliant with GJB2446 and equivalent to the U.S. MD series, this connector provides a practical solution for miniature electrical circuit systems and space-limited equipment platforms.

The connector uses twist-pin male contacts, offering elastic contact performance and stable electrical connection during repeated mating. Its fine 1.27 mm contact pitch helps increase wiring density while reducing installation space, making the J30 Series suitable for compact modules, control equipment, communication devices, instrumentation, and other precision electronic systems.

The product lineup includes seven pin-count options from 9 pins to 51 pins, enabling users to select suitable models for different signal transmission and circuit layout needs. For PCB applications, modified rear-end structures are available, allowing the connector to meet different board mounting and installation requirements.

The J30 Series supports reliable interconnection between cable-to-cable, cable-to-PCB, and PCB-to-PCB configurations. It can withstand harsh operating conditions such as strong vibration and shock, making it especially valuable for systems requiring lig

htweight design, limited installation space, and stable electrical performance.

Main Technical Features
Operating temperature -55℃ to +125℃
Relative humidity up to 95% at 40℃
Rated operating current 3 A
Contact resistance ≤ 10 mΩ
Insulation resistance ≥ 5000 MΩ at room temperature
Withstand voltage 800 V at room temperature
Vibration frequency 10–2000 Hz, acceleration 196 m/s²
Shock acceleration 735 m/s², 11 ms
Mechanical life 500 cycles



J30-9ZKL Aviation Electrical Connector,High Density Shielded 9-Core Micro Rectangular Socket

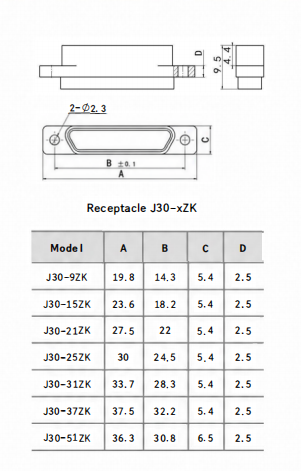

Contact arrangement (viewed from the plug mating surface)

J30-9ZKL Aviation Electrical Connector,High Density Shielded 9-Core Micro Rectangular Socket
